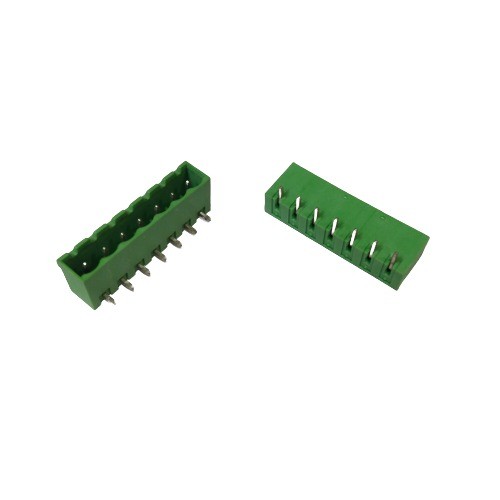

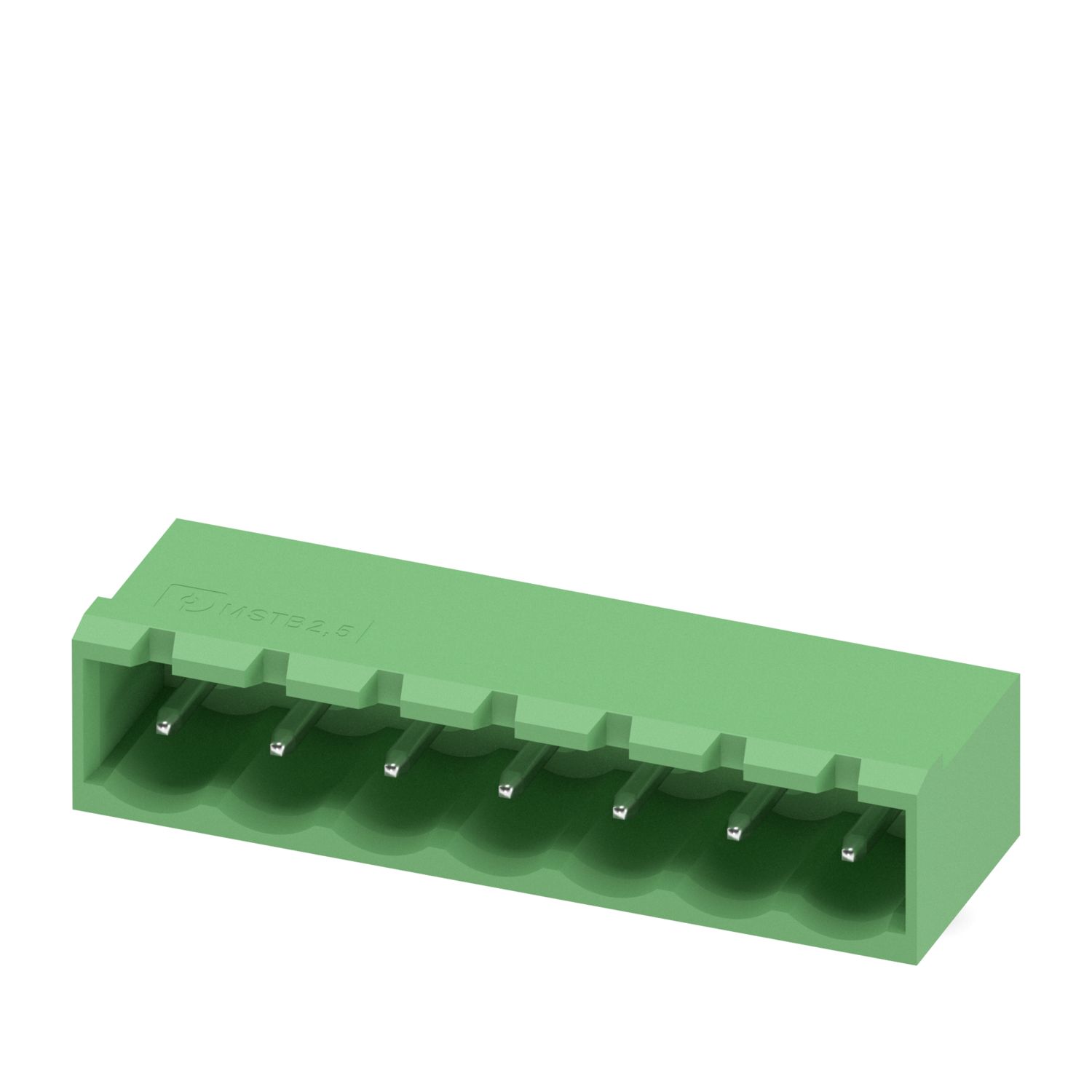

MSTBA 2.5/7-G-5.08 7 Pin Right Angle Closed Male Terminal Block (5.08mm PCB Header)

The MSTBA 2.5/7-G-5.08 is a 7-pin right-angle closed male PCB terminal block header with a 5.08mm pitch, designed for secure and detachable wire-to-PCB connections in industrial control systems, automation equipment, power supplies, and electronic devices. It mates with compatible 5.08mm female pluggable terminal blocks, providing a reliable electrical interface and secure locking connection.

Its closed housing design protects the contact pins and ensures proper connector alignment during mating, while the right-angle orientation enables efficient horizontal cable routing in compact PCB assemblies.

Key Features -

• 7-pin right-angle closed male PCB terminal block header

• Standard 5.08mm pin pitch

• Closed housing for pin protection and accurate alignment

• Compatible with 5.08mm female pluggable terminal blocks

• Right-angle PCB mounting design

• Durable flame-retardant insulated housing

• Suitable for industrial and electronic applications

Specifications -

• Product Type: PCB Terminal Block Header

• Model: MSTBA 2.5/7-G-5.08

• Number of Pins: 7

• Pitch: 5.08mm

• Connector Type: Right Angle Closed Male Header

• Mounting Type: PCB Mount

• Mating Connector: 5.08mm Female Pluggable Terminal Block

• Contact Material: Copper Alloy

• Housing Material: Flame-Retardant Insulated Thermoplastic

• Colour: Green (Typical)

• Rated Voltage: Up to 320V (Application Dependent)

• Rated Current: Up to 12A (Application Dependent)

Applications -

• Industrial control panels

• PLC and automation systems

• Power supplies and SMPS

• Instrumentation equipment

• PCB power and signal connections

• Building automation systems

• Industrial electronics

• DIY electronic projects
