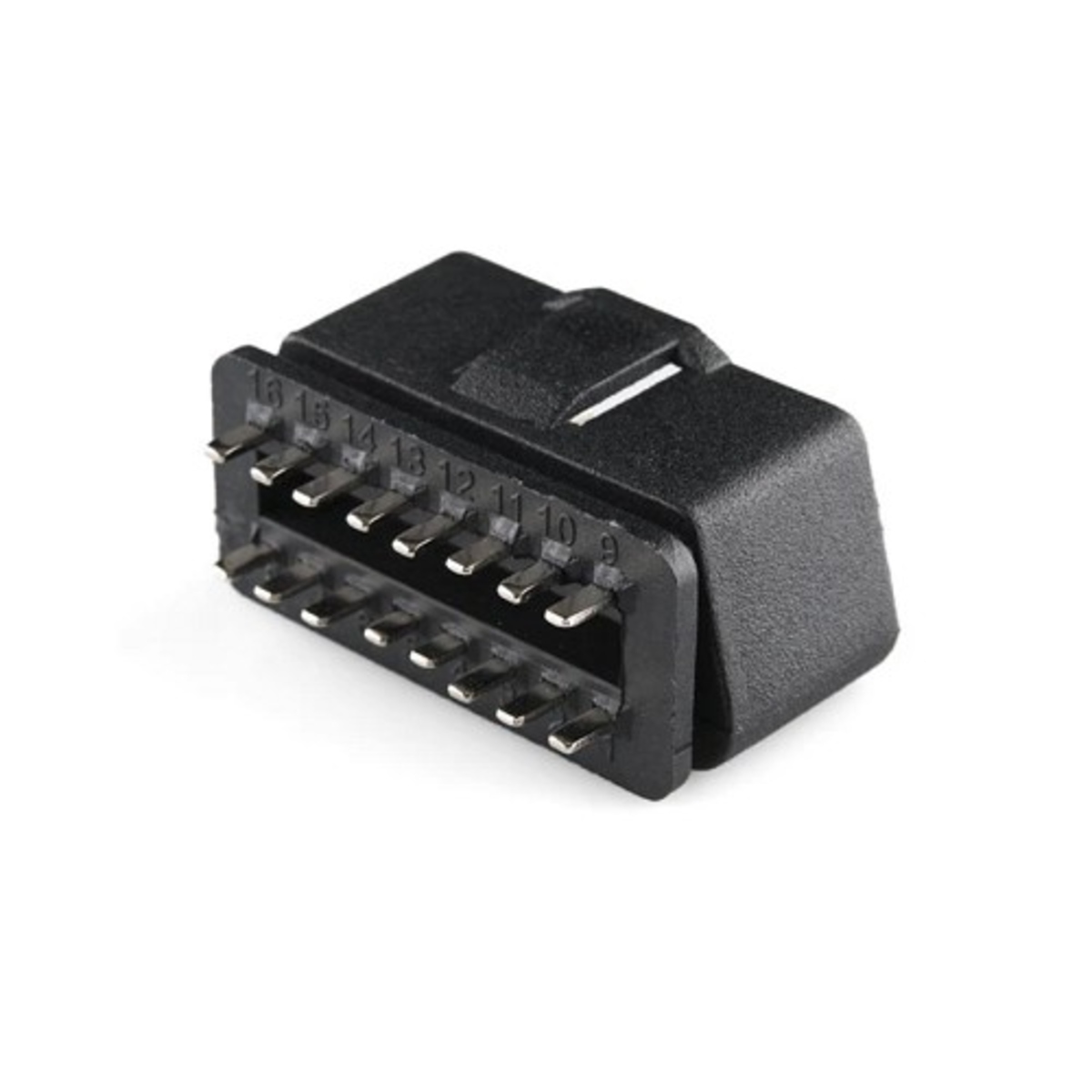

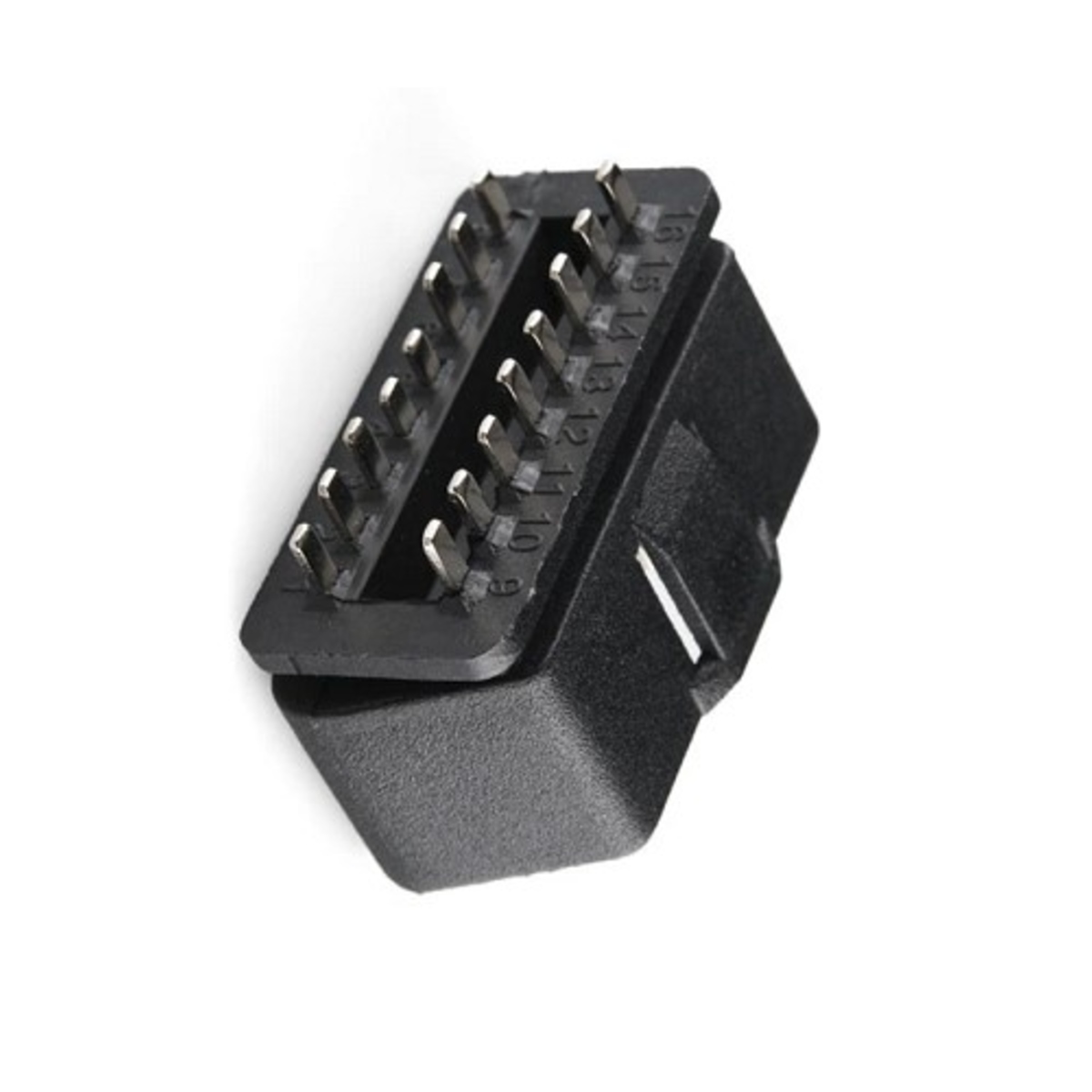

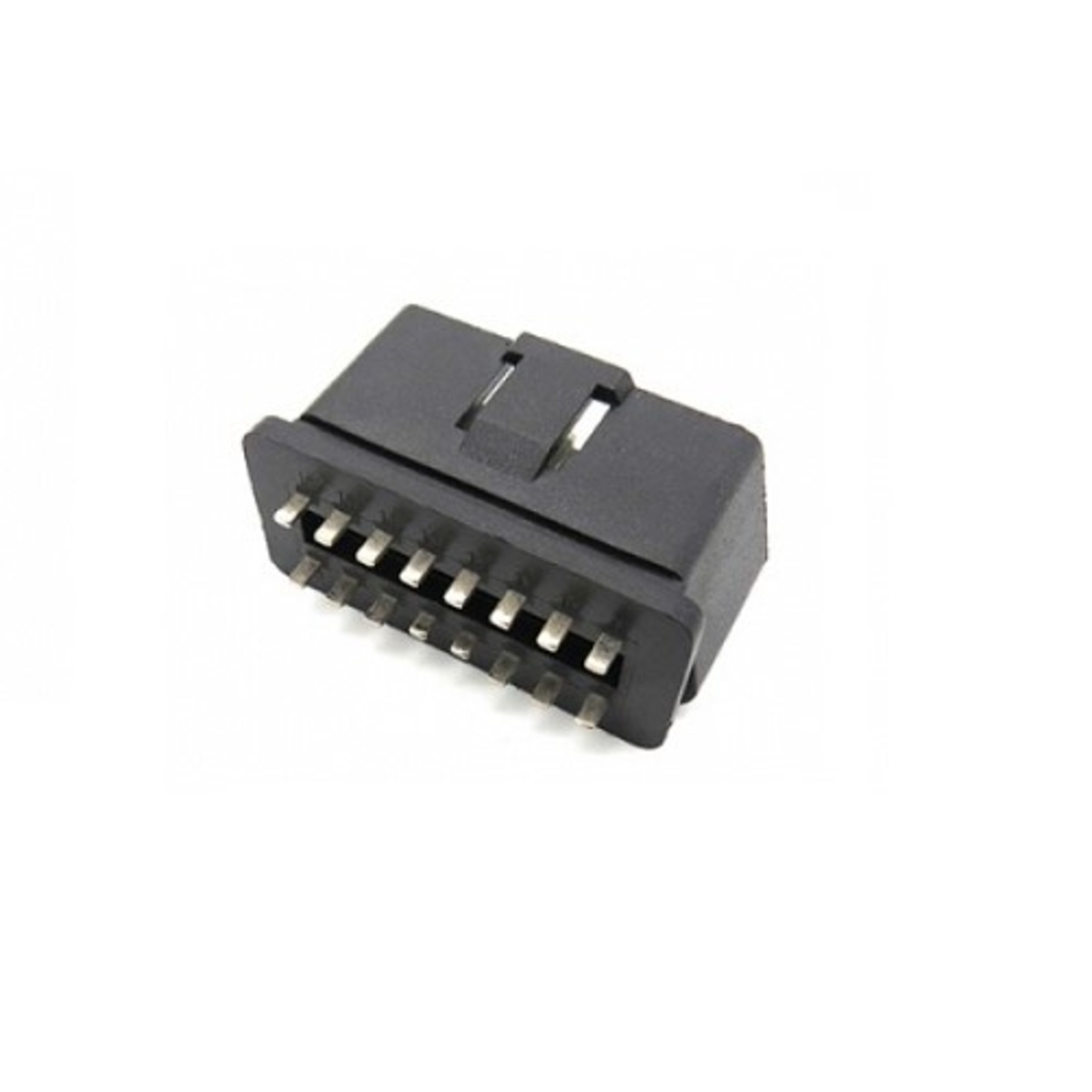

OBD2 16 Pin Male Connector (SAE J1962, 12V)

The OBD2 16 Pin Male Connector is designed for automotive diagnostic and vehicle communication applications. It provides a standard 16-pin interface for connecting compatible diagnostic equipment, cables, and electronic interfaces to an OBD2 diagnostic socket. The connector complies with the SAE J1962 interface standard and is suitable for automotive electronic testing and diagnostic applications.

Key Features -

• Standard 16-pin OBD2 male connector

• Complies with SAE J1962 interface standard

• Designed for automotive diagnostic connections

• Suitable for compatible OBD2 female sockets

• Supports 12V automotive electrical systems

• Operating temperature range from -40 C to +85 C

• Suitable for diagnostic cable and interface assembly

Specifications -

• Product Type: OBD2 Male Connector

• Connector Type: OBD-II / OBD2 Male

• Pin Count: 16 Pins

• Standard: SAE J1962

• Voltage Range: 12V

• Operating Temperature: -40 C to +85 C

• Connector Gender: Male

• Application: Automotive Diagnostics and Vehicle Communication

• Pin Configuration: Standard 16-pin OBD2 arrangement

• Housing Material: Refer to manufacturer specifications

• Contact Material and Plating: Refer to manufacturer specifications

Applications -

• Automotive diagnostic cables

• OBD2 scan tool interfaces

• Vehicle ECU communication

• Automotive electronic testing

• Vehicle troubleshooting equipment

• Diagnostic cable assemblies

• Automotive embedded systems
