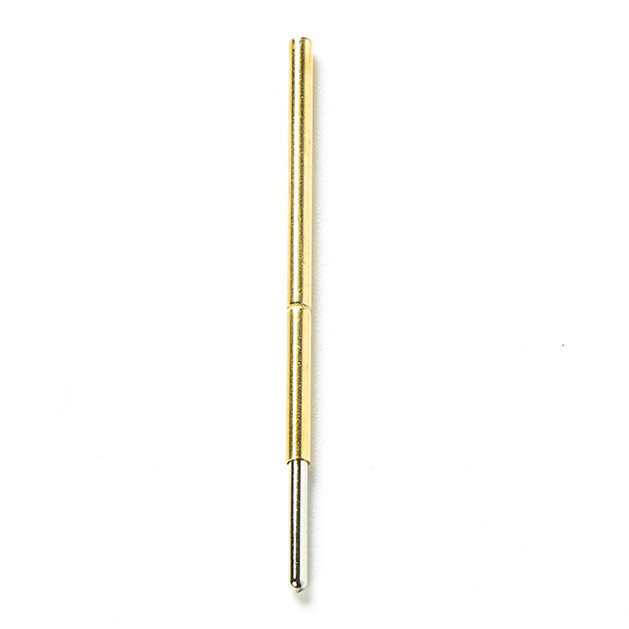

P100-J1 Spring Test Probe Pogo Pin 1.0mm Diameter 33.35mm Length (PCB Test Probe)

The P100-J1 Spring Test Probe is a precision spring-loaded pogo pin with a 1.0mm body diameter and 33.35mm overall length, designed for reliable temporary electrical contact during PCB testing, programming, charging, and automated test applications. Its spring-loaded mechanism ensures consistent contact pressure, making it ideal for repeated test cycles and production environments.

The durable metal construction and precision spring design provide stable conductivity, long service life, and reliable performance in electronic manufacturing and test fixtures.

Key Features -

• P100-J1 spring-loaded test probe

• 1.0mm body diameter

• 33.35mm overall length

• Spring-loaded pogo pin design

• Reliable low-resistance electrical contact

• Suitable for repeated test cycles

• Durable precision construction

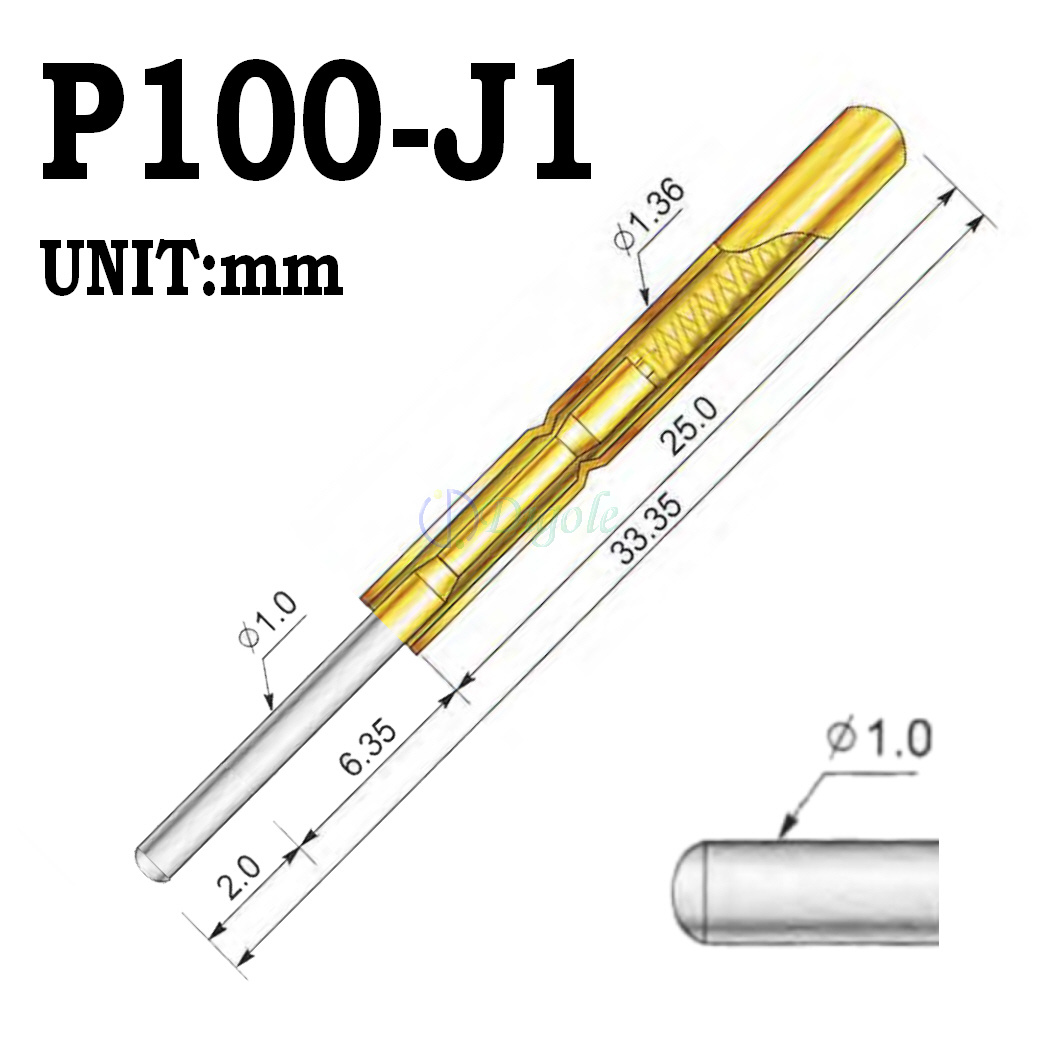

Specifications -

• Product Type: Spring Test Probe (Pogo Pin)

• Model: P100-J1

• Body Diameter: 1.0mm

• Overall Length: 33.35mm

• Contact Type: Spring Loaded

• Mounting Type: Through-Hole / Test Fixture Mount

• Contact Material: Gold-Plated Copper Alloy (Application Dependent)

• Spring Material: Stainless Steel

• Application: PCB Testing, Programming and Electrical Contact

Applications -

• PCB test fixtures

• In-circuit testing (ICT)

• Functional testing systems

• Programming fixtures

• Battery charging contacts

• Electronic production testing

• Quality inspection equipment

• Prototype development
