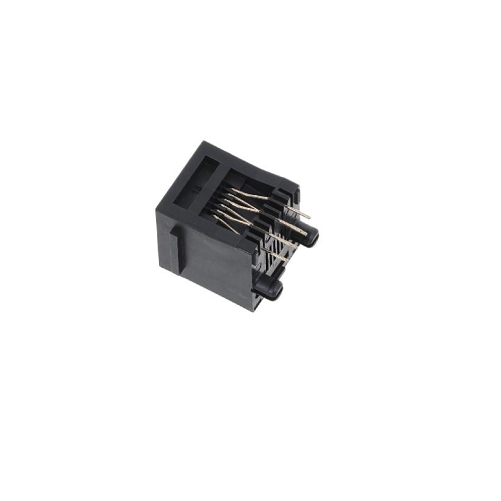

RJ11 6-Leg Vertical Straight Connector (6P Modular PCB Socket)

The RJ11 6-Leg Vertical Straight Connector is a modular telephone-style connector designed for PCB mounting in communication equipment and electronic devices. Its vertical orientation supports direct plug insertion from above the circuit board, while the six-leg terminal arrangement provides electrical connections between the modular plug contacts and the PCB. It is suitable for compatible telephone interfaces and low-voltage signal applications.

Key Features -

• RJ11-style modular connector

• Six-leg terminal configuration

• Vertical straight mounting orientation

• Designed for PCB installation

• Suitable for compatible modular plugs

• Compact design for electronic equipment

• Supports telephone and low-voltage signal connections

Specifications -

• Product Type: Modular PCB Connector

• Connector Type: RJ11 Style

• Terminal Count: 6 Legs

• Orientation: Vertical Straight

• Mounting Type: PCB Mount

• Contact Configuration: Verify whether the connector is 6P2C, 6P4C, or 6P6C

• Termination Style: Through-hole PCB terminals, subject to model verification

• Housing Material: Verify manufacturer specification

• Contact Material and Plating: Verify manufacturer specification

• Dimensions and PCB Footprint: Verify manufacturer drawing

Applications -

• Telephone interface circuits

• Communication equipment

• Embedded electronic devices

• Low-voltage signal connections

• PCB-based telephone interfaces

• Electronic equipment assembly and repair

• Prototyping and development boards
