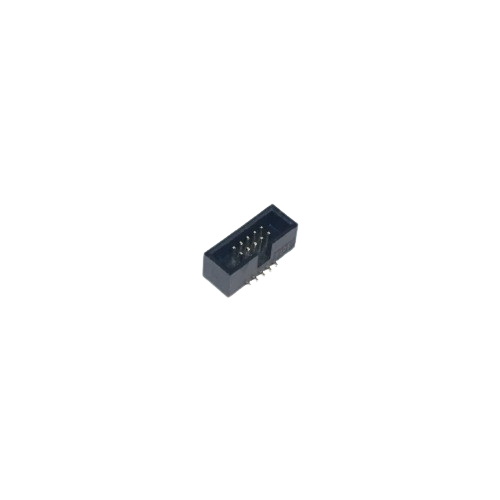

SMD 10 Pin FRC IDC Box Header (5 x 2 Pin, 1.27 mm Pitch, Male PCB Header)

The SMD 10 Pin FRC IDC Box Header is a compact surface-mount connector designed for high-density ribbon cable-to-PCB interconnections. It features a 5 x 2 pin configuration with a 1.27 mm pitch and a male box header interface for mating with a compatible female IDC connector. Its SMD mounting design helps save PCB space while providing a reliable multi-signal connection.

Key Features -

• 10-pin 5 x 2 configuration

• Fine 1.27 mm contact pitch

• Surface-Mount Technology (SMD) mounting

• Male IDC box header design

• Compact high-density connector structure

• Designed for compatible FRC/IDC ribbon cable connectors

• Suitable for board-to-cable signal connections

Specifications -

• Product Type: FRC/IDC Box Header

• Connector Configuration: 5 x 2

• Total Number of Pins: 10

• Pitch: 1.27 mm

• Connector Gender: Male

• Mounting Type: Surface Mount

• Orientation: Refer to manufacturer specifications

• Termination Type: SMD PCB Terminals

• Connector Type: Box Header

• Housing Material: Engineering plastic, verify manufacturer specifications

• Contact Material and Plating: Refer to manufacturer specifications

• Compatible Cable: 10-conductor FRC/IDC ribbon cable with matching pitch

Applications -

• Compact ribbon cable connections

• Embedded systems

• Development and evaluation boards

• Industrial control electronics

• Computer and communication equipment

• PCB-to-cable interconnections

• High-density digital signal connections
