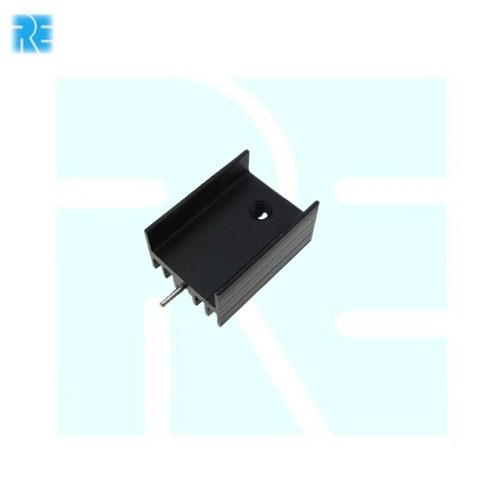

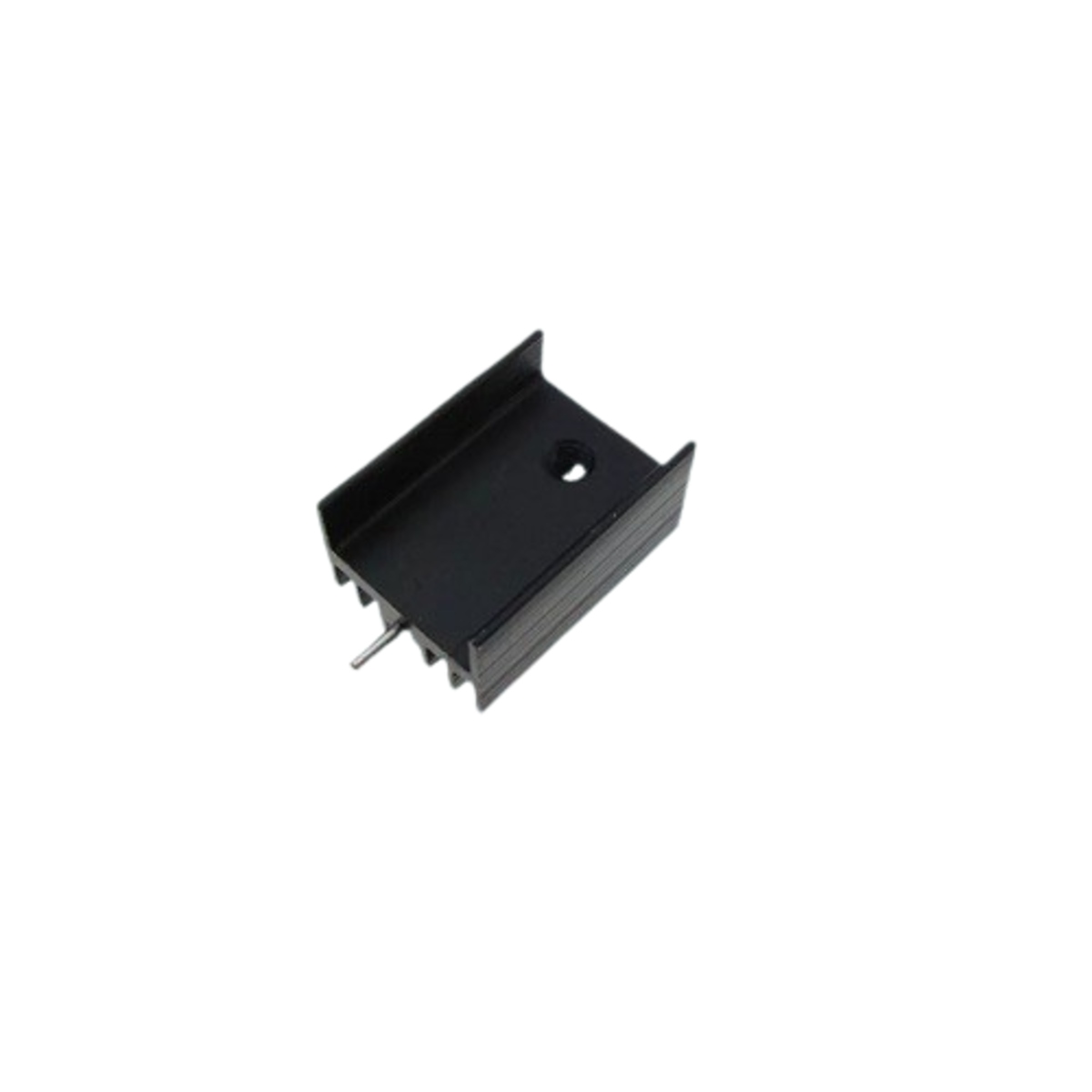

TO-220 15mm Black Aluminium Heatsink with PCB Mounting Pins (Cooling Fin for Transistors and Voltage Regulators)

The TO-220 15mm Black Aluminium Heatsink with PCB Mounting Pins is designed to dissipate heat from compatible TO-220 package components, including power transistors, MOSFETs, and voltage regulators. Its compact design and integrated mounting pins support installation on compatible printed circuit boards (PCBs). The aluminium body and finned structure provide a surface for passive heat dissipation in electronic assemblies.

Key Features -

• Compact 15mm size specification

• Designed for compatible TO-220 package devices

• Integrated pins for PCB mounting

• Aluminium construction for heat transfer

• Black finished surface

• Finned design to increase heat dissipation surface area

• Passive air cooling without a fan

• Suitable for compact electronic assemblies

Specifications -

• Product Type: Aluminium Heatsink with PCB Mounting Pins

• Package Compatibility: TO-220 type, subject to mounting dimensions

• Length: Approximately 15mm, as specified

• Width: Approximately 18mm, as provided

• Height: Approximately 10mm, as provided

• Material: Aluminium alloy, as specified

• Surface Finish: Black finish; anodizing to be confirmed from manufacturer specifications

• Mounting Method: PCB pin mount

• Number of Fins: Approximately 6, as provided

• Thermal Resistance: Refer to manufacturer datasheet

Applications -

• Voltage regulator IC cooling, including compatible 78xx series devices

• Power transistor and MOSFET thermal management

• Motor driver circuits

• Switched-mode power supply circuits

• Embedded electronics and PCB assemblies

• Industrial control circuits
