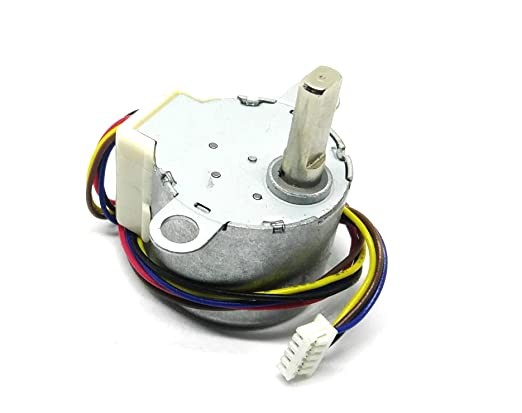

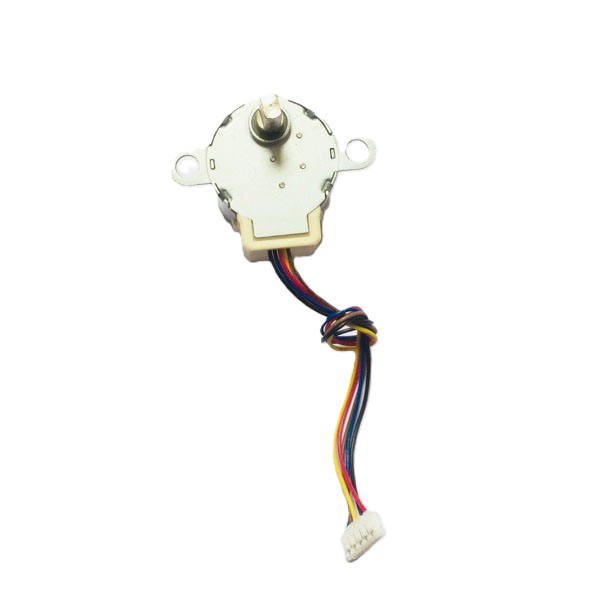

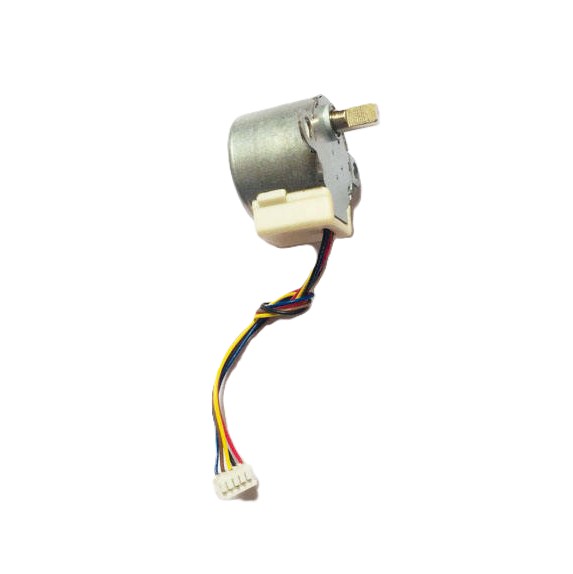

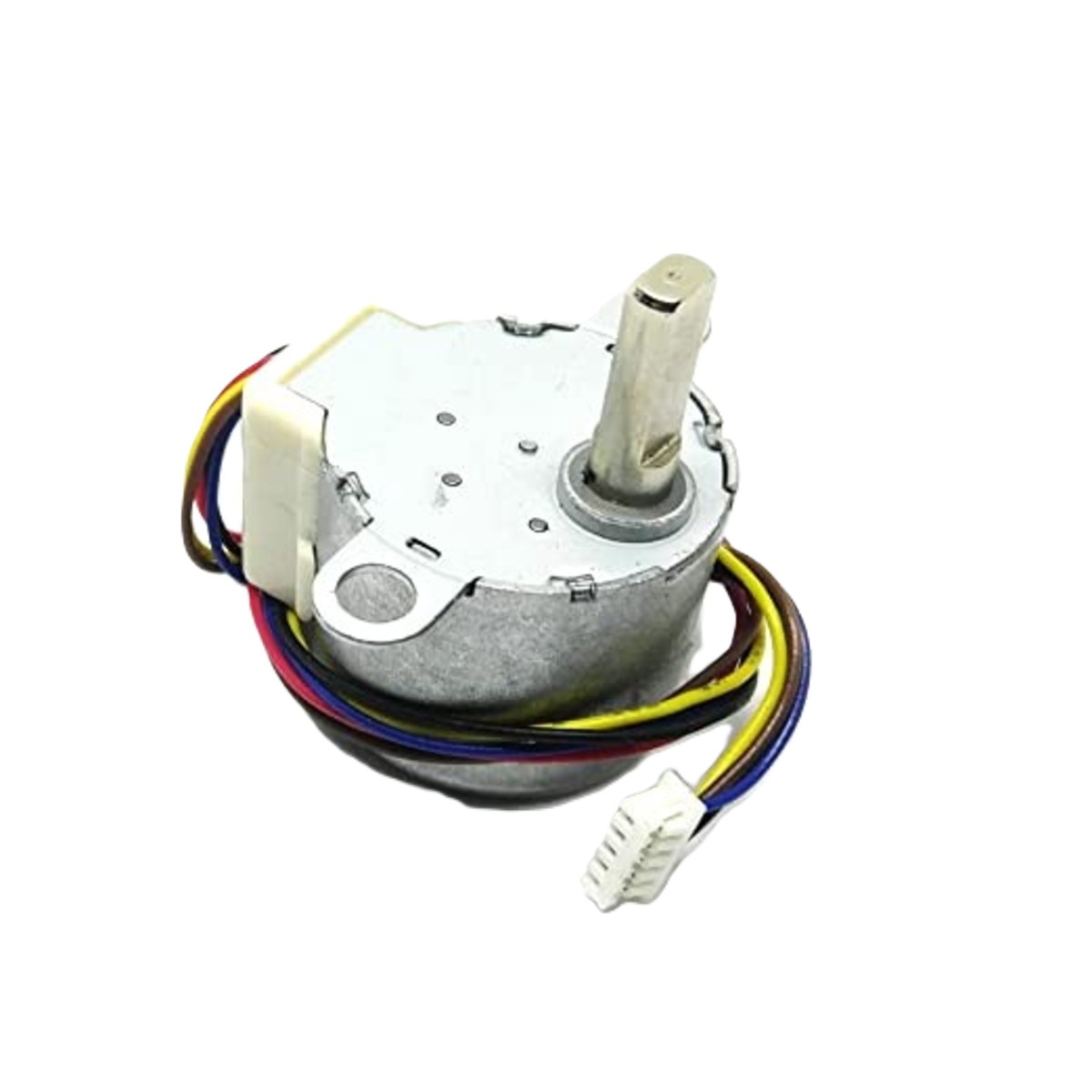

W-24BYJ DC 5V 4-Phase 5-Wire Stepper Motor (Mini Geared Stepper Motor)

The W-24BYJ DC 5V 4-Phase 5-Wire Stepper Motor is a compact geared stepper motor designed for precise position and speed control in embedded systems, automation equipment, and DIY electronics projects. Operating at 5V DC, it provides accurate step-by-step rotational movement, making it ideal for applications requiring repeatable positioning and controlled motion.

The motor features a 4-phase, 5-wire unipolar configuration and is commonly used with ULN2003 stepper motor driver boards, making it compatible with Arduino, ESP32, STM32, Raspberry Pi, PIC, AVR, and other microcontroller platforms. Its built-in gear reduction offers improved torque and positioning accuracy for low-speed motion control applications.

Key Features -

• Operates from a 5V DC power supply

• 4-phase 5-wire unipolar stepper motor

• High positioning accuracy and repeatability

• Built-in gear reduction for higher torque

• Low noise and smooth operation

• Compact and lightweight design

• Suitable for precision motion control

• Easy interface with ULN2003 driver modules

• Low power consumption

• Ideal for embedded systems and robotics

Specifications -

• Product type - Geared Stepper Motor

• Model - W-24BYJ

• Motor type - 4-Phase Unipolar Stepper Motor

• Rated voltage - 5V DC

• Wire configuration - 5-Wire

• Number of phases - 4

• Step angle - 5.625 Degree (Motor) / 64:1 Gear Reduction (Typical)

• Gearbox - Integrated Reduction Gear

• Rotation type - Step-by-Step Rotary Motion

• Mounting type - Flange Mount

• Application - Precision Motion Control Systems

Applications -

• Arduino and ESP32 projects

• Robotics and automation

• Smart home devices

• Camera pan and tilt mechanisms

• CNC and positioning systems

• Educational electronics kits

• Laboratory instruments

• Small valve and actuator control

• Embedded motion control systems

• DIY electronics projects
