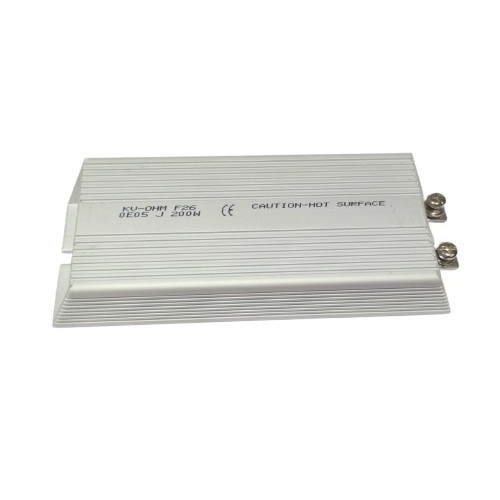

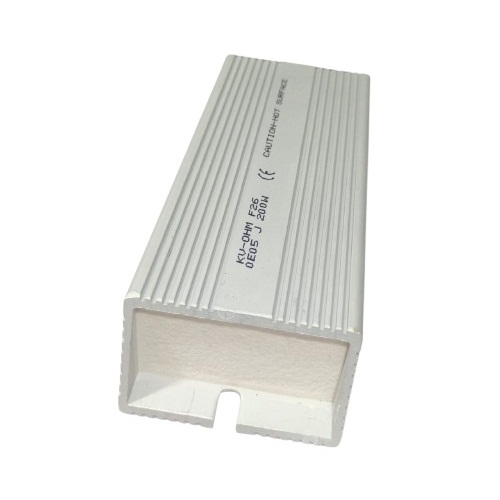

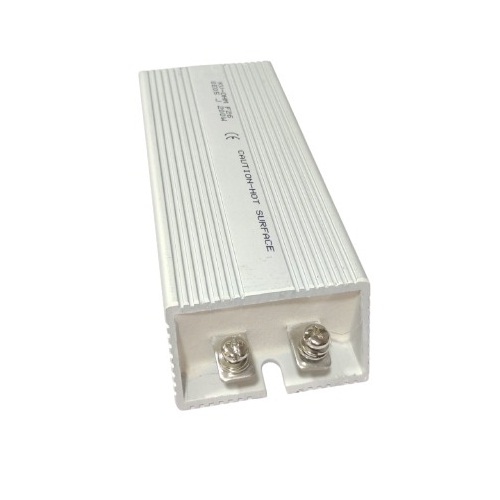

0.05 Ohm 200W 5% Aluminium Housing Wirewound Resistor (0.05Ω High Power Aluminium Clad Resistor)

The 0.05 Ohm 200W Aluminium Housing Wirewound Resistor is a high-power wirewound resistor designed for current limiting, load testing, braking circuits, discharge circuits, and industrial power applications. Featuring a 0.05Ω resistance, 200W power rating, and ±5% tolerance, it is enclosed in a rugged aluminium housing that provides excellent heat dissipation when mounted to a metal surface or heatsink. Supplied with mounting hardware, it is ideal for demanding high-power electronic and electrical applications.

Key Features -

• Low resistance value of 0.05Ω

• High power rating of 200W

• ±5% resistance tolerance

• Aluminium housing for efficient heat dissipation

• High-quality wirewound construction for stability and reliability

• Suitable for continuous high-power operation

• Corrosion-resistant aluminium body

• Includes mounting hardware for easy installation

Specifications -

• Product Type - Aluminium Housing Wirewound Resistor

• Resistance - 0.05Ω (0.05 Ohm)

• Power Rating - 200W

• Tolerance - ±5%

• Resistor Type - Wirewound

• Housing Material - Aluminium

• Mounting Type - Chassis Mount

• Dimensions - 60mm × 170mm × 30mm

• Cooling Method - Chassis/Heatsink Mounting Recommended

Applications -

• Current limiting circuits

• Battery load testing

• Motor braking resistors

• Dynamic braking systems

• Power supply load banks

• Industrial automation equipment

• Inverter and UPS systems

• High-current testing equipment

• Discharge and dummy load circuits
