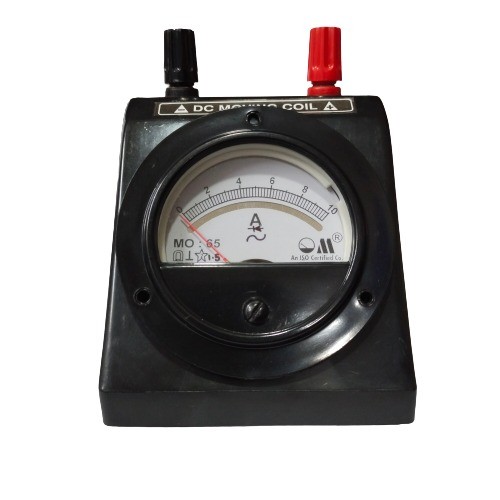

NOTE*** MO-65 Analog meter Stand Sold Separately

https://rajivelectronics.com/product/mo-65-analog-meter-stand

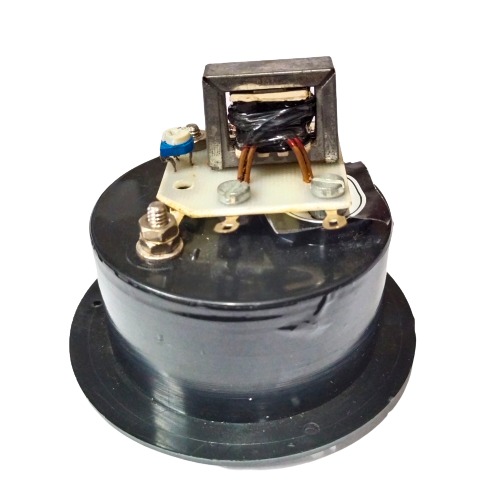

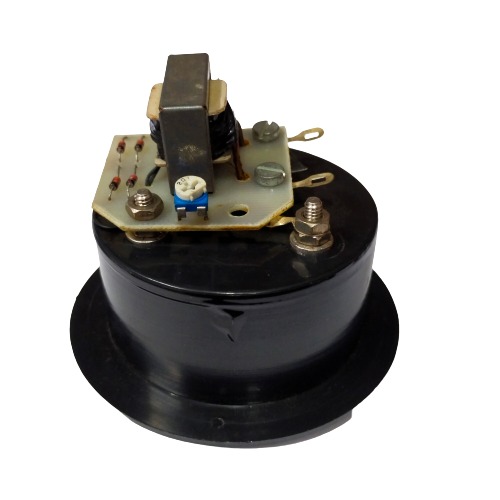

0-10A AC MO 65 Analog Panel Meter Accuracy 1.5% (Ammeter for AC Current Measurement Applications)

The 0-10A AC MO 65 Analog Panel Meter is a precision analog meter designed for measuring AC currents up to 10 Amperes with high accuracy. Its clear analog display and robust construction make it suitable for electrical testing equipment, industrial control panels, laboratory instruments, and power monitoring applications.

Key Features -

• AC current measurement range from 0 to 10A

• High accuracy class of 1.5%

• Analog meter mechanism for smooth indication

• Clear and easy-to-read scale display

• Reliable and stable measurement performance

• Suitable for panel mounting applications

Specifications -

• Product type - Analog Panel Meter

• Model - MO 65

• Measurement type - AC Current

• Measuring range - 0 to 10A AC

• Accuracy class - 1.5%

• Display type - Analog Scale

• Mounting type - Panel Mount

• Operating principle - Electromagnetic Meter Movement

• Frequency - Suitable for standard AC measurement applications (50/60Hz)

• Additional features - Low power consumption, stable readings, durable construction, easy scale visibility

Applications -

• AC current monitoring

• Industrial control panels

• Electrical testing equipment

• Power distribution systems

• Laboratory instruments

• Educational electronics projects

Working Principle -

The 0-10A AC Analog Meter measures alternating current flowing through the circuit and converts it into a proportional pointer deflection using an electromagnetic meter movement. The calibrated scale provides a direct visual indication of the AC current being measured.
