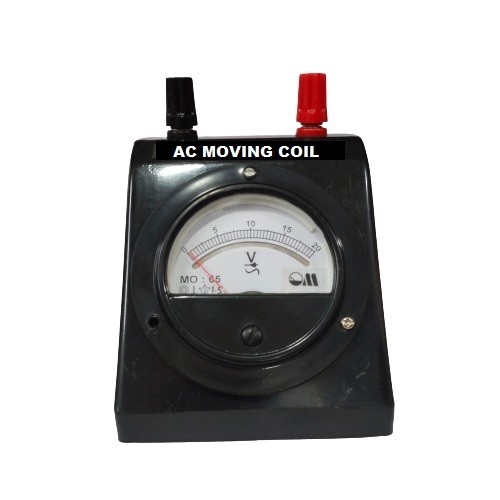

NOTE*** MO-65 Analog meter Stand Sold Separately

https://rajivelectronics.com/product/mo-65-analog-meter-stand

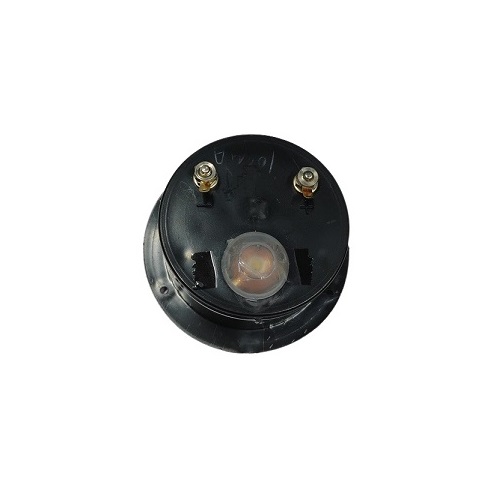

0-20V AC MO 65 Analog Panel Meter Accuracy 1.5% (Voltmeter for AC Voltage Measurement Applications)

The 0-20V AC MO 65 Analog Panel Meter is a precision analog meter designed for measuring AC voltages up to 20 Volts with high accuracy. Its clear analog display and durable construction make it suitable for laboratory instruments, industrial equipment, electrical testing systems, and educational applications.

Key Features -

• AC voltage measurement range from 0 to 20V

• High accuracy class of 1.5%

• Analog meter mechanism for smooth indication

• Clear and easy-to-read scale display

• Reliable and stable measurement performance

• Suitable for panel mounting applications

Specifications -

• Product type - Analog Panel Meter

• Model - MO 65

• Measurement type - AC Voltage

• Measuring range - 0 to 20V AC

• Accuracy class - 1.5%

• Display type - Analog Scale

• Mounting type - Panel Mount

• Operating principle - Electromagnetic Meter Movement

• Frequency - Suitable for standard AC measurement applications (50/60Hz)

• Additional features - Low power consumption, stable readings, durable construction, easy scale visibility

Applications -

• AC voltage monitoring

• Electrical testing equipment

• Industrial control panels

• Laboratory instruments

• Educational electronics projects

• AC power measurement systems

Working Principle -

The 0-20V AC Analog Meter measures alternating voltage applied across its terminals and converts it into a proportional pointer deflection using an electromagnetic meter movement. The calibrated scale provides a direct visual indication of the AC voltage being measured.
