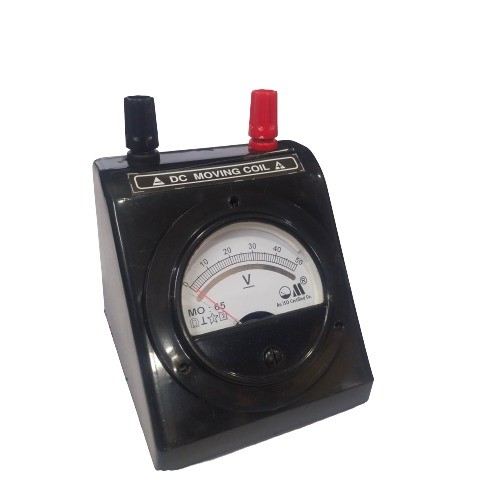

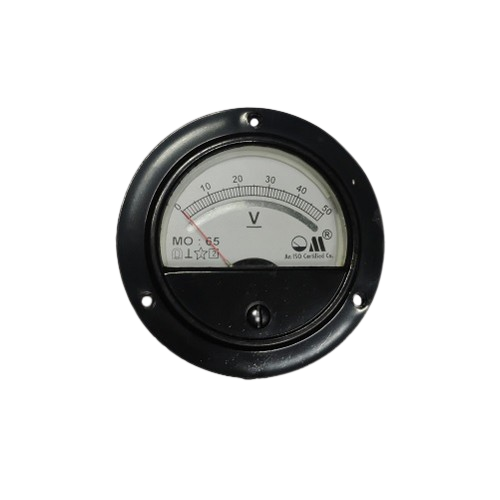

0-50V DC Analog Voltmeter (Moving Coil, 1.5% Accuracy)

The 0-50V DC Analog Voltmeter is designed to measure direct current (DC) voltage in electrical circuits and electronic equipment. Featuring a moving coil mechanism and an accuracy class of 1.5%, it provides a visual indication of voltage through a graduated analog scale. It is suitable for laboratory instruments, power supply monitoring, electronic projects, and electrical control panels.

Key Features -

• DC voltage measurement range from 0V to 50V

• Moving coil (MO) analog meter mechanism, as specified

• Accuracy class of 1.5%

• Graduated scale for visual voltage readings

• Suitable for DC power supply monitoring

• Designed for panel instrumentation and electronic projects

Specifications -

• Product Type: Analog Voltmeter

• Measurement Type: DC voltage

• Measurement Range: 0-50V DC

• Operating Principle: Moving coil mechanism

• Accuracy Class: 1.5%

• Display Type: Analog pointer and graduated scale

• Mounting Type: Verify the specific meter model

• Input Resistance: Refer to manufacturer datasheet

• Scale Graduation: Refer to the meter dial

• Polarity: Observe the positive and negative terminal markings

Applications -

• DC power supply voltage monitoring

• Battery voltage measurement within the rated range

• Electronic laboratory experiments

• Electrical control panels

• DIY electronics and testing projects

• DC circuit troubleshooting

• Voltage indication in electronic equipment
