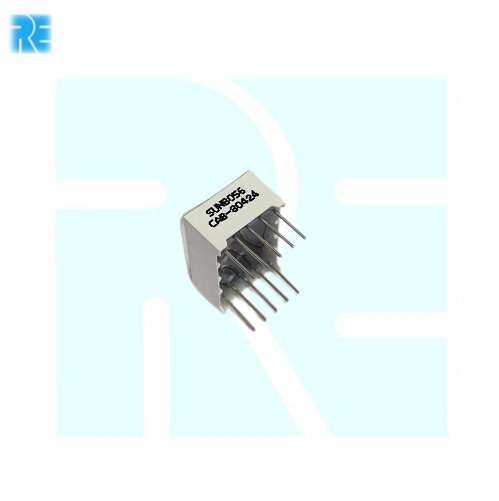

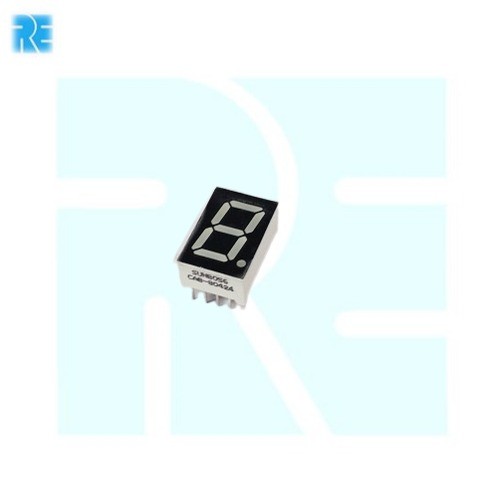

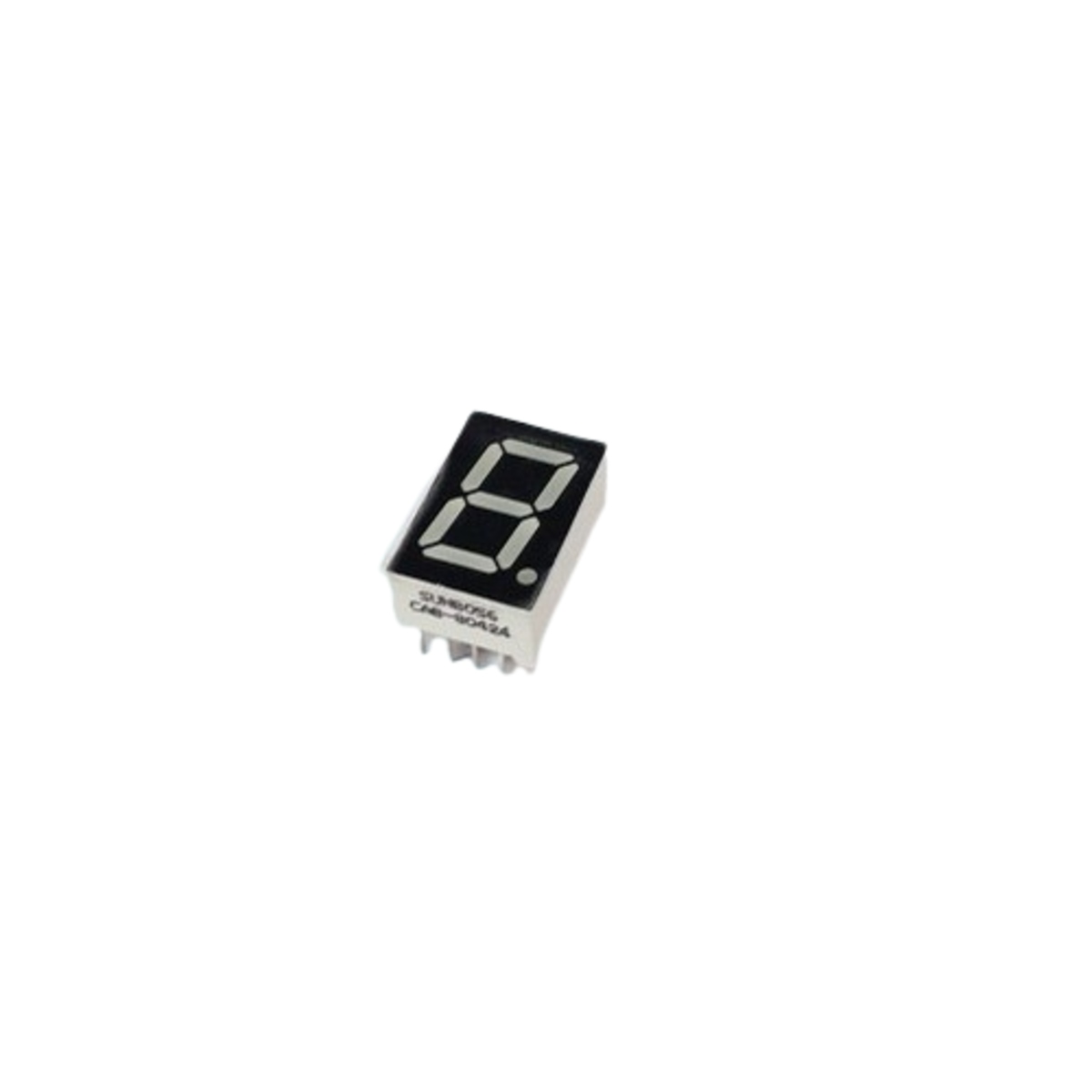

0.56 Inch Blue 7-Segment LED Display SUN056CA (Common Anode, SUN)

The SUN SUN056CA is a 0.56 inch blue 7-segment LED display designed for numerical indication in electronic circuits and measurement instruments. Its common anode configuration allows individual LED segments to be controlled through their cathode connections. The blue LED illumination provides clear numeric indication for digital counters, control panels, and microcontroller-based electronic projects.

Key Features -

• 0.56 inch digit height

• Blue LED illumination

• Common anode configuration

• Seven-segment numeric display

• Suitable for digital indicator and measurement circuits

Specifications -

• Brand: SUN

• Model: SUN056CA

• Display Type: 7-Segment LED Display

• Digit Height: 0.56 Inch

• Display Colour: Blue

• Common Terminal Configuration: Common Anode

• Display Format: Single Digit, subject to manufacturer datasheet confirmation

Applications -

• Digital counters and timers

• Digital clocks and numeric indicators

• Voltage and current measuring instruments

• Industrial control panels

• Microcontroller and development board projects

• Electronic monitoring equipment

Working Principle -

The display contains seven light-emitting diode segments arranged to form numerical digits from 0 to 9. In a common anode configuration, the anodes of the LED segments share a common positive supply connection. Individual segments illuminate when their cathodes are driven to a suitable lower voltage through current-limiting resistors or compatible driver circuitry. Activating the required segment combination produces the desired number.

Pin Configuration -

• Common Anode: Shared positive connection for the LED segments

• Segment Pins: Individual connections for segments A, B, C, D, E, F and G

• Decimal Point: Availability and pin assignment should be verified using the manufacturer datasheet

• Refer to the SUN056CA datasheet for exact pin numbering, forward voltage, and maximum segment current before circuit connection.
