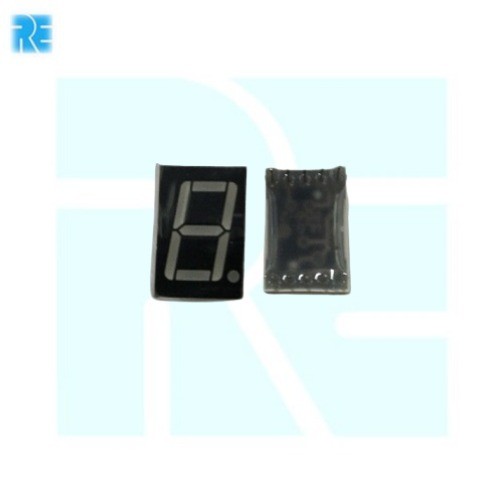

ARK SM020561K9 0.56 Inch Parrot Green 7-Segment LED Display (Common Cathode, Dual Colour)
The ARK SM020561K9 is a 0.56 inch LED display designed for numeric indication in electronic circuits, embedded systems, and digital instrumentation. It features a common cathode configuration and a dual-colour LED design, with parrot green specified as the display colour. The display is suitable for numeric indicators, measurement instruments, control panels, and microcontroller-based projects. Confirm the available colour combinations and segment configuration from the manufacturer's datasheet before integration.
Key Features -
• 0.56 inch character height
• Parrot green LED colour
• Dual-colour LED display design
• Common cathode configuration
• Seven-segment numeric display
• Individual segment control for numeric representation
• Suitable for electronic instrumentation and embedded systems
• Compatible with appropriate LED driver circuits
• Requires current-limiting resistors for safe operation
Specifications -
• Part Number: SM020561K9
• Manufacturer: ARK
• Category: 7-Segment LED Displays
• Display Type: Numeric LED display
• Character Height: 0.56 inch
• Display Colour: Parrot Green
• LED Configuration: Common cathode
• Colour Configuration: Dual colour
• Segment Configuration: Seven segments
• Display Technology: Light Emitting Diode (LED)
• Operating Voltage: Depends on LED forward voltage and the drive circuit
• Drive Method: Direct segment drive or compatible LED driver
• Mounting Type: Refer to the manufacturer's datasheet for confirmation
• Package Type: Refer to the manufacturer's datasheet for confirmation
• Electrical Connection: Segment and common cathode connections as specified in the datasheet
Applications -
• Digital counters and timers
• Digital measurement instruments
• Electronic control panels
• Arduino and microcontroller projects
• Industrial instrumentation
• Numeric status indicators
• Embedded system interfaces
• Laboratory equipment
• Educational electronics projects
