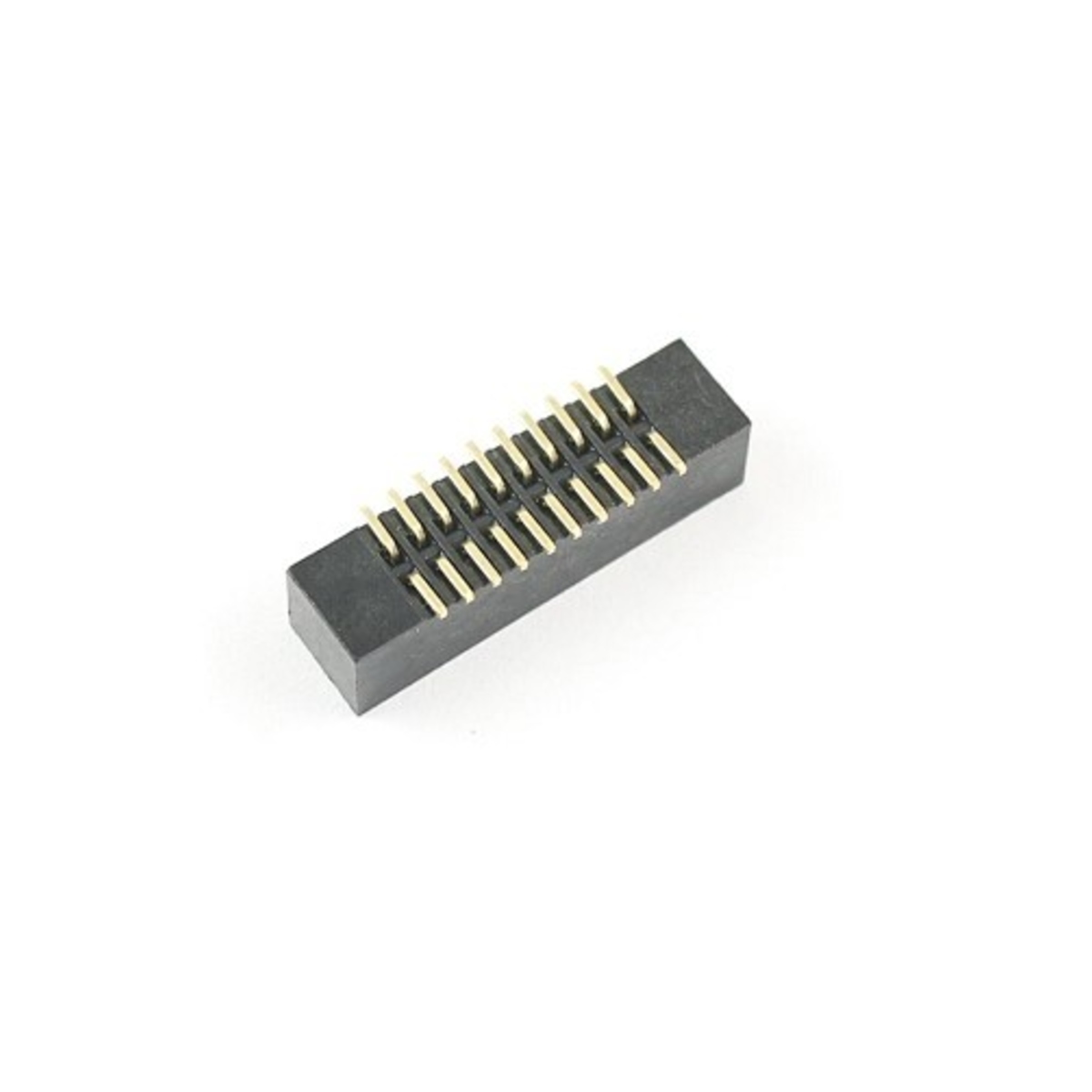

1.27 mm Pitch 2x10 Pin SMT SMD Male Shrouded Box Header IDC Connector (20 Pin, Dual Row)

The 1.27 mm Pitch 2x10 Pin SMT SMD Male Shrouded Box Header is a compact board-to-cable connector designed for high-density electronic assemblies. It features 20 male contacts arranged in two rows of 10 pins, with a 1.27 mm pitch and a shrouded housing for alignment with a compatible IDC ribbon cable connector. Its surface-mount design supports PCB assembly in space-constrained electronic devices.

Key Features -

• 20-pin male shrouded box header

• 2-row configuration with 10 pins per row

• 1.27 mm contact pitch

• Surface-mount technology (SMT/SMD) design

• Shrouded housing helps guide compatible mating connectors

• Designed for compatible 1.27 mm pitch IDC ribbon cable connectors

• Compact construction for high-density PCB layouts

• Suitable for board-to-cable signal connections

Specifications -

• Product Type: Shrouded Box Header

• Connector Configuration: 2x10 Pin

• Total Number of Pins: 20

• Number of Rows: 2

• Pins per Row: 10

• Pitch: 1.27 mm

• Connector Gender: Male

• Mounting Type: Surface Mount (SMT/SMD)

• Housing Type: Shrouded

• Connection Type: Board-to-Cable

• Mating Connector: Compatible 20-pin, 1.27 mm pitch IDC connector

• Contact Material and Plating: Verify manufacturer specification

• Insulation Material: Verify manufacturer specification

• Rated Voltage and Current: Verify manufacturer datasheet

• PCB Footprint and Dimensions: Verify manufacturer drawing

Applications -

• Embedded electronic systems

• Compact development boards

• Industrial control electronics

• Board-to-cable signal connections

• High-density PCB assemblies

• Test and measurement equipment

• Custom electronic product development
