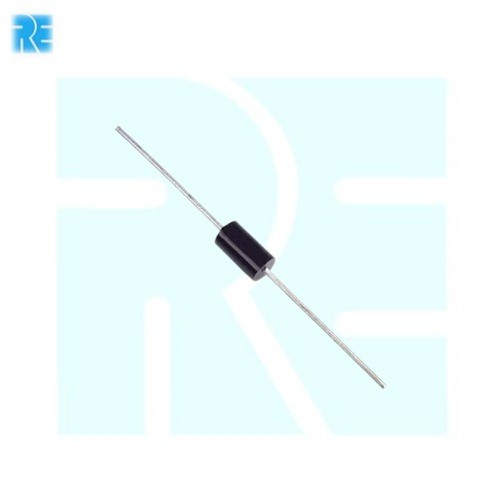

1.5KE16CA Bidirectional TVS Diode (16V, 1500W, DO 201, 1 Qty)

The 1.5KE16CA is a bidirectional Transient Voltage Suppression (TVS) diode designed to protect sensitive electronic circuits from voltage spikes, electrostatic discharge and transient overvoltage conditions. Featuring a peak pulse power rating of 1500W and a nominal breakdown voltage of 16V, it provides reliable transient protection for power supply circuits, industrial electronics and communication equipment.

The 1.5KE16CA features a bidirectional configuration that suppresses both positive and negative voltage transients. It offers fast response to transient events, low leakage current and a DO 201 axial lead package suitable for through hole PCB mounting. This TVS diode is commonly used to protect electronic components against switching surges, inductive load transients and other short duration overvoltage events.

Key Features -

• 1.5KE16CA bidirectional Transient Voltage Suppression diode

• 1500W peak pulse power dissipation rating

• 16V nominal breakdown voltage

• Bidirectional protection against positive and negative voltage transients

• Fast response to transient overvoltage events

• Low leakage current during normal operation

• Suitable for ESD and surge protection circuits

• DO 201 axial lead package for through hole mounting

Specifications -

• Part Number: 1.5KE16CA

• Product Type: Transient Voltage Suppression Diode

• Diode Configuration: Bidirectional

• Peak Pulse Power Dissipation: 1500W

• Reverse Standoff Voltage: 13.6V

• Breakdown Voltage: 15.2V to 16.8V

• Nominal Breakdown Voltage: 16V

• Breakdown Voltage Tolerance: 5%

• Maximum Clamping Voltage: 22.5V

• Peak Pulse Current: 66.7A

• Pulse Waveform: 10/1000 Microseconds

• Package Type: DO 201

• Mounting Type: Through Hole

• Pack Quantity: 1 Qty (1 Piece)

Applications -

• DC power supply surge protection

• Electronic circuit ESD protection

• Industrial control and automation equipment

• Communication and signal protection circuits

• Inductive load switching protection

• Embedded systems and electronic equipment

• PCB transient voltage protection
