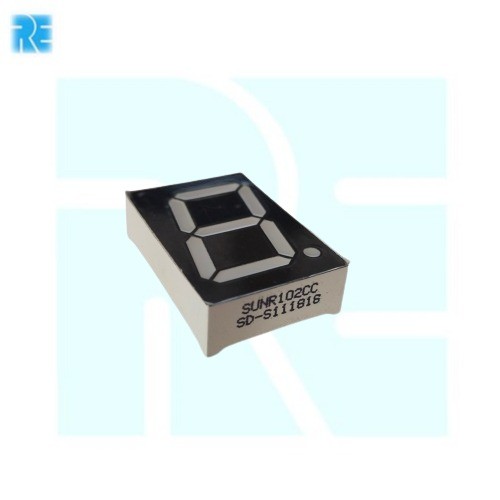

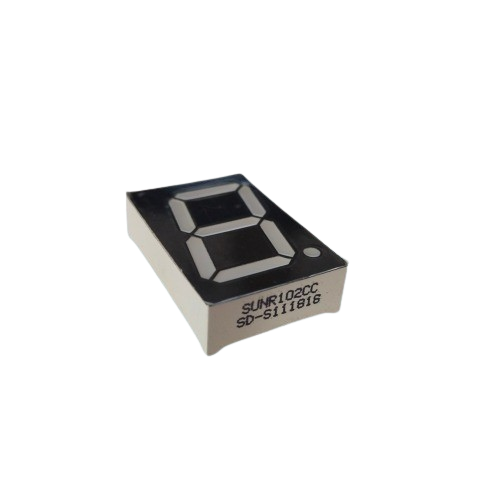

1 Inch Common Cathode Red LED Display (SUNR102CC)

The SUNR102CC 1 Inch Common Cathode Red LED Display is designed for numeric indication in electronic circuits, measurement instruments, and control panels. It features a red LED display with a common cathode configuration, allowing individual segments to illuminate when their anodes receive a suitable positive drive voltage. Its large digit size provides clear visibility in equipment requiring easy-to-read numeric information.

Key Features -

• 1 inch digit display

• Common cathode (CC) configuration

• Red LED illumination

• Seven-segment numeric display

• Suitable for numeric readouts and status indication

• Individual segment control

• Designed for electronic equipment and PCB integration

Specifications -

• Model Number: SUNR102CC

• Display Type: Seven-segment LED display

• Digit Height: 1 inch (25.4 mm)

• Display Colour: Red

• Configuration: Common cathode

• Display Technology: Light Emitting Diode (LED)

• Number of Digits: Verify from the exact product package

• Forward Voltage: Depends on LED characteristics and segment current

• Maximum Forward Current: Refer to manufacturer datasheet

• Mounting Type: Verify package and lead arrangement

• Pin Configuration: Refer to manufacturer datasheet

Applications -

• Digital voltmeters and ammeters

• Counters and timers

• Digital clocks and frequency meters

• Industrial control panels

• Measurement and test instruments

• Microcontroller-based electronic projects

• Numeric displays for equipment status and readings
