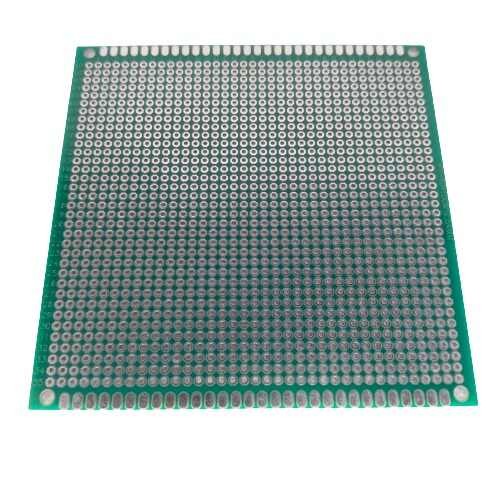

100 x 100mm Double-Sided 2.54mm Pitch General Purpose Dotted PCB (Prototype Perf Board)

The 100 x 100mm Double-Sided General Purpose Dotted PCB is a versatile prototype perf board designed for building, testing, and developing custom electronic circuits using through-hole components. Featuring a 2.54mm (0.1 inch) hole pitch, it is compatible with standard resistors, capacitors, transistors, IC sockets, connectors, headers, and other through-hole components. The double-sided copper construction provides enhanced routing flexibility and stronger solder joints, making it ideal for prototyping, educational projects, industrial applications, and DIY electronics.

Manufactured from premium FR4 glass epoxy, this PCB offers excellent mechanical strength, electrical insulation, and long-lasting durability for professional and hobbyist use.

Key Features -

• Compact 100 x 100mm prototype PCB

• Double-sided copper construction for flexible circuit routing

• Standard 2.54mm (0.1 inch) hole pitch

• Dotted copper pad layout for custom circuit design

• Compatible with a wide range of through-hole components

• High-quality FR4 glass epoxy construction

• Easy to solder, modify, and repair

Specifications -

• Product Type: General Purpose Dotted PCB

• PCB Size: 100 x 100mm

• PCB Type: Double-Sided

• Hole Pitch: 2.54mm (0.1 Inch)

• Pad Style: Dotted Copper Pads

• Mounting Type: Through-Hole Components

• PCB Material: FR4 Glass Epoxy

• Board Thickness: 1.6mm (Typical)

• Surface Finish: HASL (Typical)

• Application: Electronic Circuit Prototyping

Applications -

• Electronic circuit prototyping

• Breadboard circuit transfer

• Embedded system development

• Educational and laboratory experiments

• Industrial control circuit testing

• Sensor and interface circuit development

• Electronic repair and modification

• DIY electronics projects
