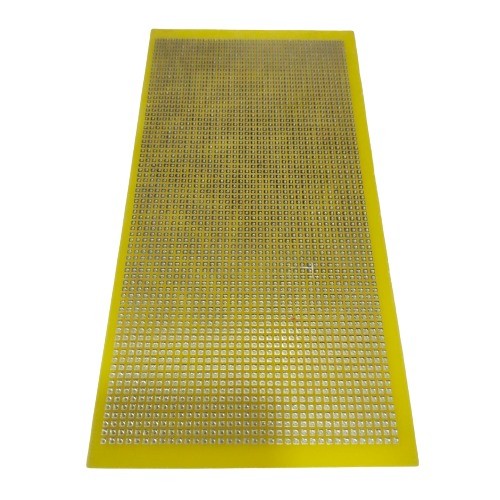

100 x 200mm Single-Sided Glass Epoxy General Purpose Dotted PCB (Prototype Perf Board)

The 100 x 200mm Single-Sided Glass Epoxy General Purpose Dotted PCB is a high-quality prototype perf board designed for assembling, testing, and developing electronic circuits using through-hole components. The dotted copper pad layout provides maximum flexibility for creating custom circuit connections, making it ideal for prototyping, educational projects, repairs, and DIY electronics. Its single-sided copper construction allows easy soldering, circuit modification, and rapid prototype development.

Manufactured from premium FR4 glass epoxy, this PCB offers excellent mechanical strength, electrical insulation, and heat resistance, ensuring reliable performance in professional, industrial, and hobbyist electronics applications.

Key Features -

• Large 100 x 200mm prototype PCB

• Single-sided copper construction

• General-purpose dotted copper pad layout

• High-quality FR4 glass epoxy material

• Compatible with standard through-hole electronic components

• Excellent mechanical strength and electrical insulation

• Easy to solder, modify, and repair

• Ideal for prototyping, testing, and educational projects

Specifications -

• Product Type: General Purpose Dotted PCB

• PCB Size: 100 x 200mm

• PCB Type: Single-Sided

• Pad Style: Dotted Copper Pads

• Mounting Type: Through-Hole Components

• PCB Material: FR4 Glass Epoxy

• Board Thickness: 1.6mm (Typical)

• Surface Finish: HASL (Typical)

• Application: Electronic Circuit Prototyping

Applications -

• Electronic circuit prototyping

• Breadboard circuit transfer

• Embedded system development

• Educational and laboratory experiments

• Sensor and interface circuit development

• Electronic repair and modification

• DIY electronics projects

• Research and development
