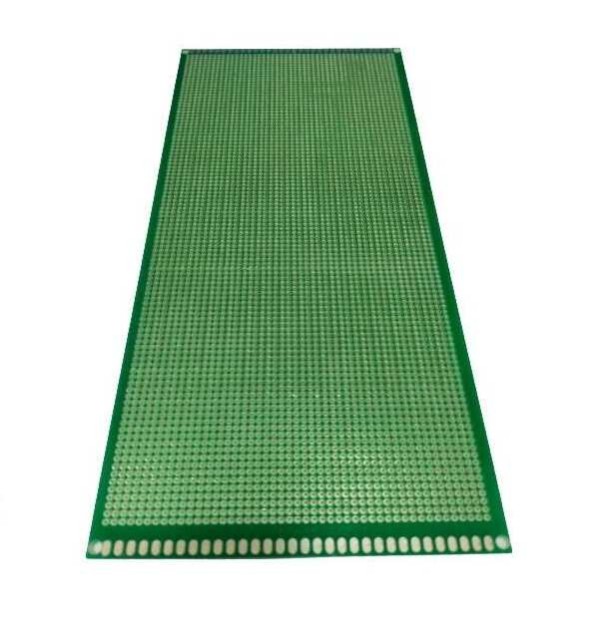

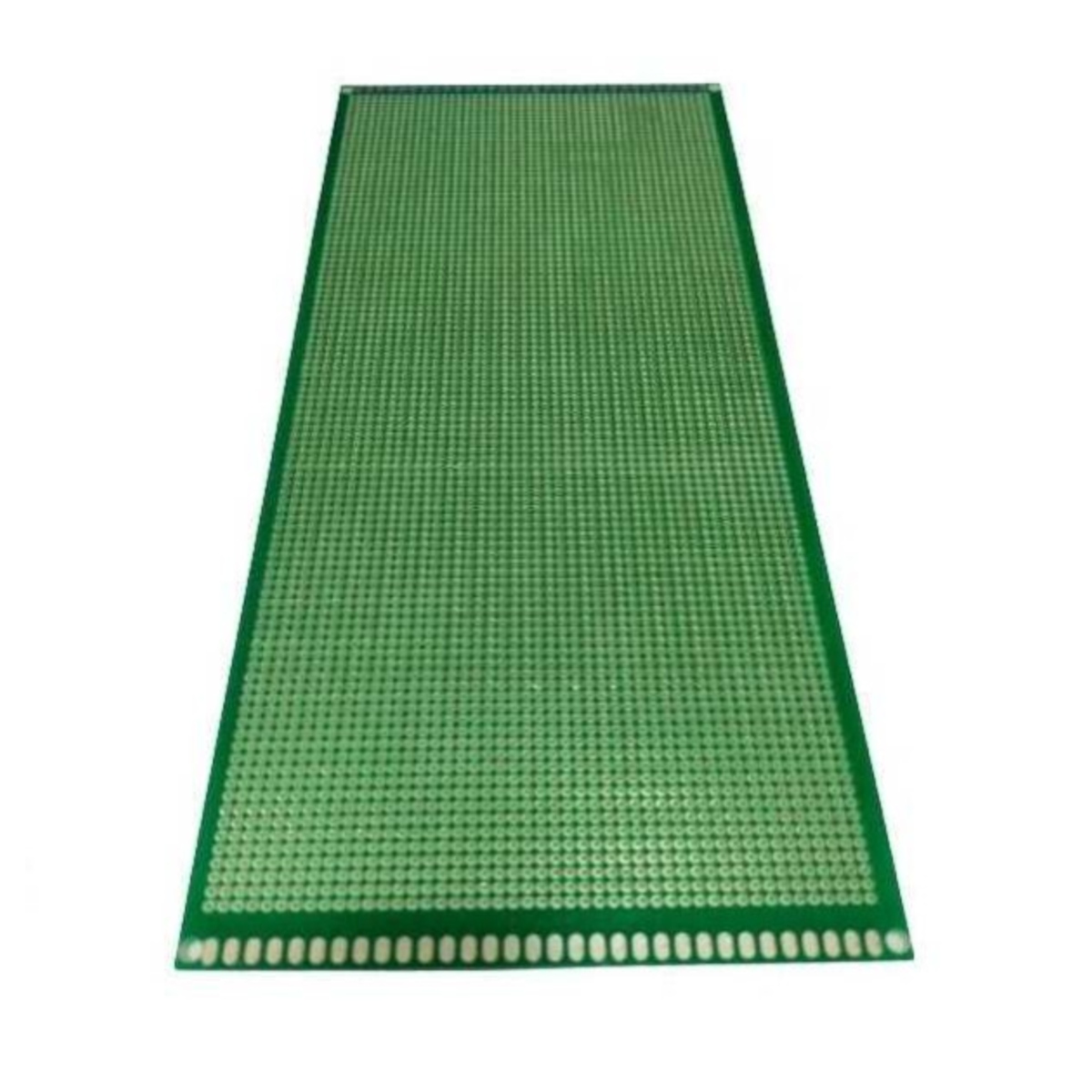

100 x 220mm Single-Sided 2mm Pitch General Purpose Dotted PCB (Prototype Perf Board)

The 100 x 220mm Single-Sided General Purpose Dotted PCB is a high-quality prototype perf board designed for building, testing, and developing custom electronic circuits using through-hole components. Featuring a 2mm hole pitch, it is ideal for compact circuit layouts that require closer component spacing than standard 2.54mm boards. The single-sided copper construction and dotted pad layout provide maximum flexibility for creating custom circuits, making it suitable for prototyping, educational projects, industrial applications, repairs, and DIY electronics.

Manufactured from premium FR4 glass epoxy, this PCB offers excellent mechanical strength, electrical insulation, and long-lasting durability, making it suitable for both professional engineers and electronics enthusiasts.

Key Features -

• Large 100 x 220mm prototype PCB

• Single-sided copper construction

• Standard 2mm hole pitch for compact component placement

• Dotted copper pad layout for flexible circuit design

• High-quality FR4 glass epoxy construction

• Easy to solder, modify, and repair

• Suitable for prototyping, testing, and educational applications

Specifications -

• Product Type: General Purpose Dotted PCB

• PCB Size: 100 x 220mm

• PCB Type: Single-Sided

• Hole Pitch: 2mm

• Pad Style: Dotted Copper Pads

• Mounting Type: Through-Hole Components

• PCB Material: FR4 Glass Epoxy

• Board Thickness: 1.6mm (Typical)

• Surface Finish: HASL (Typical)

• Application: Electronic Circuit Prototyping

Applications -

• Electronic circuit prototyping

• Embedded system development

• Industrial control circuits

• Educational and laboratory experiments

• Sensor and interface circuit development

• Electronic repair and modification

• DIY electronics projects

• Research and development
