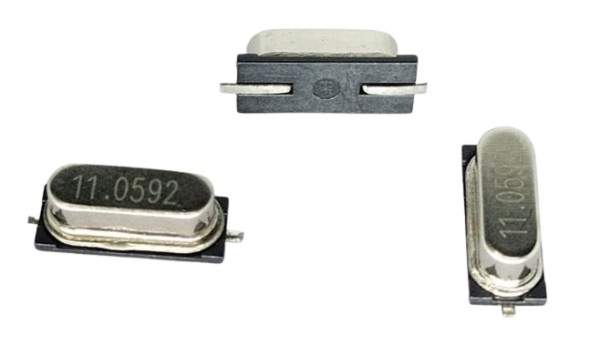

11.0592MHz SMD Crystal HC49US Surface Mount Quartz Frequency Crystal (11.0592MHz SMD Crystal Resonator)

The 11.0592MHz SMD Crystal HC49US Quartz Crystal Resonator is designed for stable frequency generation and timing applications in microcontroller systems, UART communication circuits, embedded electronics, and oscillator modules. It provides accurate oscillation performance and reliable clock signal generation in compact SMD designs.

Key Features -

• 11.0592MHz precision crystal frequency

• HC49US SMD crystal package

• Stable oscillator performance

• Surface mount design

• Low frequency drift characteristics

• Reliable long term operation

Specifications -

• Product type - Quartz Crystal Resonator

• Crystal type - Frequency control quartz crystal

• Frequency - 11.0592MHz

• Package type - HC49US SMD package

• Mounting type - Surface mount SMD

• Oscillation mode - Fundamental mode

• Load capacitance - Approx 18pF to 32pF

• Frequency stability - Approx standard crystal stability

• Operating temperature - Approx minus 20 degree C to plus 70 degree C

• Pin configuration - 2 pin crystal configuration

• Material - Quartz crystal with metal enclosure

• Additional features - Stable resonance, compact size, reliable oscillation performance

Applications -

• Microcontroller clock circuits

• UART and serial communication systems

• Oscillator circuits

• Embedded electronic projects

• Timing applications
