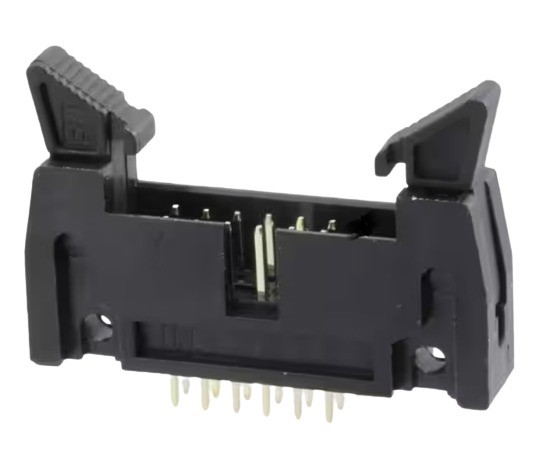

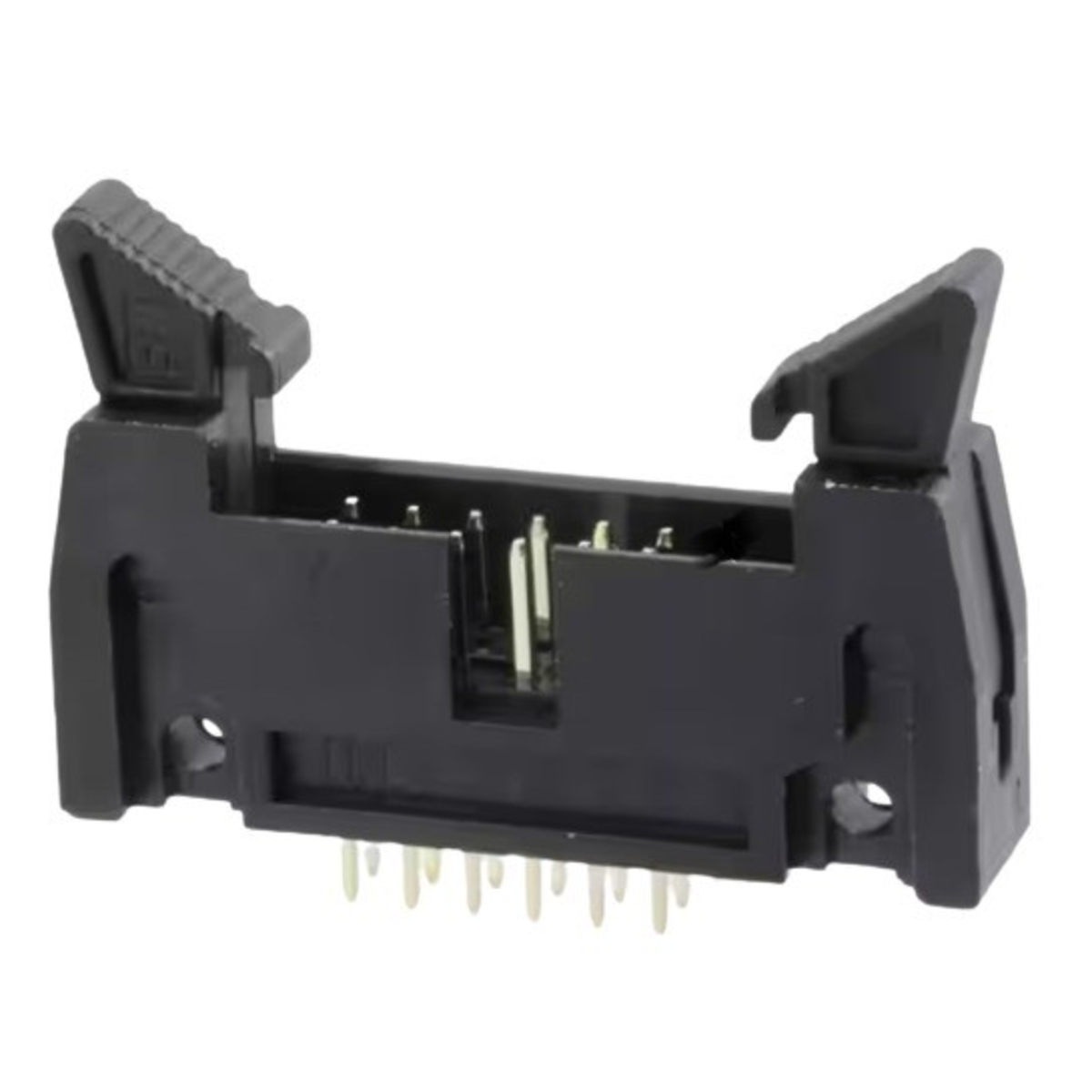

12 Pin FRC IDC Straight Male Header Connector with Lock 6x2 Pin 2.54mm (Ribbon Cable Box Header Connector)

The 12 Pin FRC IDC Straight Male Header Connector with Lock is a 6x2 dual-row PCB box header designed for reliable ribbon cable-to-PCB connections in embedded systems, industrial electronics, communication equipment, and development boards. Featuring a 2.54mm pitch and straight through-hole mounting, it provides secure mechanical retention and stable signal transmission. The integrated locking mechanism and polarized housing ensure a firm, correctly aligned connection with compatible 12-pin FRC/IDC female ribbon cable connectors.

Its durable construction makes it suitable for embedded systems, industrial control equipment, and electronic product development.

Key Features -

• 12-pin straight male header connector with lock

• 6x2 dual-row pin configuration

• Standard 2.54mm pitch spacing

• Compatible with FRC and IDC ribbon cable connectors

• Integrated locking mechanism for secure mating

• Polarized housing prevents incorrect insertion

• Through-hole PCB mounting for reliable installation

Specifications -

• Product Type: FRC IDC Male Header Connector

• Number of Pins: 12

• Pin Configuration: 6x2 Dual Row

• Pitch: 2.54mm

• Orientation: Straight

• Mounting Type: Through-Hole PCB Mount

• Connector Type: FRC/IDC Compatible Box Header

• Contact Material: Tin-Plated Copper Alloy

• Housing Material: High-Temperature Thermoplastic

• Application: Ribbon Cable to PCB Connection

Applications -

• Ribbon cable interfacing

• Embedded system connections

• Industrial control electronics

• PCB communication interfaces

• Microcontroller development boards

• Computer peripheral connections

• Electronic prototyping

• DIY electronic projects
