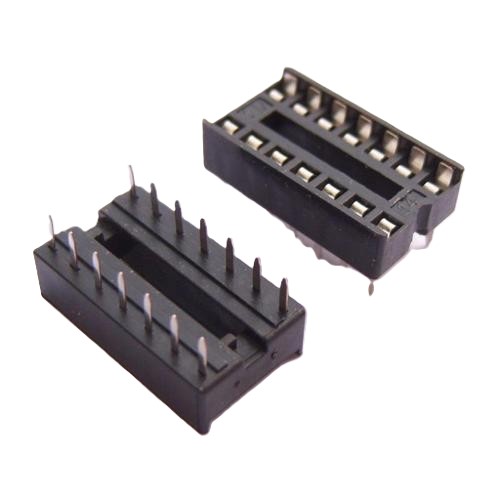

14 Pin IC Socket (DIP IC Socket Through Hole)

The 14 Pin IC Socket is a high-quality through-hole DIP (Dual In-line Package) socket designed for securely mounting 14-pin integrated circuits (ICs) on printed circuit boards. It enables easy insertion and removal of ICs without soldering them directly to the PCB, protecting sensitive components from heat damage during installation, replacement, or testing.

Constructed with a durable plastic body and high-quality phosphor bronze contacts, the socket provides reliable electrical connections, low contact resistance, and long service life. It is widely used in embedded systems, development boards, electronic prototyping, repair work, and educational projects.

Key Features -

• Suitable for 14-pin DIP integrated circuits

• Through-hole PCB mounting

• Easy IC insertion and removal

• Protects ICs from soldering heat damage

• Durable heat-resistant plastic housing

• Low contact resistance

• Reliable electrical connection

• Reusable and long service life

• Ideal for prototyping and repairs

Specifications -

• Product Type: IC Socket

• Number of Pins: 14

• Package Compatibility: DIP-14 (Dual In-line Package)

• Mounting Type: Through Hole

• Contact Material: Phosphor Bronze (Model Dependent)

• Housing Material: Heat-Resistant Plastic

• Contact Finish: Tin-Plated (Model Dependent)

• Pitch: 2.54mm (0.1 Inch)

Applications -

• Logic IC circuits

• Timer and amplifier ICs

• Microcontroller development boards

• PCB prototyping

• Electronic repair and maintenance

• DIY electronic projects

• Educational laboratories

• Industrial electronic equipment
