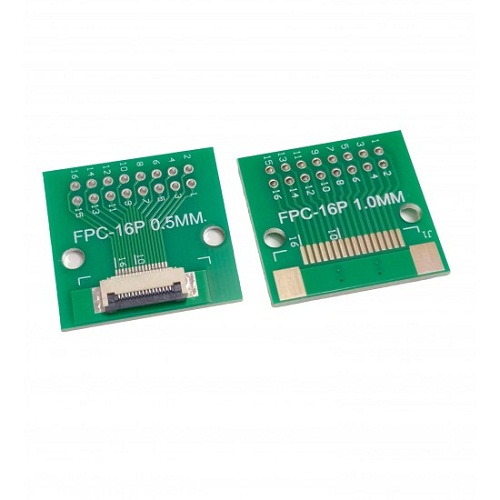

16 Pin 0.5mm FFC FPC Adapter Board with Soldered Connector (2.54mm Breakout PCB FR-4)

The 16 Pin 0.5mm FFC/FPC Adapter Board with Soldered Connector is a compact breakout board designed to simplify the connection of 16-pin Flat Flexible Cable (FFC) and Flexible Printed Circuit (FPC) cables to standard 2.54mm pitch headers or prototype boards. The connector is pre-soldered for easy use, eliminating the need for fine-pitch soldering. Manufactured from durable 1.6mm FR-4 fiberglass with a high-quality green solder mask and tin-plated finish, this adapter is ideal for prototyping, testing, repair, and embedded electronics development.

Key Features -

• Pre-soldered 16-pin FFC/FPC connector

• Supports 0.5mm pitch flat flexible cables

• Converts fine-pitch connections to 2.54mm breakout spacing

• Durable 1.6mm FR-4 fiberglass PCB

• High-quality green solder mask

• Tin-plated PCB finish for reliable soldering

• Compact and lightweight design

• Easy integration with breadboards and prototype PCBs

• Suitable for development, testing, and repair work

• Ideal for embedded and electronic projects

Specifications -

• Product Type - FFC/FPC Adapter Board

• Number of Pins - 16

• FFC/FPC Pitch - 0.5mm

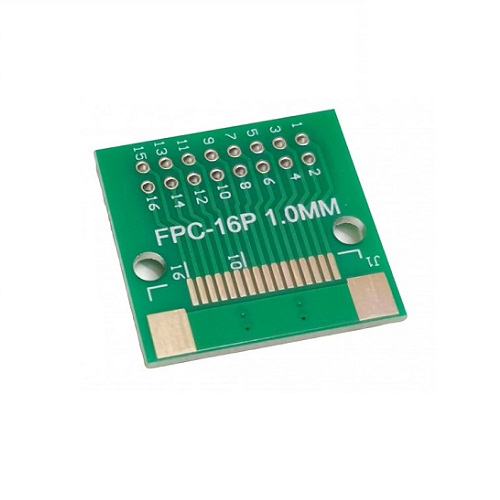

• Aperture - 1.0mm

• Breakout Hole Pitch - 2.54mm

• PCB Thickness - 1.6mm

• Board Material - FR-4 Fiberglass

• Surface Finish - Tin Plated

• Solder Mask - Green

• Connector Status - Pre-Soldered

Applications -

• LCD display interfacing

• Camera module connections

• Embedded system development

• Prototype circuit design

• Flexible cable testing

• Electronics repair

• Development boards

• Breadboard prototyping

• Microcontroller projects

• Custom PCB development
