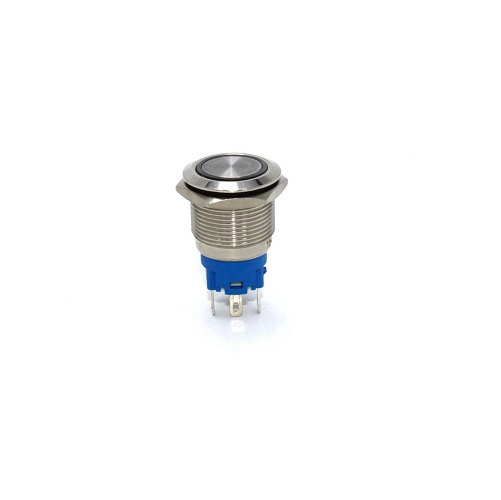

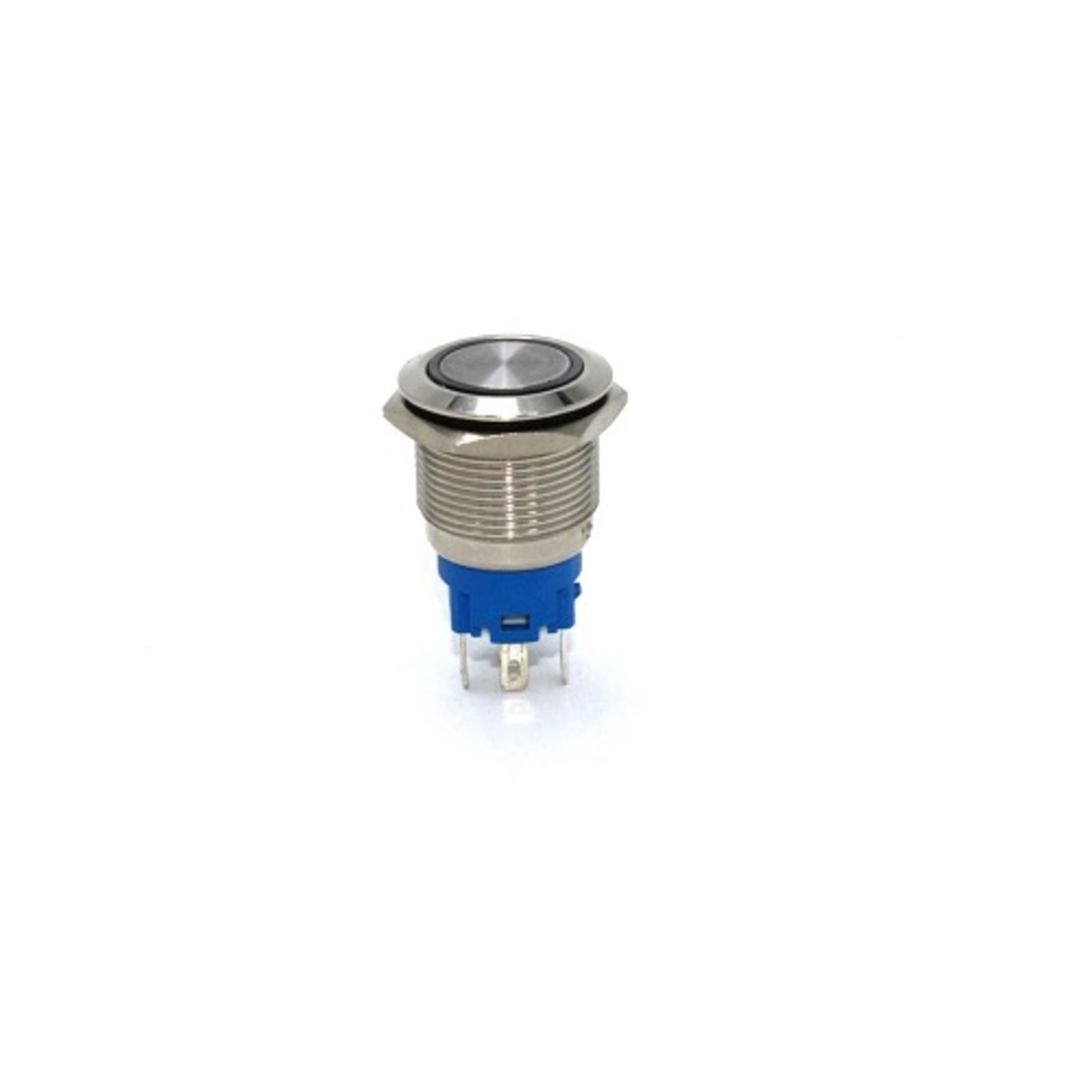

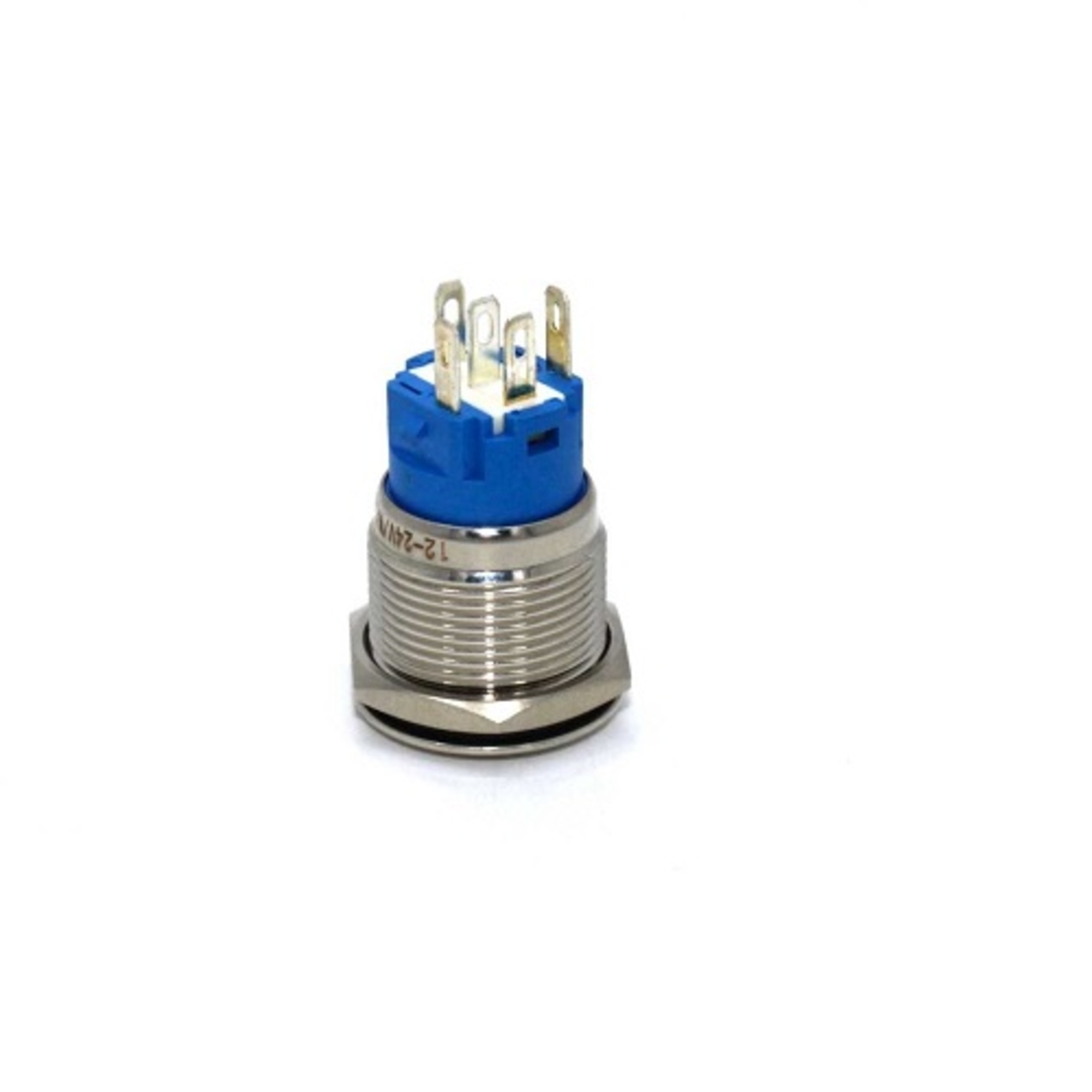

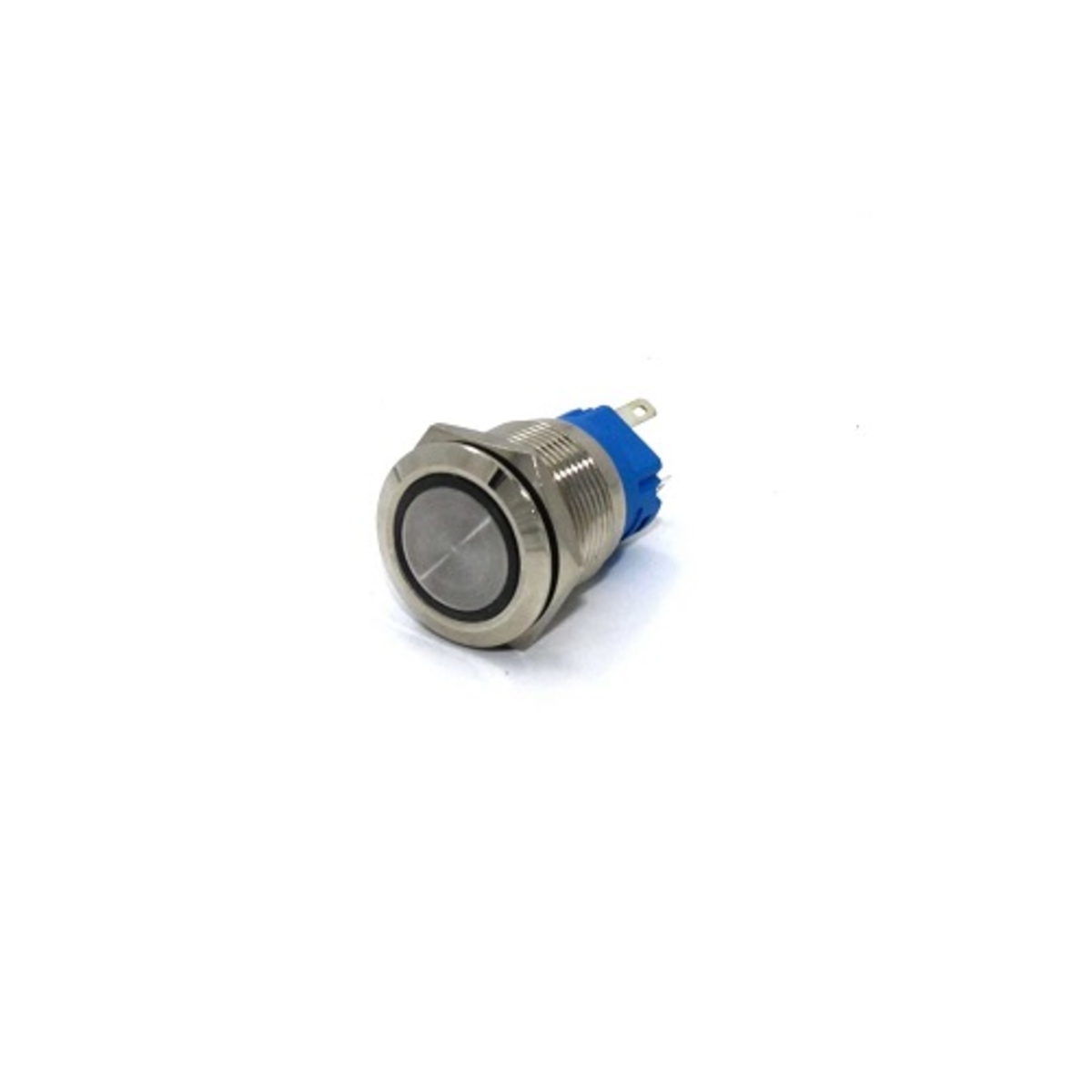

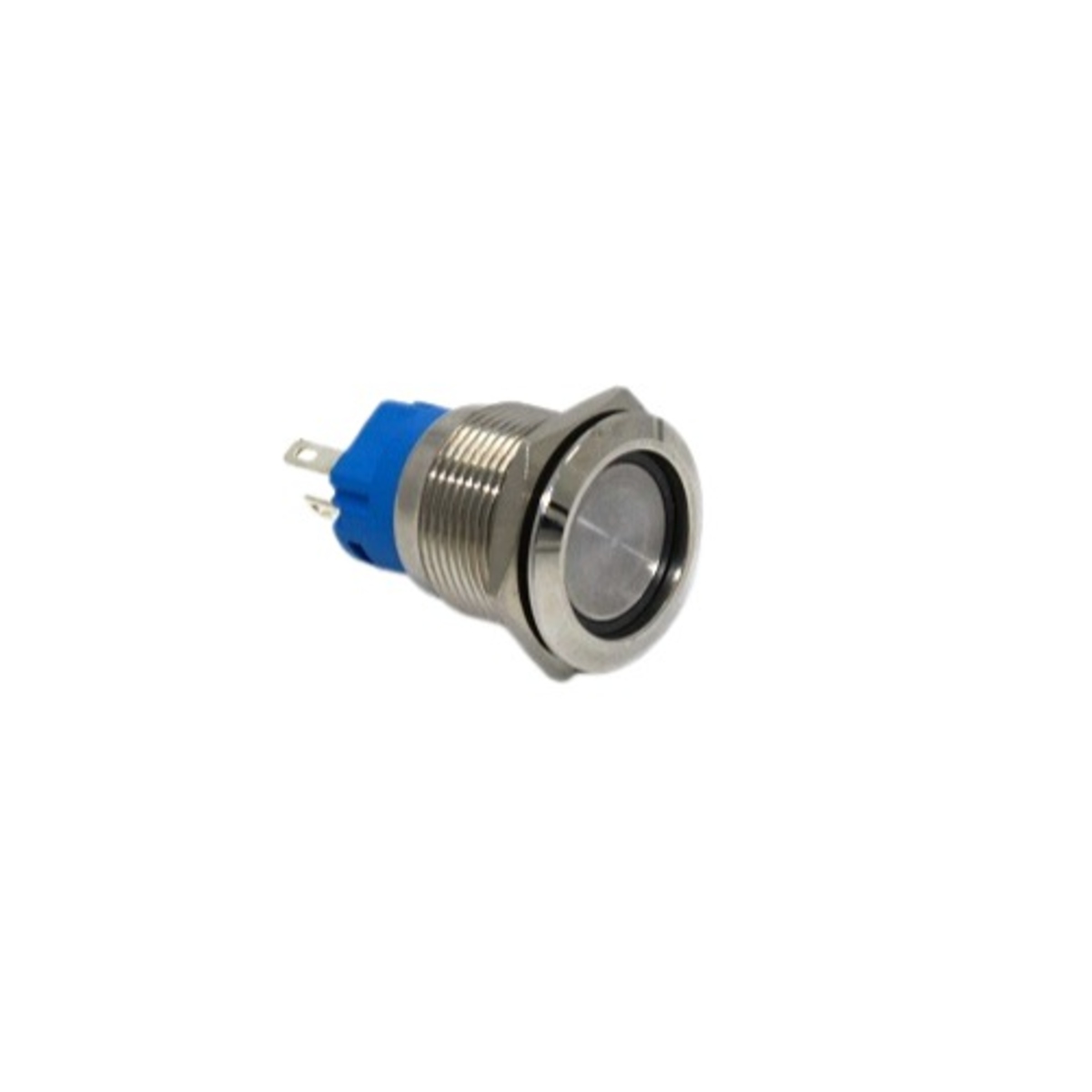

16mm Latching Metal Push Button Switch (12V to 24V White LED, Power Symbol)

This 16mm latching metal push button switch features a flat head design with an illuminated white LED power symbol. It provides C, NO and NC contacts for flexible switching and operates with a push to latch and push again to release mechanism. The stainless steel body and IP65 waterproof rating make it suitable for control panels, machinery, automation equipment and other demanding applications.

Key Features -

• 16mm metal push button switch

• Latching ON/OFF operation

• White LED illumination

• Illuminated power symbol

• LED operating voltage from 12V to 24V

• Flat head design

• 1 pole switching configuration

• C, NO and NC terminals

• Stainless steel body

• IP65 waterproof rating

• 4A 220V AC maximum switch load rating

• Mechanical life up to 50,000 cycles

• LED life up to 50,000 working hours

Specifications -

• Product Type: Metal Push Button Switch

• Switch Type: Latching

• Head Type: Flat Head

• Mounting Size: 16mm

• Switch Thread Size: 19mm

• Number of Poles: 1 Pole

• Contact Terminals: C, NO and NC

• Maximum Load Rating: 4A 220V AC

• LED Color: White

• LED Symbol: Power Symbol

• LED Operating Voltage: 12V to 24V

• LED Life: 50,000 Working Hours

• Switch Operation Life: 50,000 Cycles

• Body Material: Stainless Steel

• Waterproof Rating: IP65

Applications -

• Industrial control panels

• Machinery controls

• Automation equipment

• DIY electronics

• Electrical control systems

• Instrumentation panels

• Power control applications

• Equipment start and stop controls

• Automotive and custom control panels

• Electronic enclosures
