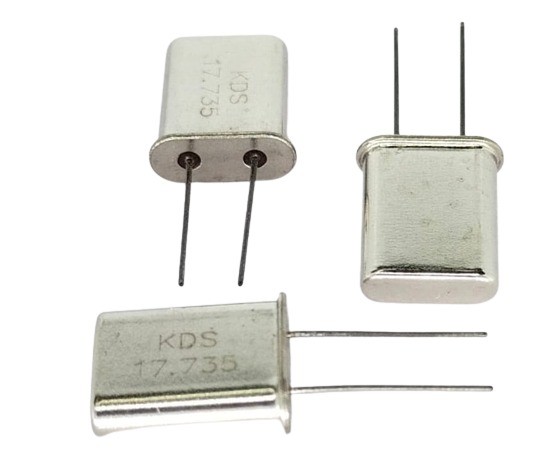

17.735MHz Crystal Full Size HC49U Through Hole Quartz Frequency Crystal (17.735MHz Crystal Resonator)

The 17.735MHz Crystal Full Size HC49U Quartz Crystal Resonator is designed for stable frequency generation and timing applications in communication systems, embedded electronics, oscillator circuits, and microcontroller based applications. It provides accurate oscillation performance and reliable clock signal generation.

Key Features -

• 17.735MHz precision crystal frequency

• Full size HC49U metal package

• Stable oscillator performance

• Through hole mounting design

• Low frequency drift characteristics

• Reliable long term operation

Specifications -

• Product type - Quartz Crystal Resonator

• Crystal type - Frequency control quartz crystal

• Frequency - 17.735MHz

• Package type - HC49U full size through hole package

• Mounting type - Through hole mounting

• Oscillation mode - Fundamental mode

• Load capacitance - Approx 18pF to 32pF

• Frequency stability - Approx standard crystal stability

• Operating temperature - Approx minus 20 degree C to plus 70 degree C

• Pin configuration - 2 pin crystal configuration

• Material - Quartz crystal with metal enclosure

• Additional features - Stable resonance, low drift response, reliable oscillation performance

Applications -

• Communication systems

• Oscillator circuits

• Embedded electronic systems

• Timing applications

• Frequency control circuits
