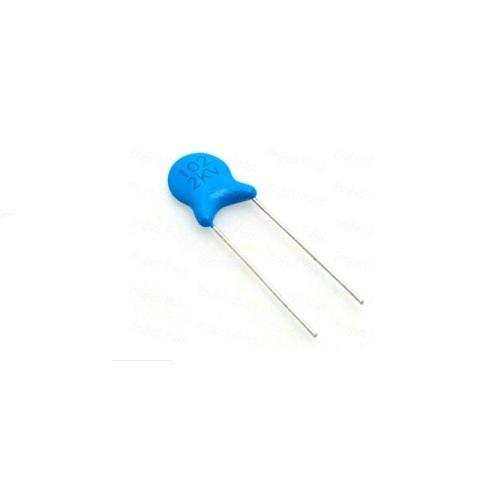

1K 0.001µF (1nF) 2kV High Voltage Ceramic Disc Capacitor

The 1K 0.001µF (1nF) High Voltage Ceramic Disc Capacitor is designed for high-voltage filtering, coupling, bypassing, pulse circuits, and noise suppression applications. With a voltage rating of 2kV and a ceramic dielectric construction, it offers excellent reliability, insulation performance, and stability in demanding electronic and industrial environments.

Key Features -

• Capacitance value of 0.001µF (1nF / 1000pF)

• High voltage rating of 2kV DC

• Ceramic disc dielectric construction

• Through-hole radial lead mounting

• High insulation resistance and reliability

• Suitable for high-voltage and pulse applications

Specifications -

• Product type - Ceramic Disc Capacitor

• Capacitance - 0.001µF (1nF / 1000pF)

• Capacitor code - 1K

• Voltage rating - 2kV DC

• Withstanding voltage - 4kV

• Capacitance tolerance - ±10%

• Temperature coefficient - B

• Package type - Radial Disc

• Mounting type - Through Hole

• Number of pins - 2

• Lead pitch - 5.0mm

• Diameter - 7.5mm

• Lead style - Straight Leads

• Dielectric material - Ceramic

Applications -

• High-voltage power supplies

• EMI and noise suppression circuits

• Pulse and timing circuits

• Snubber networks

• Industrial control equipment

• General-purpose high-voltage electronic applications
