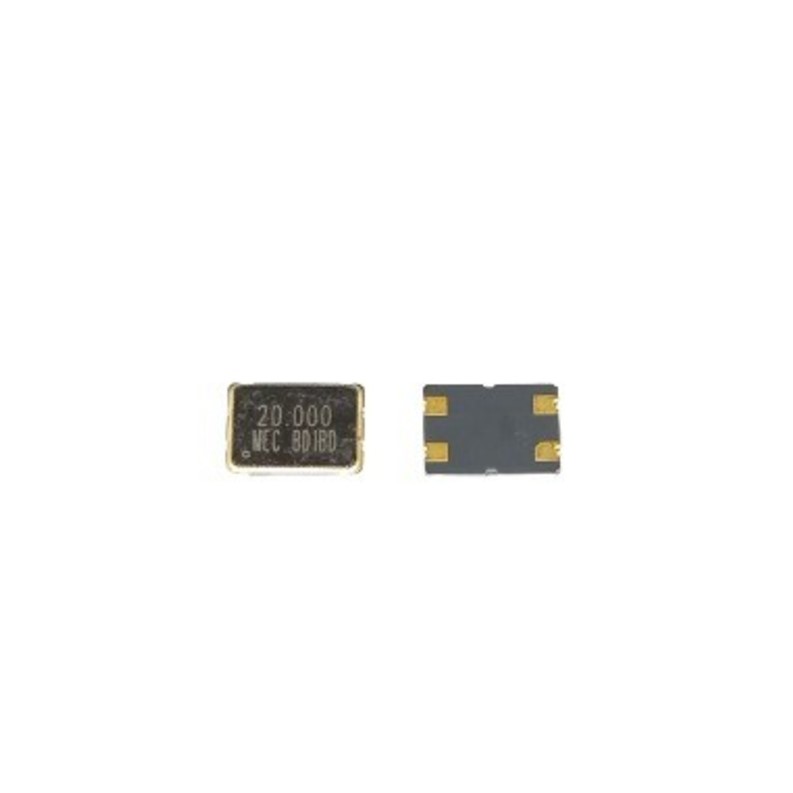

20MHz 4 Pin 5x7 Crystal Oscillator SMD (Surface Mount Quartz Crystal Frequency Oscillator)

The 20MHz 4 Pin 5x7 Crystal Oscillator is a surface mount frequency control device designed to provide a stable and accurate clock signal for microcontrollers, digital circuits, communication equipment, and embedded systems. Built using quartz crystal technology, it delivers reliable frequency generation with excellent stability, making it ideal for timing and synchronization applications.

Key Features -

• Stable 20MHz output frequency

• Compact 5x7mm SMD package

• 4-pin surface mount design

• High frequency accuracy and stability

• Low phase noise characteristics

• Suitable for digital and embedded systems

• Reliable quartz crystal oscillator construction

Specifications -

• Product type - Crystal oscillator

• Oscillator frequency - 20MHz

• Package type - 5x7 SMD

• Pin configuration - 4 Pin

• Mounting type - Surface Mount Device (SMD)

• Oscillator technology - Quartz crystal based

• Output type - Clock signal output

• Frequency stability - Suitable for precision timing applications

• Application type - Clock generation and synchronization

• Additional features - Compact size, low power consumption, and reliable operation

Applications -

• Microcontroller clock circuits

• Embedded system designs

• Communication equipment

• Digital electronic circuits

• Industrial control systems

• Data acquisition devices

• Timing and synchronization applications
