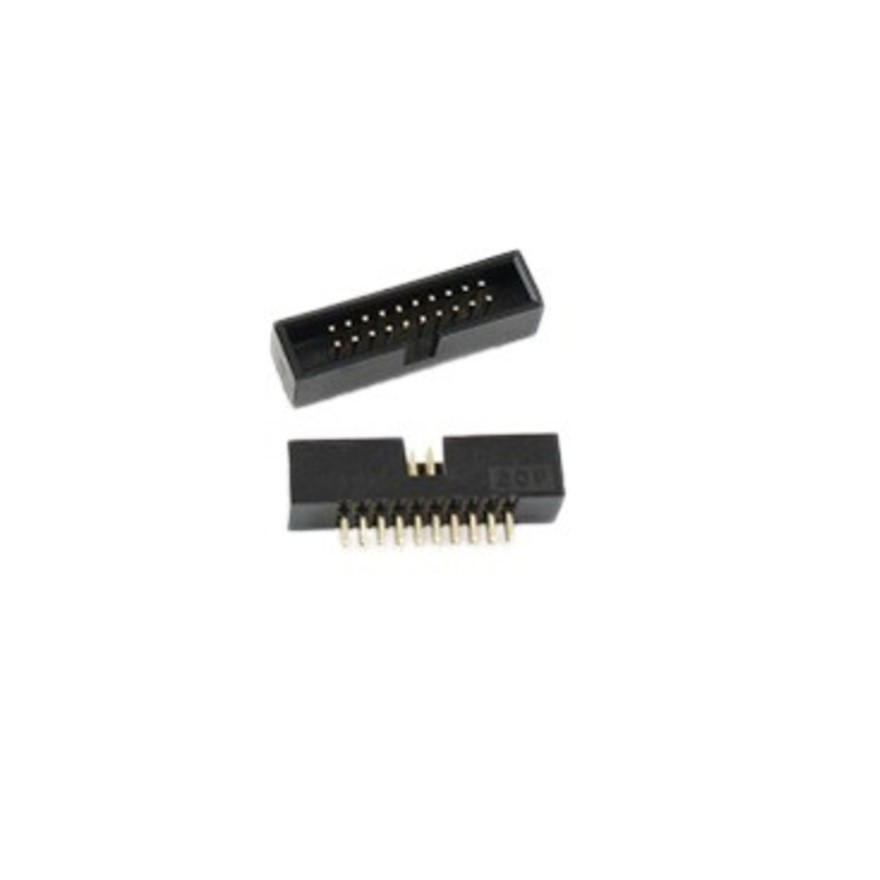

20 Pin IDC Box Header Connector 10x2 Pin 1.27mm Straight Male PCB Connector (FRC IDC Box Header)

The 20 Pin IDC Box Header Connector is a straight male PCB-mounted connector featuring a 10x2 pin configuration with 1.27mm pitch spacing. Designed for use with IDC and FRC ribbon cables, it provides reliable board-to-board and cable-to-board connections in embedded systems, industrial electronics, communication equipment, and computer peripherals.

Key Features -

• 20-pin box header connector

• 10x2 pin configuration

• 1.27mm pin pitch

• Straight male PCB mounting

• Polarized box header design

• Compatible with IDC ribbon cables

• Reliable signal transmission

• Durable insulated housing

• Easy cable alignment

• Suitable for compact PCB designs

Specifications -

• Product type - IDC Box Header Connector

• Connector type - Straight Male Header

• Number of pins - 20 Pin

• Pin configuration - 10x2

• Pitch spacing - 1.27mm

• Mounting type - PCB Through Hole

• Contact type - Male

• Housing type - Box Header

• Cable compatibility - IDC and FRC Ribbon Cables

• Orientation - Straight Vertical

Applications -

• Embedded systems

• Development boards

• Industrial control equipment

• Communication devices

• Computer peripherals

• Data acquisition systems

• PCB interconnections

• Electronic instrumentation
