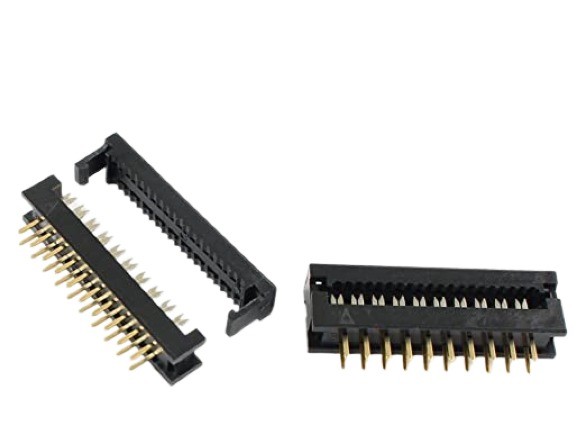

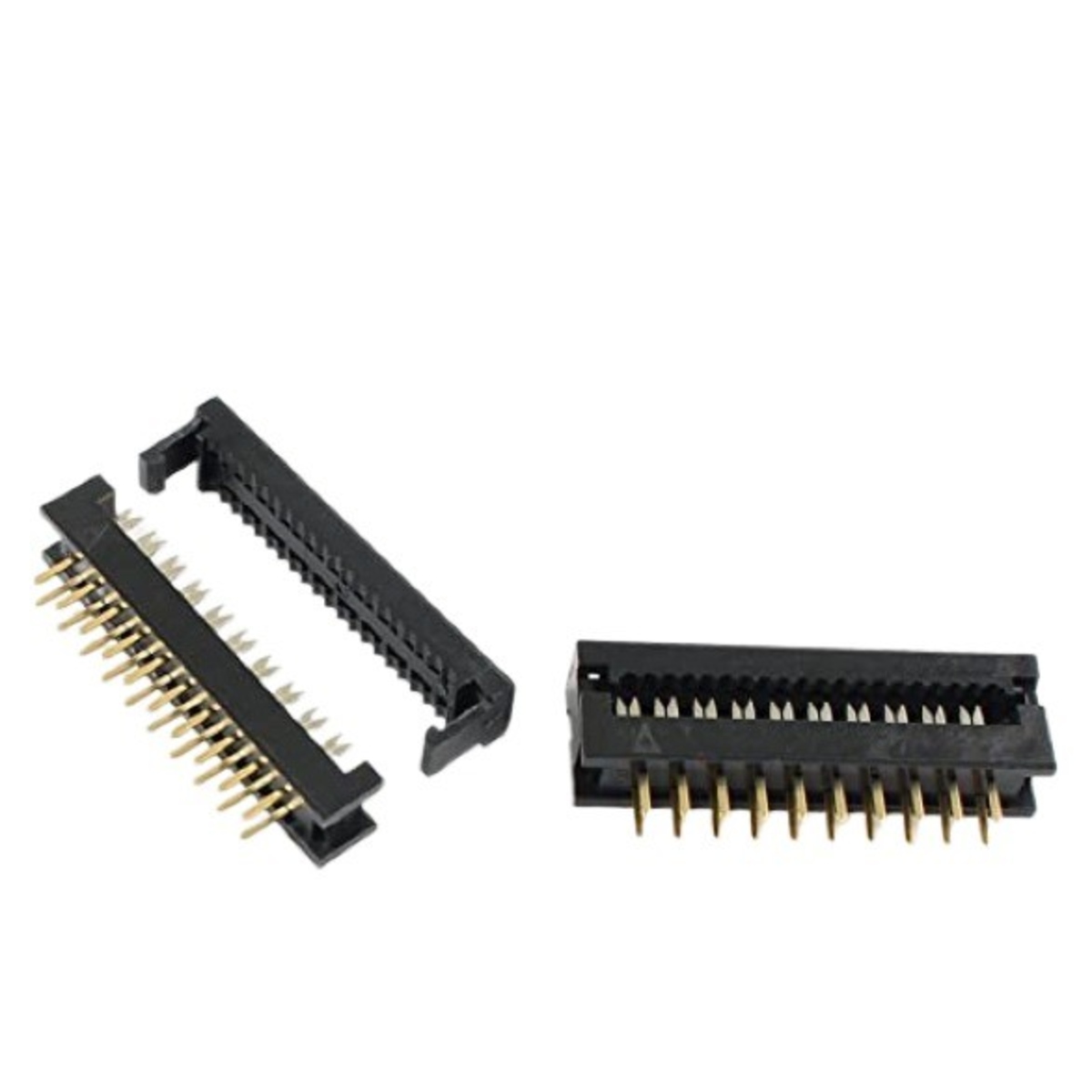

20 Pin FRC/IDC Box Transition Straight Male Connector 10x2 Pin 2.54mm for Ribbon Cable (IDC Box Header Connector)

The 20 Pin FRC/IDC Box Transition Straight Male Connector is a 10x2 dual-row PCB transition box header designed for reliable ribbon cable-to-PCB connections in embedded systems, industrial electronics, communication equipment, and microcontroller development boards. Featuring a 2.54mm pitch and straight through-hole mounting, it provides secure mechanical retention and stable signal transmission. Its polarized transition box design ensures correct connector orientation and reliable mating with compatible 20-pin FRC/IDC female ribbon cable connectors.

The robust construction makes it suitable for industrial control systems, computer peripherals, and electronic prototyping requiring dependable wire-to-board connectivity.

Key Features -

• 20-pin straight male box transition connector

• 10x2 dual-row pin configuration

• Standard 2.54mm pitch spacing

• Compatible with FRC and IDC ribbon cable connectors

• Polarized transition housing for correct alignment

• Through-hole PCB mounting for secure installation

• Reliable electrical and mechanical connection

Specifications -

• Product Type: FRC/IDC Box Transition Connector

• Model: 20 Pin Straight Male 10x2

• Number of Pins: 20

• Pin Configuration: 10x2 Dual Row

• Pitch: 2.54mm

• Orientation: Straight

• Mounting Type: Through-Hole PCB Mount

• Connector Type: FRC/IDC Compatible Transition Header

• Contact Material: Tin-Plated Copper Alloy

• Housing Material: High-Temperature Thermoplastic

Applications -

• Ribbon cable interconnections

• Embedded system interfaces

• Microcontroller development boards

• Computer peripheral connections

• Industrial electronic control systems

• Communication equipment

• Electronic prototyping

• DIY electronic projects
