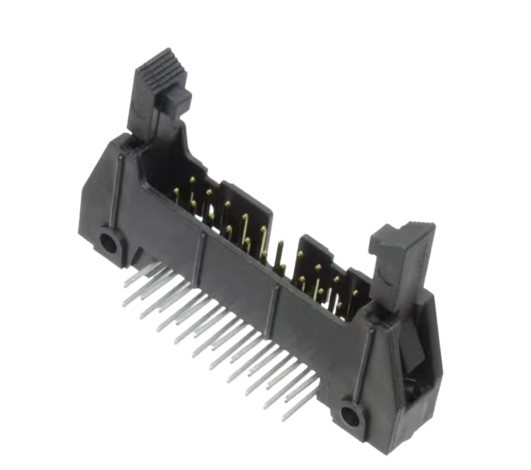

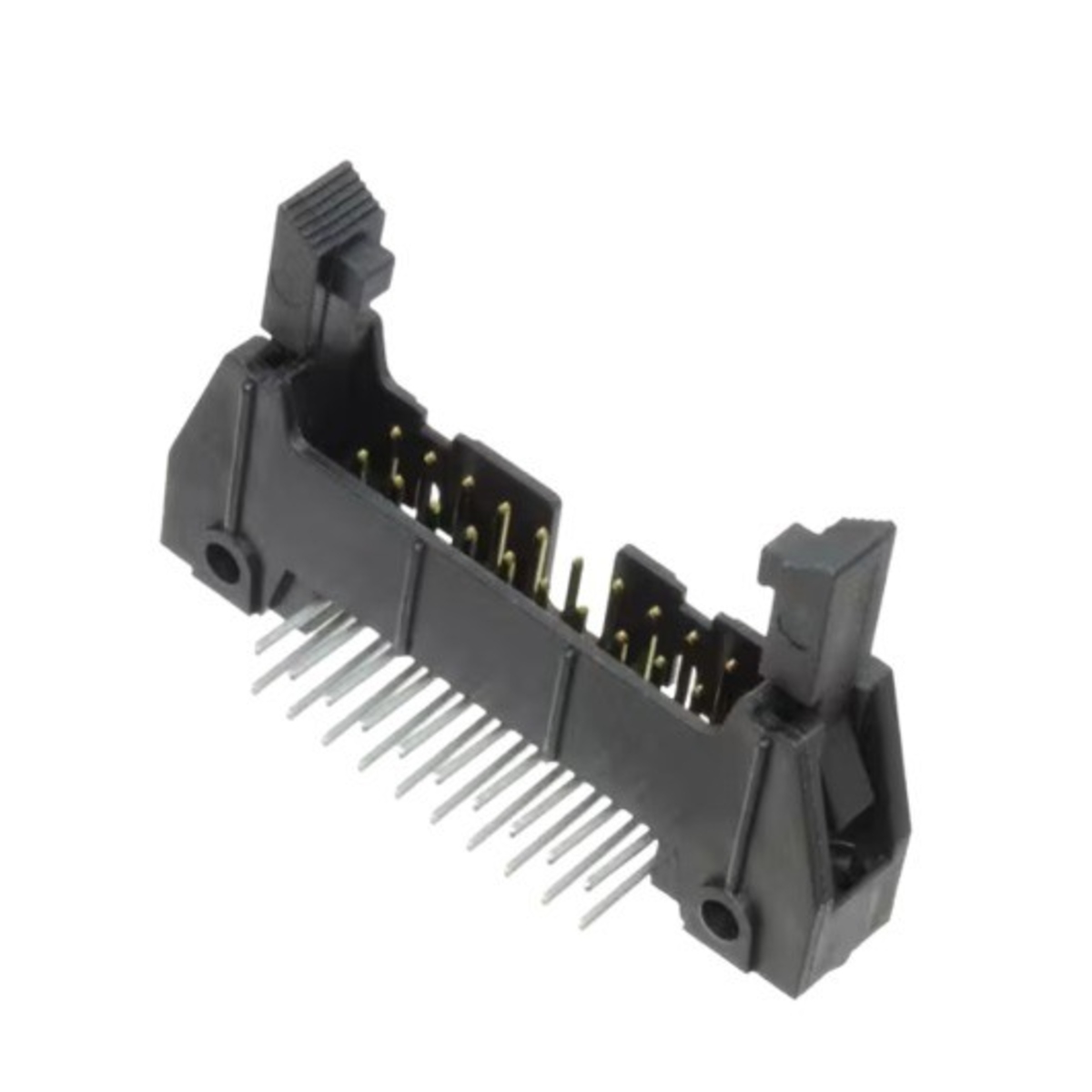

20 Pin FRC IDC Right Angle Male Connector with Lock 10x2 Pin 2.54mm PCB Header (20 Pin IDC Header)

The 20 Pin FRC IDC Right Angle Male Connector with Lock is a 10x2 dual-row PCB box header designed for reliable ribbon cable-to-PCB connections in embedded systems, industrial electronics, communication equipment, and development boards. Featuring a 2.54mm pitch and right-angle through-hole mounting, it provides secure mechanical retention while optimizing PCB space in compact electronic designs. The integrated locking mechanism and polarized housing ensure a firm, correctly aligned connection with compatible 20-pin FRC/IDC female ribbon cable connectors, delivering stable and dependable signal transmission.

Its robust construction makes it suitable for industrial control systems, communication devices, computer peripherals, and electronic prototyping.

Key Features -

• 20-pin right-angle male IDC header with lock

• 10x2 dual-row pin configuration

• Standard 2.54mm pitch spacing

• Integrated locking mechanism for secure mating

• Compatible with FRC and IDC ribbon cable connectors

• Polarized housing prevents incorrect insertion

• Through-hole PCB mounting for reliable installation

Specifications -

• Product Type: IDC Box Header Connector

• Connector Type: FRC IDC Male Header

• Number of Pins: 20

• Pin Configuration: 10x2 Dual Row

• Pitch: 2.54mm

• Header Type: Right Angle Male Header with Lock

• Mounting Type: Through-Hole PCB Mount

• Contact Material: Tin-Plated Copper Alloy

• Housing Material: High-Temperature Thermoplastic

• Application: Ribbon Cable to PCB Connection

Applications -

• PCB interconnections

• Ribbon cable assemblies

• Embedded electronic systems

• Industrial control circuits

• Communication equipment

• Microcontroller development boards

• Computer peripheral interfaces

• DIY electronic projects
