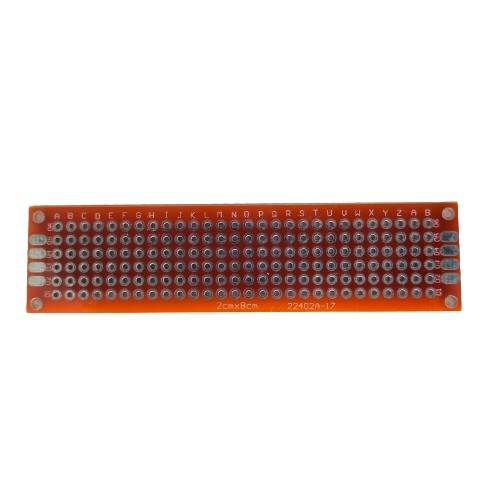

20 x 80mm Single-Sided 2.54mm Pitch General Purpose Dotted PCB (Prototype Perf Board)

The 20 x 80mm Single-Sided General Purpose Dotted PCB is a compact prototype perf board designed for assembling and testing electronic circuits using through-hole components. Featuring a 2.54mm (0.1 inch) hole pitch, it is compatible with standard resistors, capacitors, transistors, IC sockets, headers, connectors, and other through-hole components. The dotted copper pad layout provides maximum flexibility for creating custom circuits, making it ideal for prototyping, educational projects, repairs, and DIY electronics.

Manufactured from durable FR4 glass epoxy, this PCB offers excellent mechanical strength and reliable electrical insulation for long-term use.

Key Features -

• Compact 20 x 80mm prototype PCB

• Single-sided copper construction

• Standard 2.54mm hole pitch for through-hole components

• Dotted pad layout for flexible circuit design

• High-quality FR4 glass epoxy material

• Easy to solder and modify

• Suitable for prototyping, testing, and educational projects

Specifications -

• Product Type: General Purpose Dotted PCB

• PCB Size: 20 x 80mm

• PCB Type: Single-Sided

• Hole Pitch: 2.54mm (0.1 Inch)

• Pad Style: Dotted Copper Pads

• Mounting Type: Through-Hole Components

• PCB Material: FR4 Glass Epoxy

• Board Thickness: 1.6mm (Typical)

• Surface Finish: HASL (Typical)

• Application: Electronic Circuit Prototyping

Applications -

• Electronic circuit prototyping

• DIY electronics projects

• Educational and laboratory experiments

• Breadboard circuit transfer

• Sensor and module interface circuits

• Repair and modification projects

• Embedded system development

• Hobby electronics
