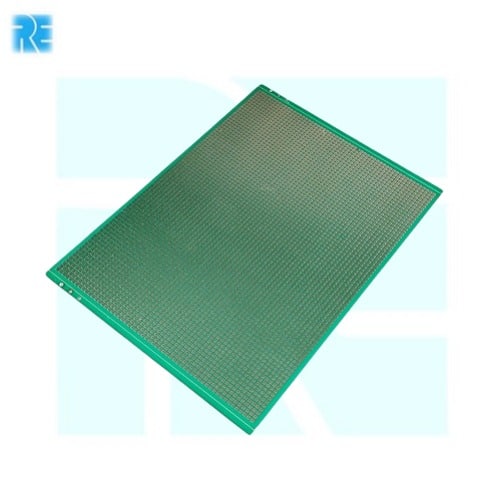

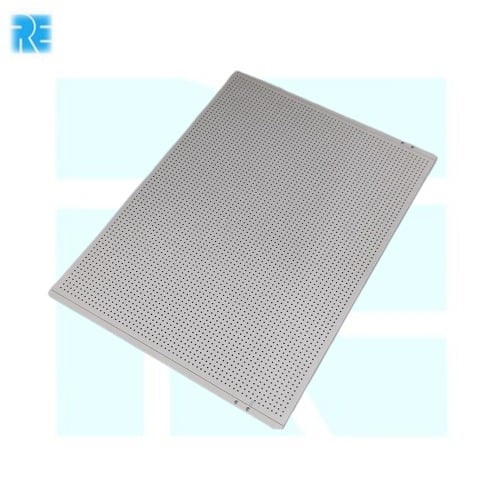

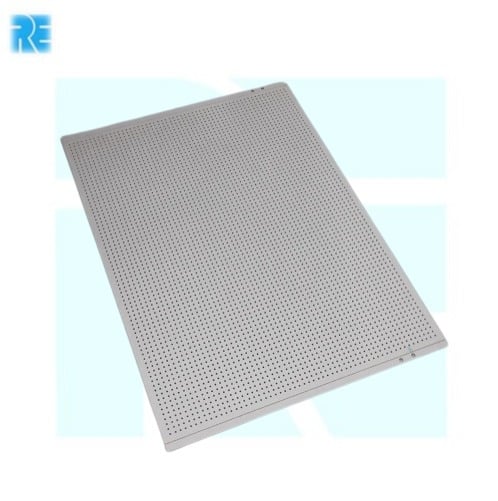

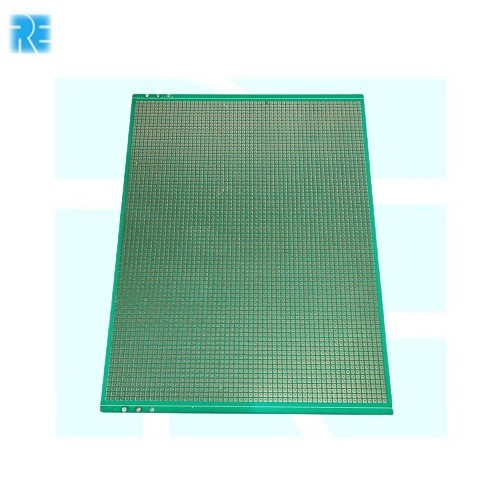

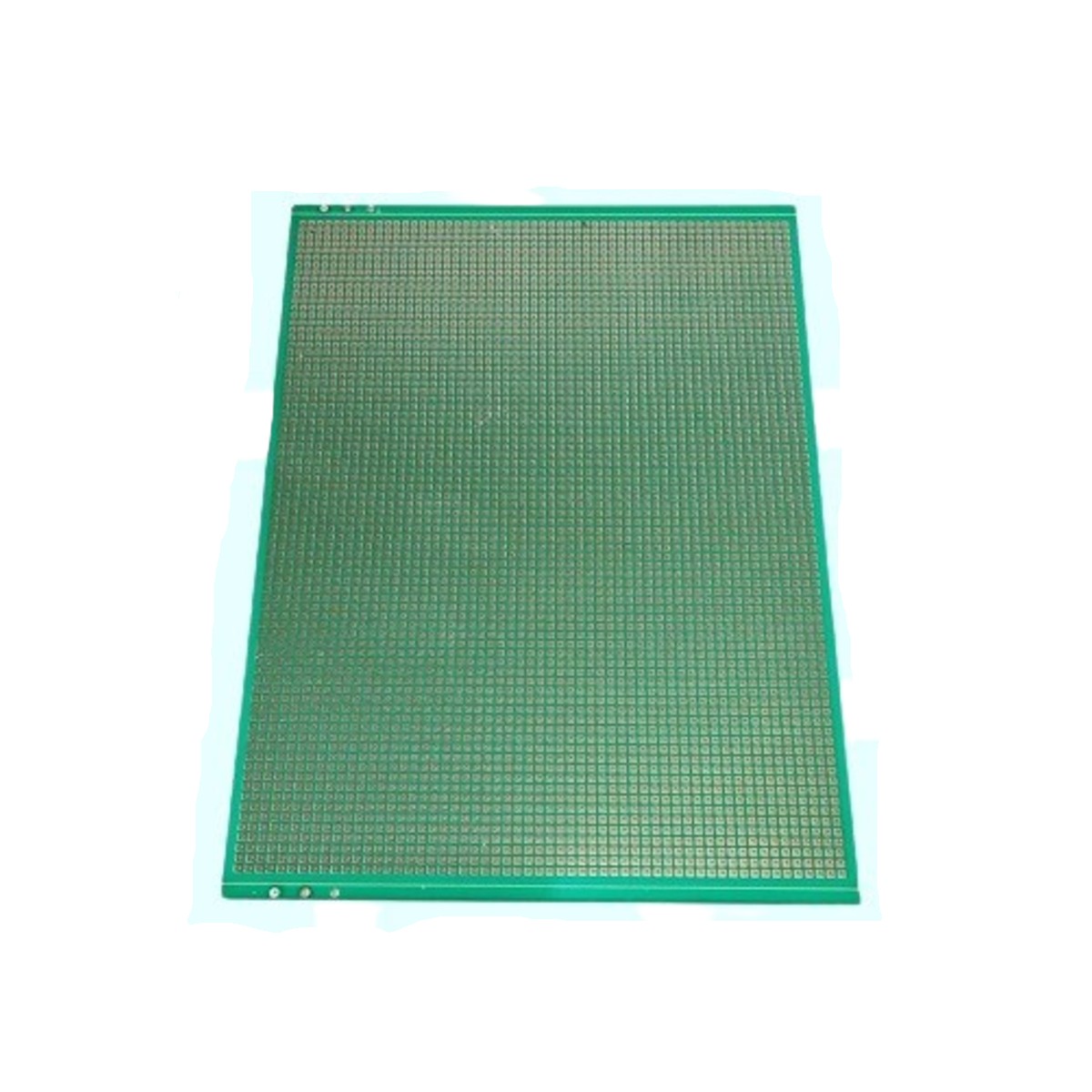

200 x 150mm Single-Sided General Purpose Dotted PCB (Prototype Perf Board)

The 200 x 150mm Single-Sided General Purpose Dotted PCB is a large prototype perf board designed for assembling, testing, and developing electronic circuits using through-hole components. Featuring a general-purpose dotted copper pad layout, it provides maximum flexibility for creating custom circuit connections, making it ideal for prototyping, educational projects, repairs, and DIY electronics. Its single-sided copper construction allows easy soldering, circuit modification, and rapid prototype development.

Manufactured from high-quality PCB material, this board offers reliable electrical performance and durability, making it suitable for engineers, students, technicians, and electronics enthusiasts working on custom electronic circuit development.

Key Features -

• Large 200 x 150mm prototype PCB

• Single-sided copper construction

• General-purpose dotted copper pad layout

• Compatible with standard through-hole electronic components

• Easy to solder, modify, and repair

• Suitable for breadboard circuit transfer

• Ideal for large prototype and educational projects

Specifications -

• Product Type: General Purpose Dotted PCB

• PCB Size: 200 x 150mm

• PCB Type: Single-Sided

• Pad Style: Dotted Copper Pads

• Mounting Type: Through-Hole Components

• Copper Layer: Single-Sided

• Board Thickness: 1.6mm (Typical)

• Surface Finish: HASL (Typical)

• Application: Electronic Circuit Prototyping

Applications -

• Electronic circuit prototyping

• Breadboard circuit transfer

• Embedded system development

• Educational and laboratory experiments

• Sensor and interface circuit development

• Electronic repair and modification

• DIY electronics projects

• Industrial control circuit development

• Research and development
