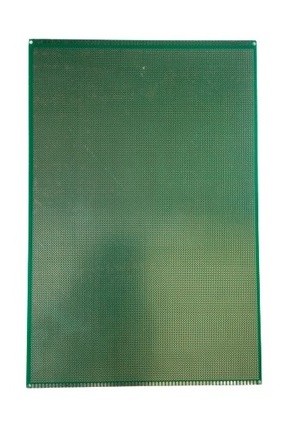

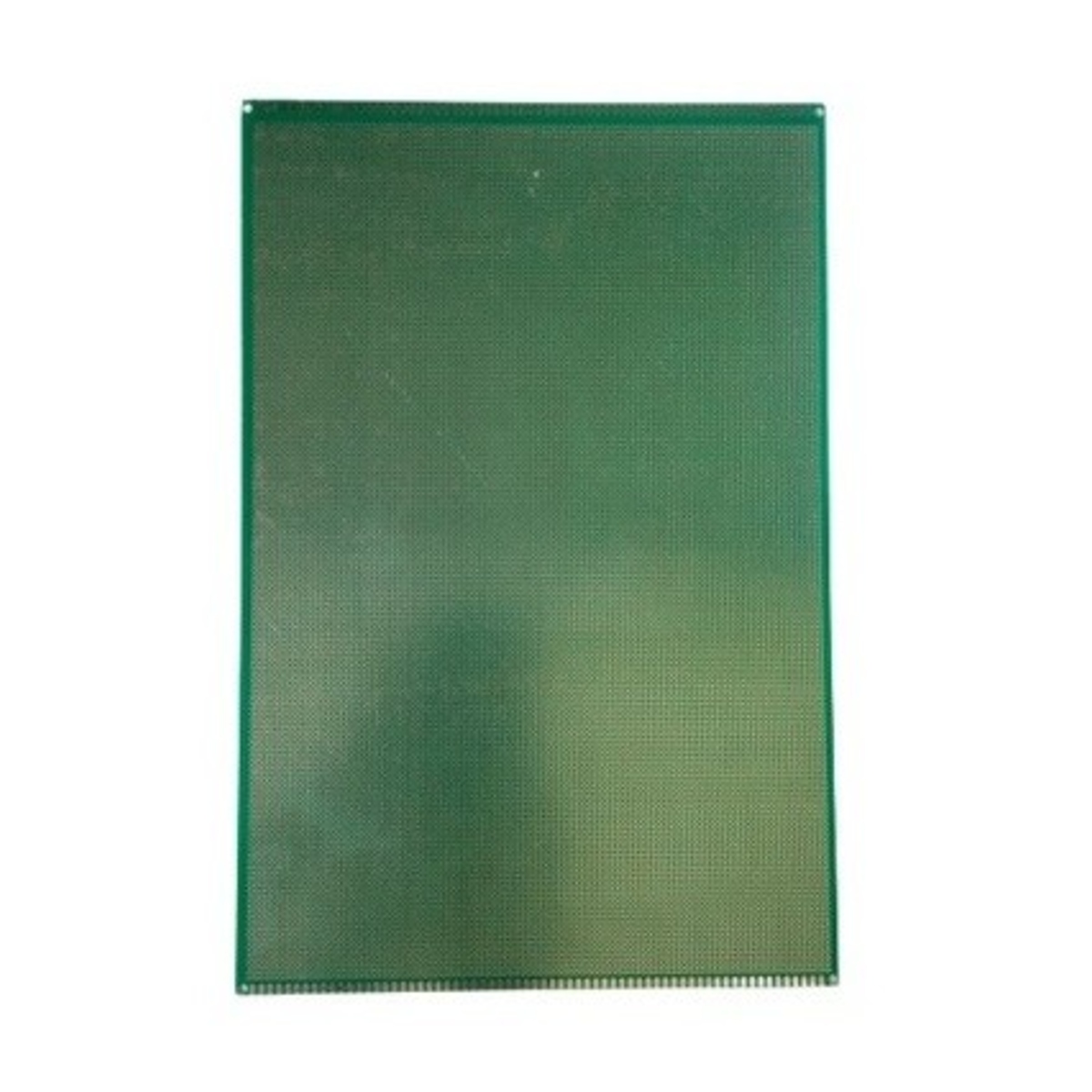

200 x 300mm Single-Sided 2mm Pitch General Purpose Dotted PCB (Prototype Perf Board)

The 200 x 300mm Single-Sided General Purpose Dotted PCB is a large-format prototype perf board designed for building, testing, and developing custom electronic circuits using through-hole components. Featuring a 2mm hole pitch, it is suitable for compact circuit layouts and specialized electronic applications where closer component spacing is required. The dotted copper pad design offers maximum flexibility for creating custom connections, making it ideal for prototyping, educational projects, industrial control circuits, and DIY electronics.

Manufactured from premium FR4 glass epoxy, this PCB provides excellent mechanical strength, electrical insulation, and durability for reliable long-term performance.

Key Features -

• Large 200 x 300mm prototype PCB for complex circuit designs

• Single-sided copper construction

• Standard 2mm hole pitch for compact component placement

• Dotted copper pad layout for flexible circuit design

• High-quality FR4 glass epoxy construction

• Easy to solder, modify, and repair

• Suitable for prototyping, testing, and educational applications

Specifications -

• Product Type: General Purpose Dotted PCB

• PCB Size: 200 x 300mm

• PCB Type: Single-Sided

• Hole Pitch: 2mm

• Pad Style: Dotted Copper Pads

• Mounting Type: Through-Hole Components

• PCB Material: FR4 Glass Epoxy

• Board Thickness: 1.6mm (Typical)

• Surface Finish: HASL (Typical)

• Application: Electronic Circuit Prototyping

Applications -

• Large electronic circuit prototyping

• Industrial control circuit development

• Educational and laboratory projects

• Embedded system prototyping

• Instrumentation circuits

• Electronic repair and modification

• DIY electronics projects

• Research and development applications
