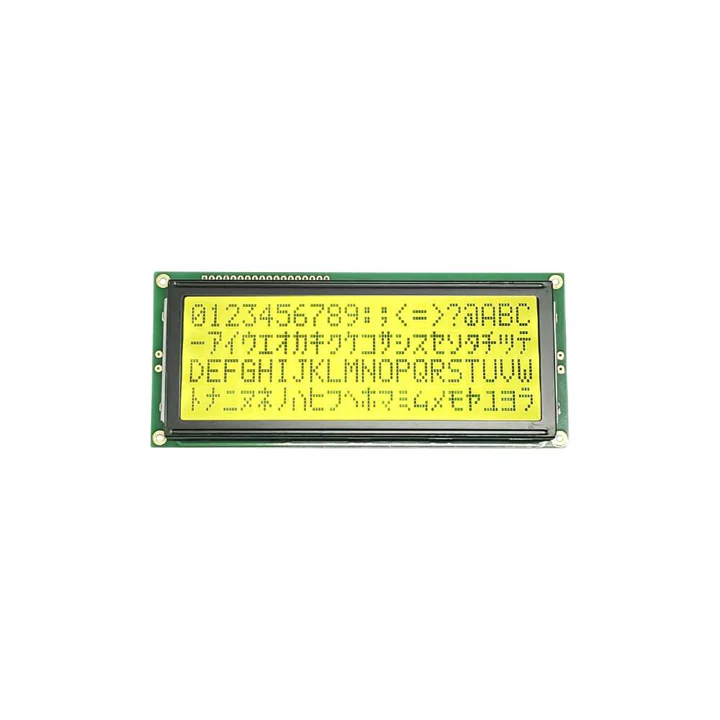

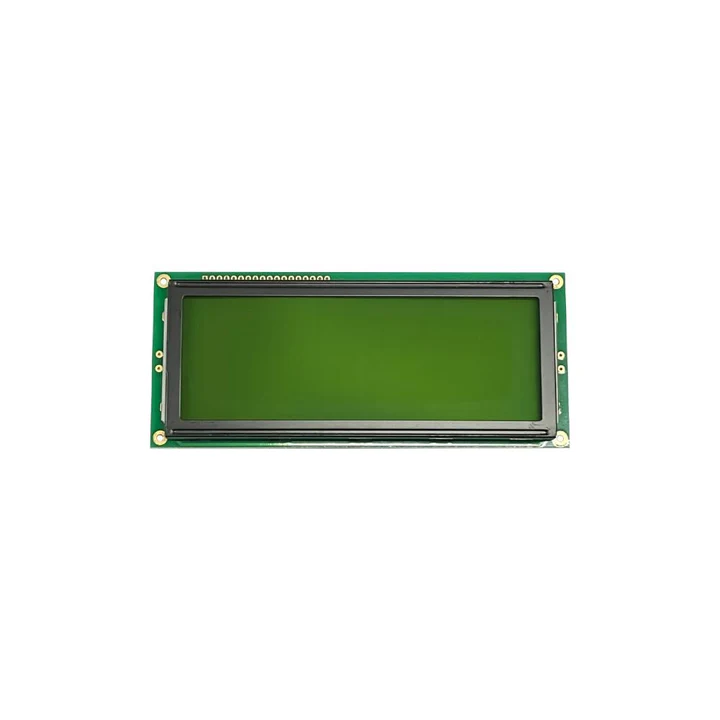

20x4 Green Big Font Character LCD Display Module JHD762 (5V, SPLC780D Controller)

The JHD762 20x4 Big Font Green LCD Display Module is an alphanumeric display designed for embedded systems, industrial electronics, and microcontroller based projects requiring easily readable text. It displays 20 characters per line across four lines, providing a total capacity of 80 characters. Its larger character size makes it suitable for applications where improved text visibility is important.

The module features a green LED backlight and uses the SPLC780D controller for character display management. It supports 4 bit and 8 bit parallel communication modes, allowing integration with compatible microcontrollers such as Arduino, STM32, PIC, and AVR platforms.

Key Features -

• 20 character by 4 line big font LCD display

• Total display capacity of 80 characters

• Larger characters for improved readability

• Green LED backlight

• SPLC780D display controller

• Supports 4 bit and 8 bit parallel communication

• Suitable for compatible Arduino, STM32, PIC, and AVR platforms

• Designed for embedded systems and industrial instruments

• Suitable for applications requiring clear text output

Specifications -

• Product Type: Big Font Character LCD Display Module

• Model: JHD762

• Display Format: 20x4 Characters

• Total Character Capacity: 80 Characters

• Backlight Colour: Green

• Character Size: 4.48 x 9.75 mm

• Controller: SPLC780D

• Input Voltage: 5V DC

• Interface Type: Parallel

• Communication Modes: 4 Bit and 8 Bit

• Module Dimensions: 146 x 55 x 13.5 mm

Applications -

• Industrial control panels

• Embedded system interfaces

• Arduino and microcontroller projects

• Measurement and monitoring equipment

• Sensor data display systems

• Automation and process monitoring

• Instrumentation and testing equipment

• Electronic equipment status displays
