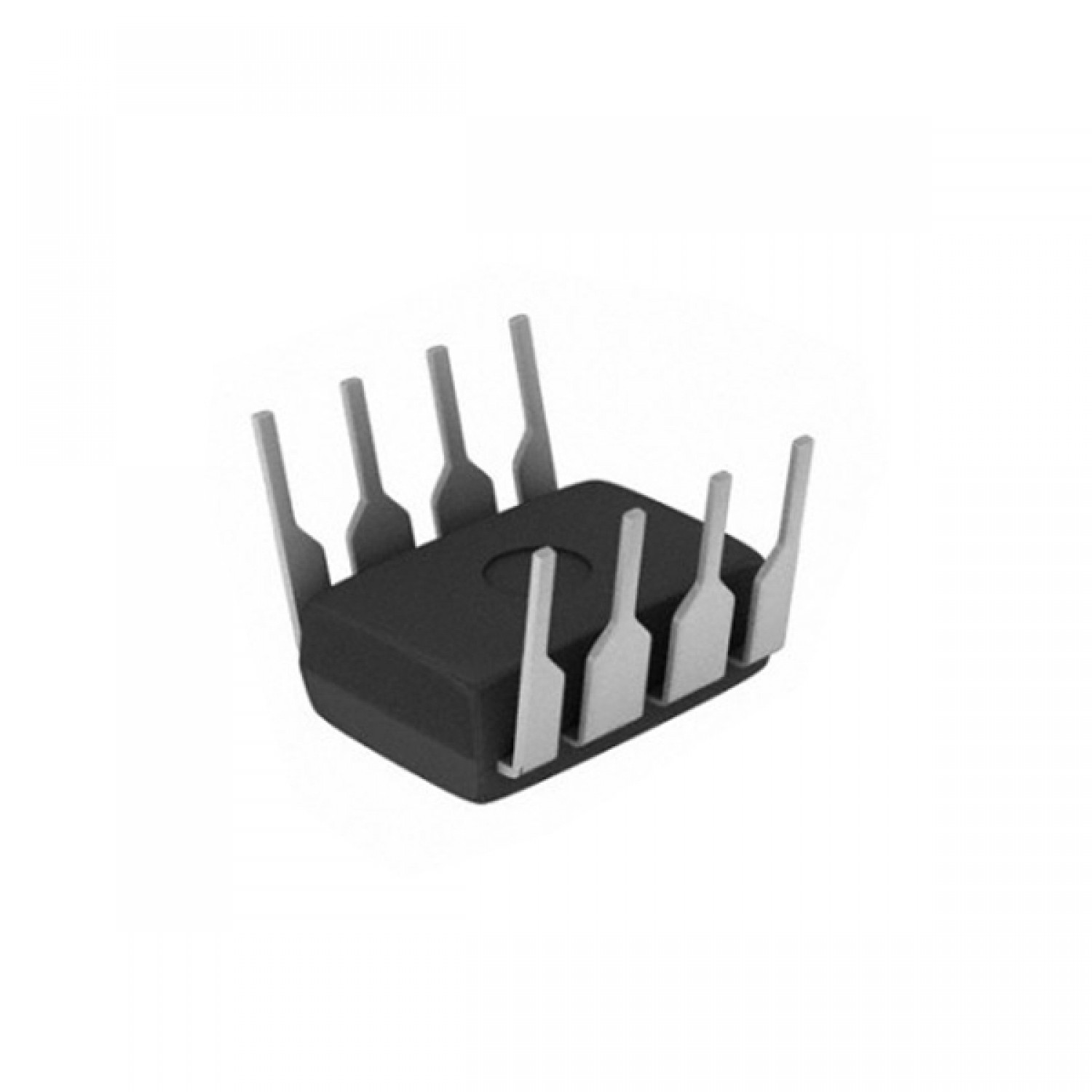

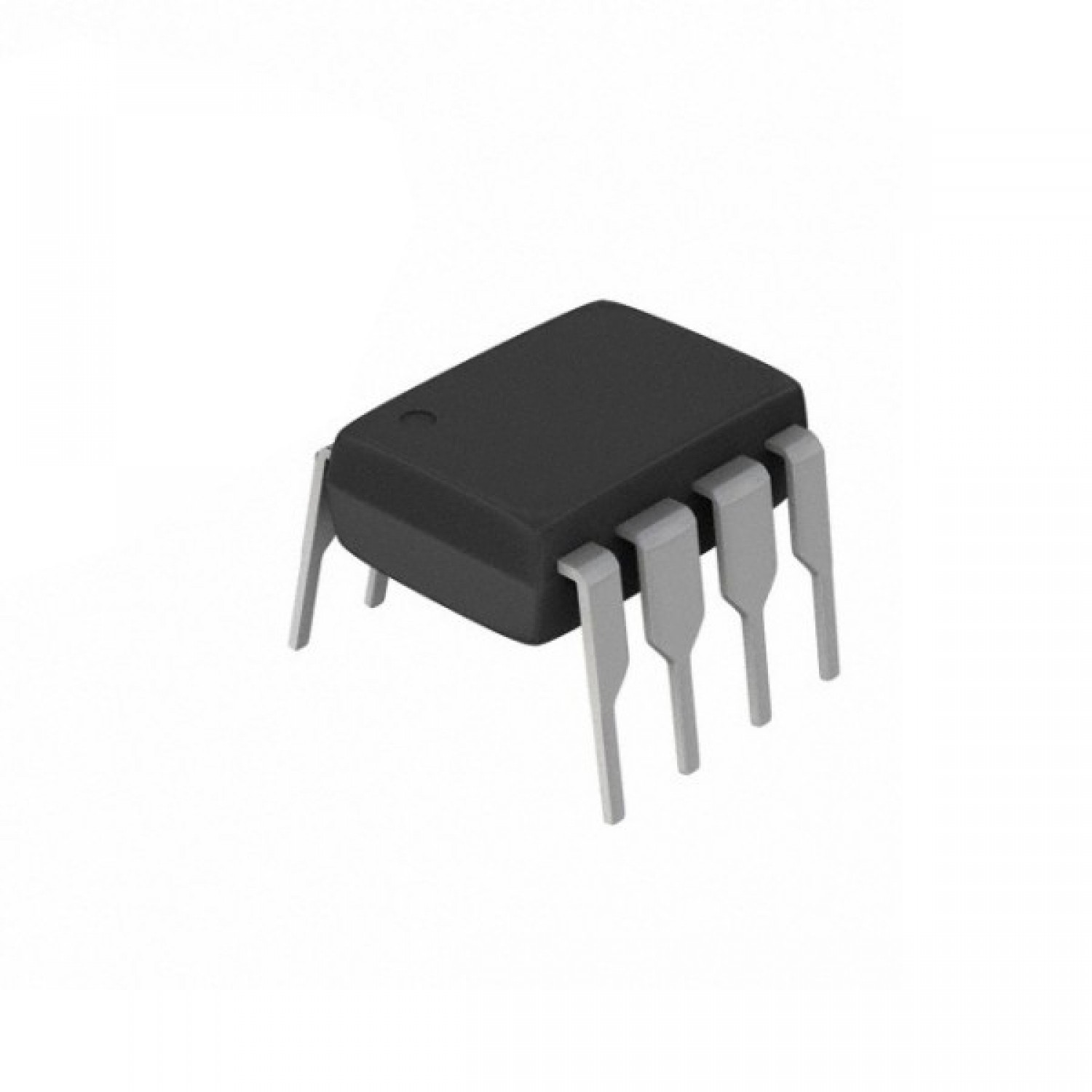

24C256 OG Serial EEPROM Memory IC Original OG (24C256 DIP IC)
The 24C256 OG Serial EEPROM Memory IC Original OG is a non-volatile memory chip designed for reliable data storage using the I2C serial communication interface. It provides 256K bit memory capacity and ensures stable data retention, making it ideal for storing configuration data, calibration values, and system parameters. This original OG quality IC offers dependable performance and long-term reliability in electronic applications. The DIP package allows easy through-hole mounting and convenient integration into circuits.
The 24C256 OG IC is widely used in India for microcontroller systems, consumer electronics, industrial devices, and automation circuits. It is valued for its low power consumption, high reliability, and simple interfacing with digital systems.
Key Features
- 256K Bit EEPROM Memory: Provides non-volatile data storage.
- I2C Serial Interface: Supports two-wire communication protocol.
- Original OG Quality: Ensures reliable and long-lasting performance.
- Low Power Consumption: Suitable for battery-powered devices.
- High Data Retention: Ensures secure long-term data storage.
- Multiple Device Addressing: Allows multiple ICs on same bus.
- DIP Package: Easy installation and servicing.
Specifications
- IC Type: Serial EEPROM Memory IC
- Memory Capacity: 256K Bit
- Interface: I2C Serial Interface
- Operating Voltage Range: Suitable for standard logic levels
- Data Retention: Long-term non-volatile storage
- Package Type: DIP Through-Hole IC
- Mounting Type: Through-Hole Mounting
- Applications: Microcontroller systems data storage configuration memory calibration storage industrial electronics
Pinout Configuration (DIP IC Layout)
- SDA Serial Data Pin
- SCL Serial Clock Pin
- VCC Supply Voltage Pin
- GND Ground Pin
- Address Pins for device selection
- Write Protect Pin
- Refer to datasheet or circuit diagram for exact pin details
