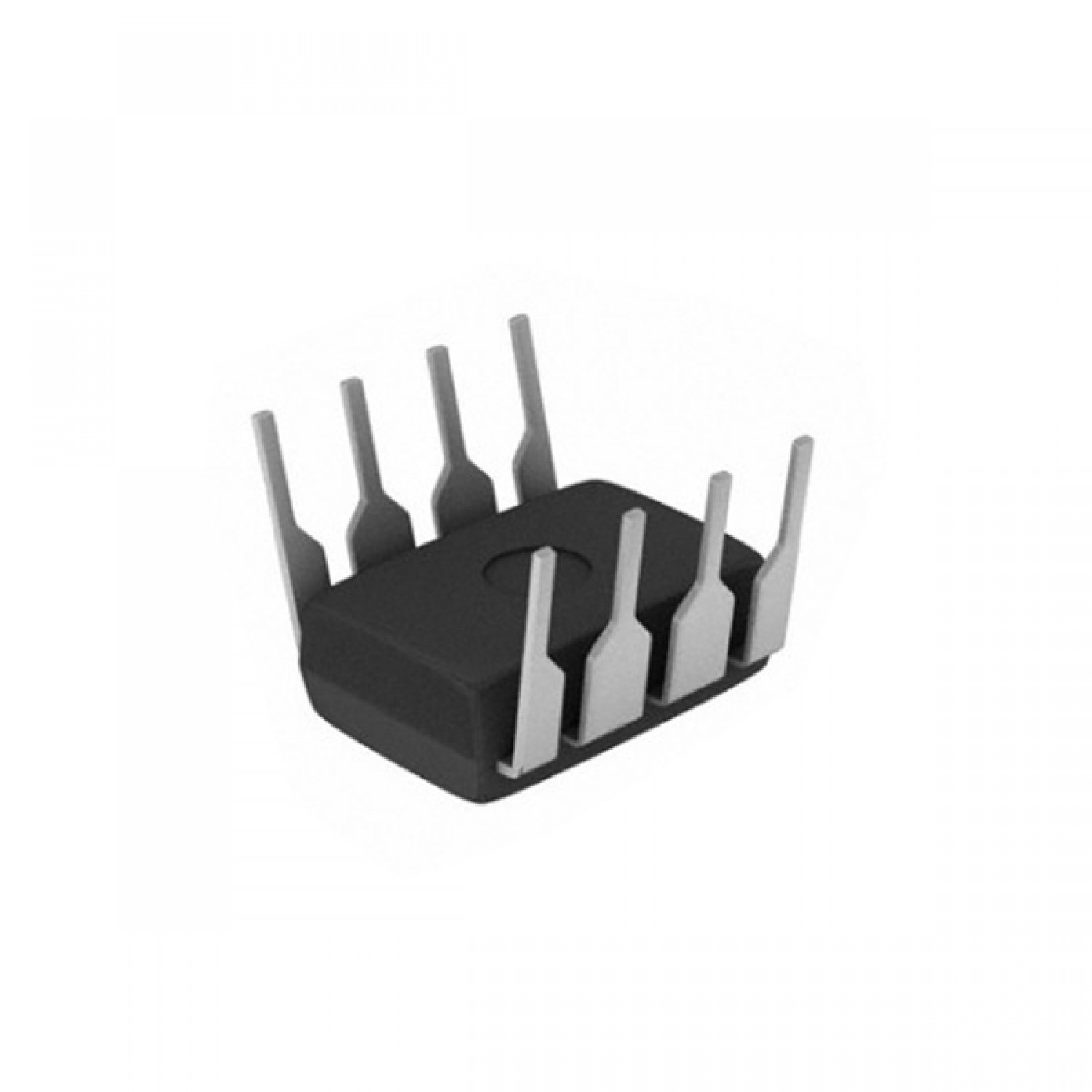

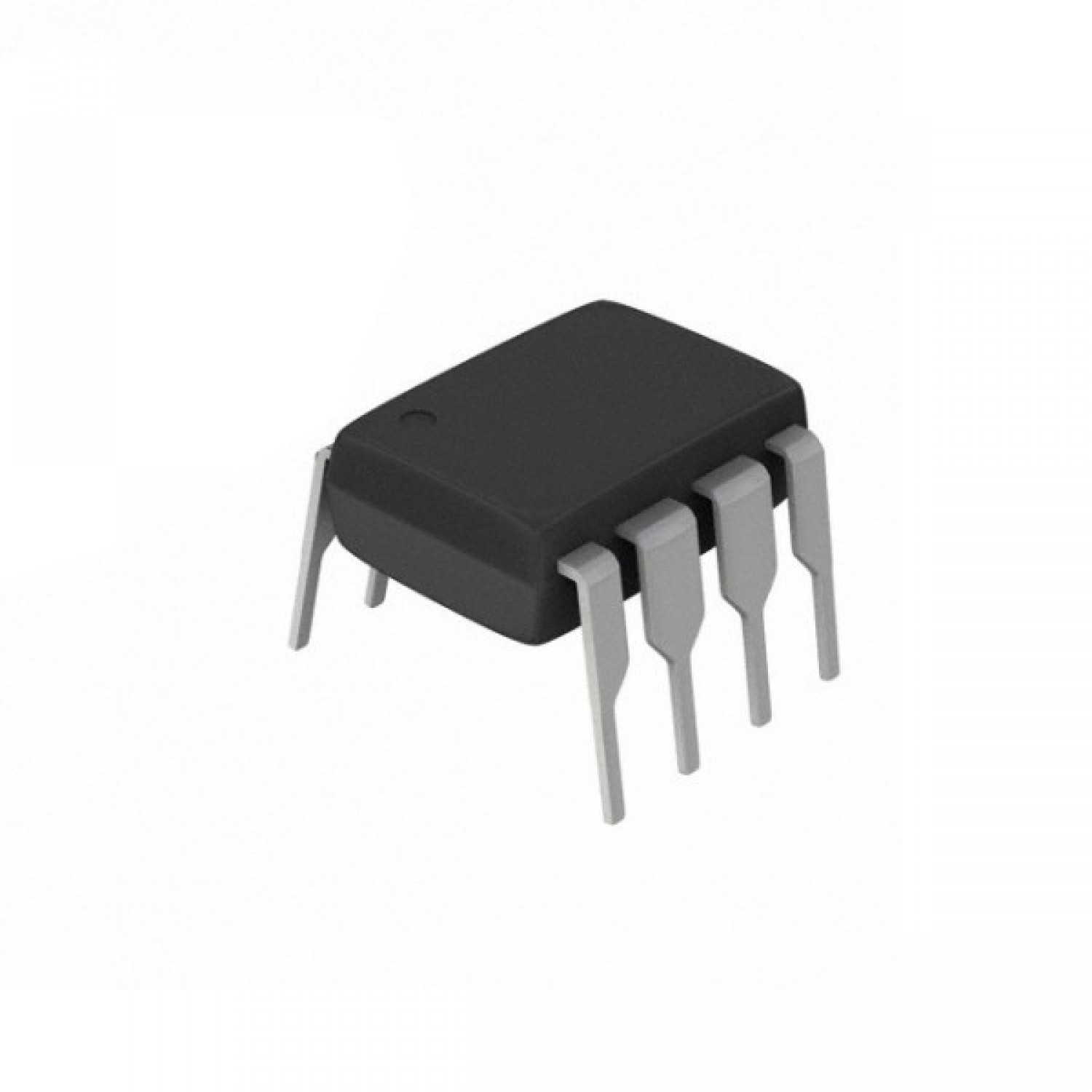

24C32CH Serial EEPROM Memory IC (24C32CH DIP IC)
The 24C32CH Serial EEPROM Memory IC is a non-volatile memory chip designed for reliable data storage using the I2C serial communication interface. It provides 32K bit memory capacity and is ideal for storing configuration data, calibration values, and system parameters in electronic circuits. The DIP package allows easy through-hole mounting and convenient integration into embedded systems.
The 24C32CH IC is widely used in India for microcontroller systems, consumer electronics, industrial devices, and automation applications. It is valued for its low power consumption, high data retention, and simple I2C interface compatibility.
Key Features
- 32K Bit EEPROM Memory: Provides non-volatile data storage.
- I2C Interface: Supports two-wire serial communication.
- Low Power Consumption: Suitable for battery-operated devices.
- High Data Retention: Ensures long-term data storage reliability.
- Multiple Device Addressing: Allows multiple ICs on the same bus.
- DIP Package: Easy installation and servicing.
Specifications
- IC Type: Serial EEPROM Memory IC
- Memory Capacity: 32K Bit
- Interface: I2C Serial Interface
- Operating Voltage Range: Suitable for standard logic levels
- Data Retention: Long-term non-volatile storage
- Package Type: DIP Through-Hole IC
- Mounting Type: Through-Hole Mounting
- Applications: Microcontroller systems data storage configuration memory calibration storage industrial electronics
Pinout Configuration (DIP IC Layout)
- SDA Serial Data Pin
- SCL Serial Clock Pin
- VCC Supply Voltage Pin
- GND Ground Pin
- Address Pins for device selection
- Write Protect Pin
- Refer to datasheet or circuit diagram for exact pin details
