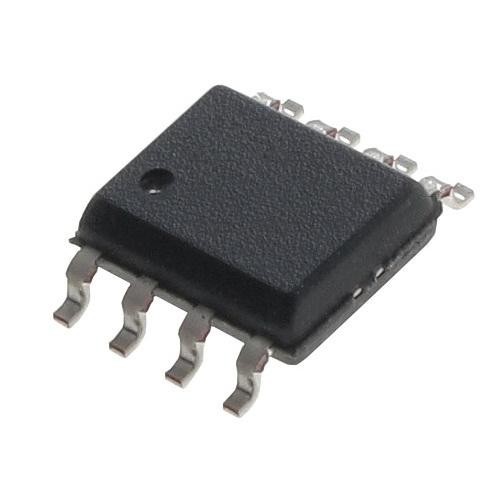

24LC512 SOIC-8 Serial EEPROM Memory IC (24LC512)
The 24LC512 is a non-volatile serial EEPROM memory IC designed for reliable data storage, configuration retention, and embedded system applications. It features an I2C compatible serial communication interface and provides electrically erasable programmable memory in a compact SOIC-8 package.
Key Features -
- 512Kbit serial EEPROM memory
- I2C compatible communication interface
- Non-volatile data retention
- SOIC-8 surface mount package
- Low power memory operation
Specifications -
- IC type / Product type - Serial EEPROM Memory IC
- Logic family / Component type - Non-Volatile Memory IC
- Package type - SOIC-8 SMD IC
- Supply voltage - Approx 2.5V to 5.5V DC
- Input voltage - CMOS compatible digital input levels
- Output voltage - Digital serial data output
- Current rating - Low power EEPROM operation
- Frequency / propagation delay - High speed I2C serial communication support
- Operating temperature - Approx -40 to +85 degree C
- Additional important specifications - 512Kbit memory capacity, byte and page write capability, non-volatile data storage, write protection support, low standby current consumption, I2C interface support
Applications -
- Embedded control systems
- Microcontroller data storage
- Configuration memory applications
- Consumer electronic devices
- Industrial automation equipment
Pinout Configuration -
- Pin 1 - Address select pin
- Pin 2 - Address select pin
- Pin 3 - Address select pin
- Additional pins - Serial data pin, serial clock pin, write protect pin, power supply pin, ground connection
