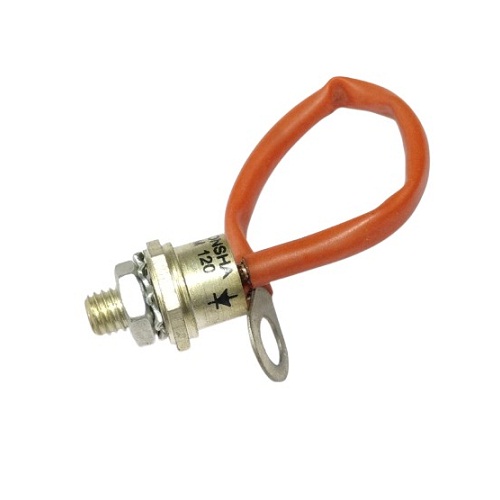

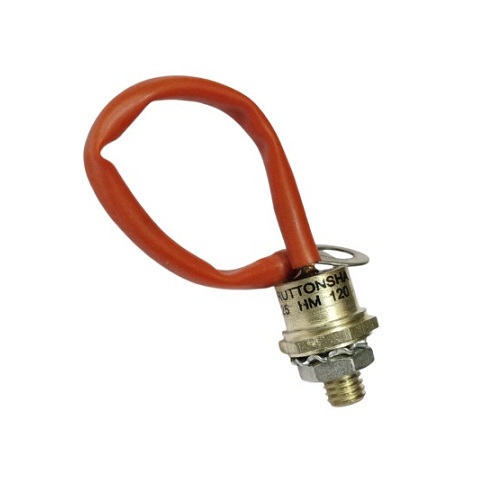

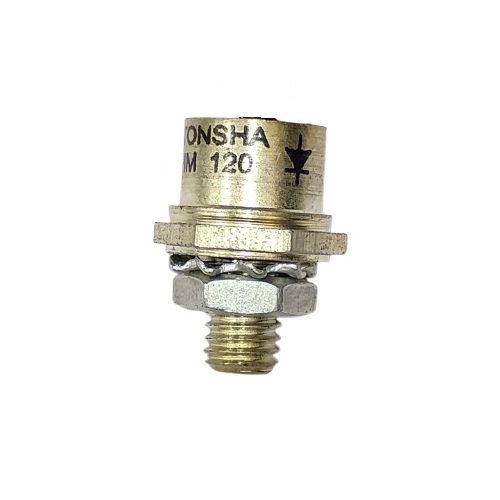

25HM120 Metal Power Diode – 1200V, 25A, M16 Stud Mount (Stud Cathode)

The 25HM120 is a high-voltage stud-mounted standard rectifier diode designed for reliable power rectification in industrial and commercial applications. Rated for 1200V reverse voltage and 25A forward current, it is suitable for use in rectifier circuits, battery chargers, DC power supplies, welding equipment, motor drives, and industrial control systems. Its M16 stud-mount package with Stud Cathode polarity provides secure mechanical installation and efficient heat transfer to a heatsink for dependable operation under continuous load.

Key Features -

• High-voltage standard rectifier diode

• 1200V peak reverse voltage rating

• 25A average forward current capability

• M16 stud-mount package for secure installation

• Stud Cathode polarity configuration

• Metal body for efficient heat dissipation

• Rugged construction for industrial applications

• Reliable performance in high-power rectification circuits

Specifications -

• Product Type - Power Rectifier Diode

• Part Number - 25HM120

• Diode Type - Standard Rectifier

• Reverse Voltage (VRRM) - 1200V

• Forward Current (IF) - 25A

• Polarity - Stud Cathode

• Mounting Type - Stud Mount

• Stud Size - M16

• Package Style - Metal Stud Package

• Body Material - Metal

Applications -

• Industrial rectifier units

• DC power supplies

• Battery charging systems

• Welding equipment

• Motor drives and controllers

• UPS and inverter systems

• Renewable energy power conversion

• Industrial automation equipment

• General high-current rectification applications
