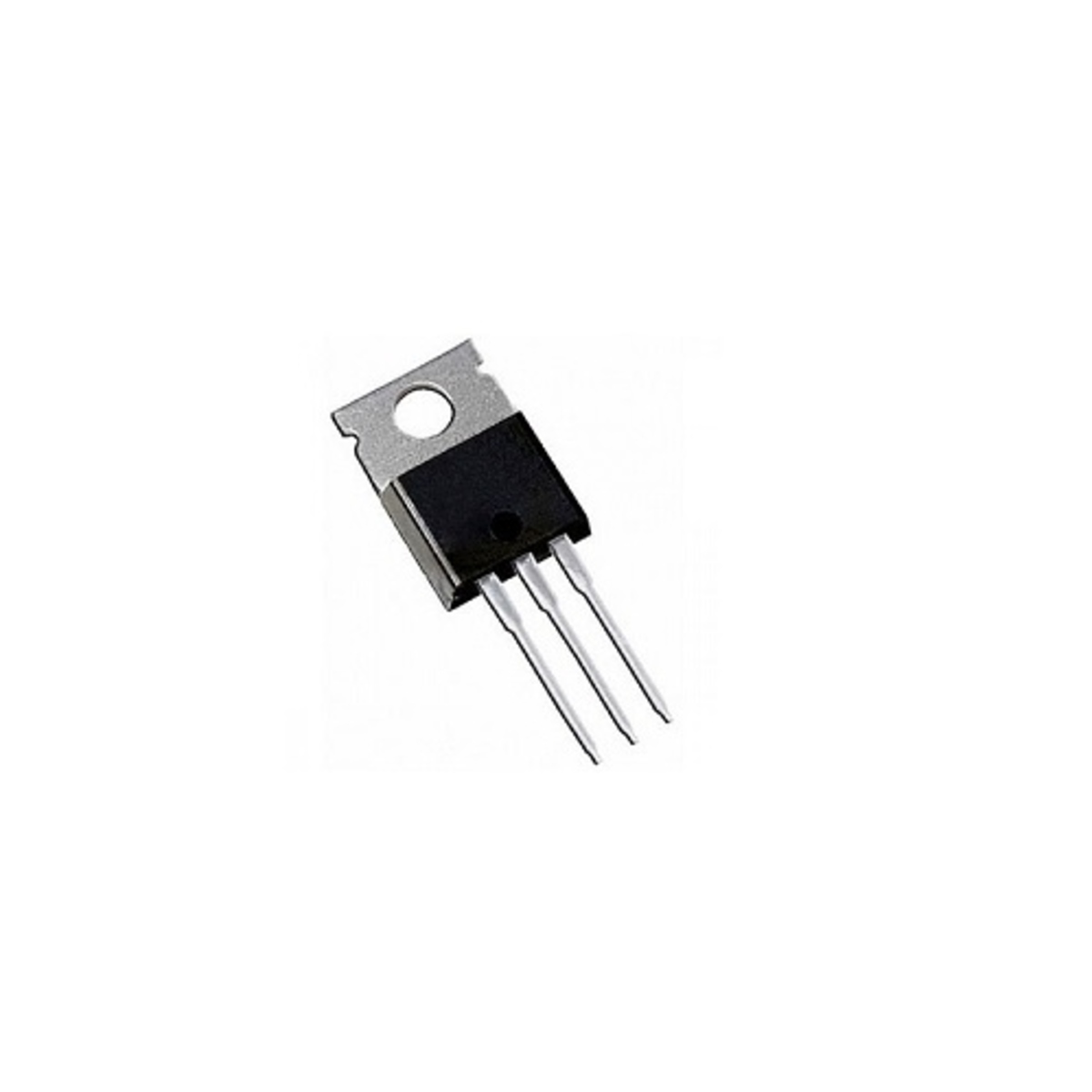

25TTS12 SCR Thyristor 1200V 25A TO-220 Power Control Device (25TTS12 SCR)

The 25TTS12 is a high-voltage Silicon Controlled Rectifier (SCR) designed for power switching, controlled rectification, motor control, and industrial power management applications. With a peak off-state voltage of 1200V and high surge current capability, it provides reliable performance in demanding power control circuits.

Key Features -

• Silicon Controlled Rectifier (SCR)

• 1200V peak off-state voltage

• 25A RMS on-state current

• 16A average on-state current

• Low gate trigger current

• High surge current capability

• Low on-state voltage drop

• TO-220 through hole package

Specifications -

• Product type - SCR Thyristor

• Model - 25TTS12

• Device type - Silicon Controlled Rectifier

• Package type - TO-220

• Mounting type - Through Hole

• Peak off-state voltage (Vdrm) - 1200V

• Maximum RMS on-state current - 25A

• Maximum average on-state current - 16A

• Gate trigger current (Igt) - 25mA

• Maximum on-state voltage drop - 1.25V

• Maximum junction temperature - 125C

• Maximum rate of rise of off-state voltage (dV/dT) - 500 V/us

• Maximum surge current (10ms sine pulse) - 300A

Applications -

• AC power control circuits

• Motor speed controllers

• Industrial automation equipment

• Battery charging systems

• Controlled rectifiers

• Heating control systems

• Power supply circuits

• High-power switching applications
