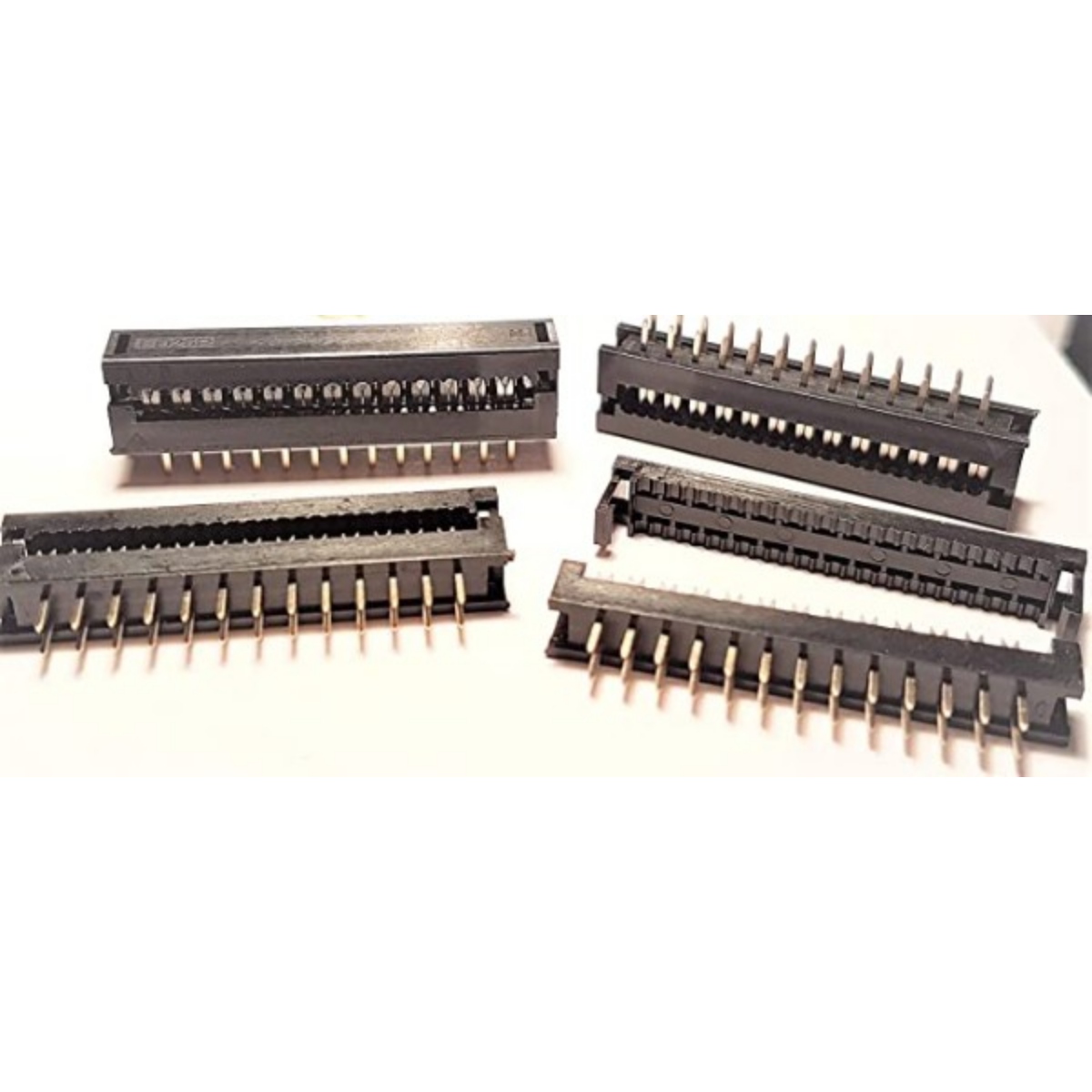

26 Pin FRC IDC Box Header Straight Male Connector 13x2 2.54mm (Ribbon Cable IDC Connector)

The 26 Pin FRC IDC Box Header Straight Male Connector is designed for reliable ribbon cable to PCB connections in embedded systems, development boards, computer interfaces, and industrial electronics. It features a 13x2 dual-row configuration, standard 2.54mm pitch, and a shrouded box design for secure and correctly aligned IDC ribbon cable connections.

Key Features -

• 26 pin 13x2 dual-row configuration

• Standard 2.54mm pitch

• Straight male box header design

• Compatible with FRC and IDC ribbon cables

• Shrouded housing for connector alignment

• Secure and reliable PCB connection

• Through-hole PCB mounting

• Durable insulated housing construction

Specifications -

• Product Type: FRC IDC Box Header Connector

• Number of Pins: 26 Pins

• Pin Configuration: 13x2 Dual Row

• Pitch: 2.54mm

• Mounting Type: Straight PCB Through Hole Mount

• Connector Type: Male Box Header

• Cable Compatibility: FRC and IDC Ribbon Cable

• Contact Material: Metal Alloy

• Housing Material: Insulated Plastic

• Termination Type: Through Hole

• Additional Features: Shrouded construction, reliable signal transmission, secure ribbon cable interface, accurate connector alignment

Applications -

• Ribbon cable interconnections

• Embedded system interfaces

• Microcontroller development boards

• Computer peripheral connections

• Industrial electronic control systems

• PCB communication interfaces

• Programmable controller interfaces

• DIY electronic projects
