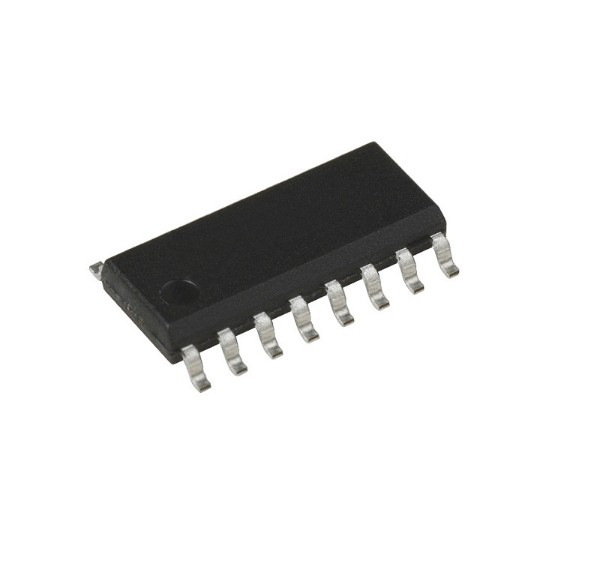

26LS31 SOIC-16 Quad Differential Line Driver IC (26LS31)
The 26LS31 is a quad differential line driver IC designed for high speed data transmission, balanced signal communication, and RS-422 compatible interface applications. It provides four independent differential drivers in a compact SOIC-16 package, making it suitable for industrial communication systems, data transmission networks, and embedded interface circuits.
Key Features -
- Quad differential line driver IC
- RS-422 compatible communication support
- High speed balanced signal transmission
- SOIC-16 surface mount package
- Low power operation
Specifications -
- IC type / Product type - Differential Line Driver IC
- Logic family / Component type - Communication Interface IC
- Package type - SOIC-16 SMD IC
- Supply voltage - Approx 4.75V to 5.25V DC
- Input voltage - TTL compatible digital input levels
- Output voltage - Differential line driver output signals
- Current rating - Suitable for communication line driving applications
- Frequency / propagation delay - High speed data transmission capability
- Operating temperature - Approx -40 to +85 degree C
- Additional important specifications - Four independent differential drivers, RS-422 compatibility, high noise immunity, balanced signal output, short circuit protection support
Applications -
- RS-422 communication systems
- Industrial automation networks
- Data transmission interfaces
- Embedded communication systems
- Long distance digital signal transmission
Pinout Configuration -
- Pin 1 - Driver input pin
- Pin 2 - Differential output pin
- Pin 3 - Differential output complement pin
- Additional pins - Additional driver inputs and outputs, enable control pins, power supply pin, ground connection
