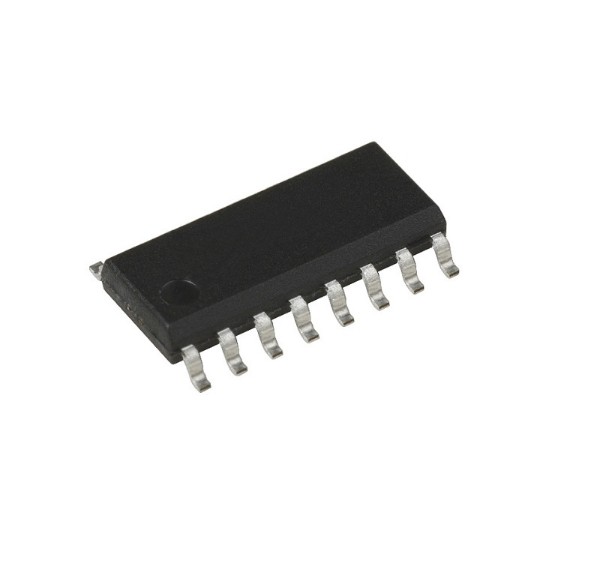

26LS32 SOIC-16 Quad Differential Line Receiver IC (26LS32)
The 26LS32 is a quad differential line receiver IC designed for high speed data reception, balanced signal communication, and RS-422 compatible interface applications. It provides four independent differential receivers in a compact SOIC-16 package, making it suitable for industrial communication systems, data transmission networks, and embedded interface circuits.
Key Features -
- Quad differential line receiver IC
- RS-422 compatible communication support
- High noise immunity differential input
- SOIC-16 surface mount package
- High speed data reception capability
Specifications -
- IC type / Product type - Differential Line Receiver IC
- Logic family / Component type - Communication Interface IC
- Package type - SOIC-16 SMD IC
- Supply voltage - Approx 4.75V to 5.25V DC
- Input voltage - Differential line input signals
- Output voltage - TTL compatible digital output levels
- Current rating - Low power communication operation
- Frequency / propagation delay - High speed data reception capability
- Operating temperature - Approx -40 to +85 degree C
- Additional important specifications - Four independent differential receivers, RS-422 compatibility, high noise immunity, balanced signal reception, fail safe input operation support
Applications -
- RS-422 communication systems
- Industrial automation networks
- Data transmission interfaces
- Embedded communication systems
- Long distance digital signal reception
Pinout Configuration -
- Pin 1 - Differential input pin
- Pin 2 - Differential complement input pin
- Pin 3 - Receiver output pin
- Additional pins - Additional receiver inputs and outputs, enable control pins, power supply pin, ground connection
