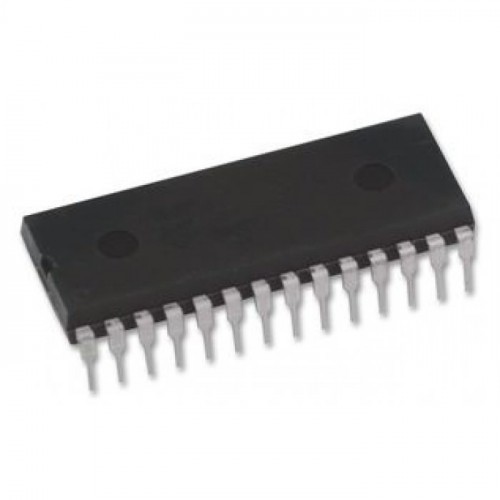

27C512 Semi Eprom Memory IC (27C512 DIP IC)
The 27C512 SEMI EPROM Memory IC is a non-volatile programmable memory device designed for storing firmware, program code, and fixed data in digital systems. It offers 512K bit memory capacity and uses ultraviolet light for erasing stored data, making it suitable for development, servicing, and legacy electronic applications. This SEMI quality IC ensures reliable performance and consistent operation in embedded and industrial circuits. The DIP package allows easy through-hole mounting and convenient replacement.
The 27C512 SEMI IC is widely used in India for embedded systems, industrial equipment, arcade boards, and legacy devices. It is valued for its stable performance, reprogrammable capability, and dependable data retention in firmware storage applications.
Key Features
- 512K Bit EPROM Memory: Provides non-volatile data storage.
- UV Erasable: Supports multiple erase and reprogram cycles using ultraviolet light.
- Parallel Interface: Enables fast data access and programming.
- SEMI Quality: Ensures reliable and consistent performance.
- High Data Retention: Maintains stored data for extended periods.
- DIP Package: Easy installation and servicing.
Specifications
- IC Type: EPROM Memory IC
- Memory Capacity: 512K Bit
- Interface: Parallel Interface
- Erase Method: Ultraviolet light erasable
- Access Time: Fast read access
- Package Type: DIP Through-Hole IC
- Mounting Type: Through-Hole Mounting
- Applications: Firmware storage embedded systems industrial electronics arcade boards legacy devices
Pinout Configuration (DIP IC Layout)
- Address input pins
- Data input output pins
- Chip enable and output enable pins
- Programming control pins
- Supply voltage and ground pins
- Refer to datasheet or circuit diagram for exact pin details
