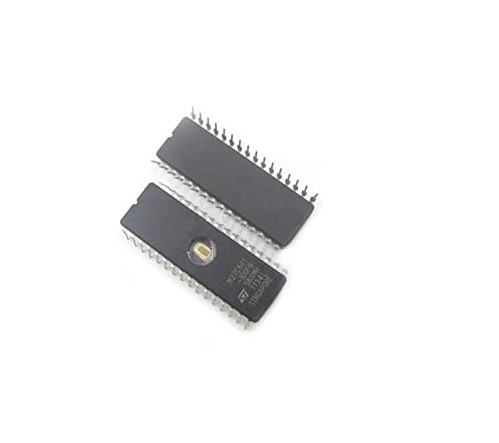

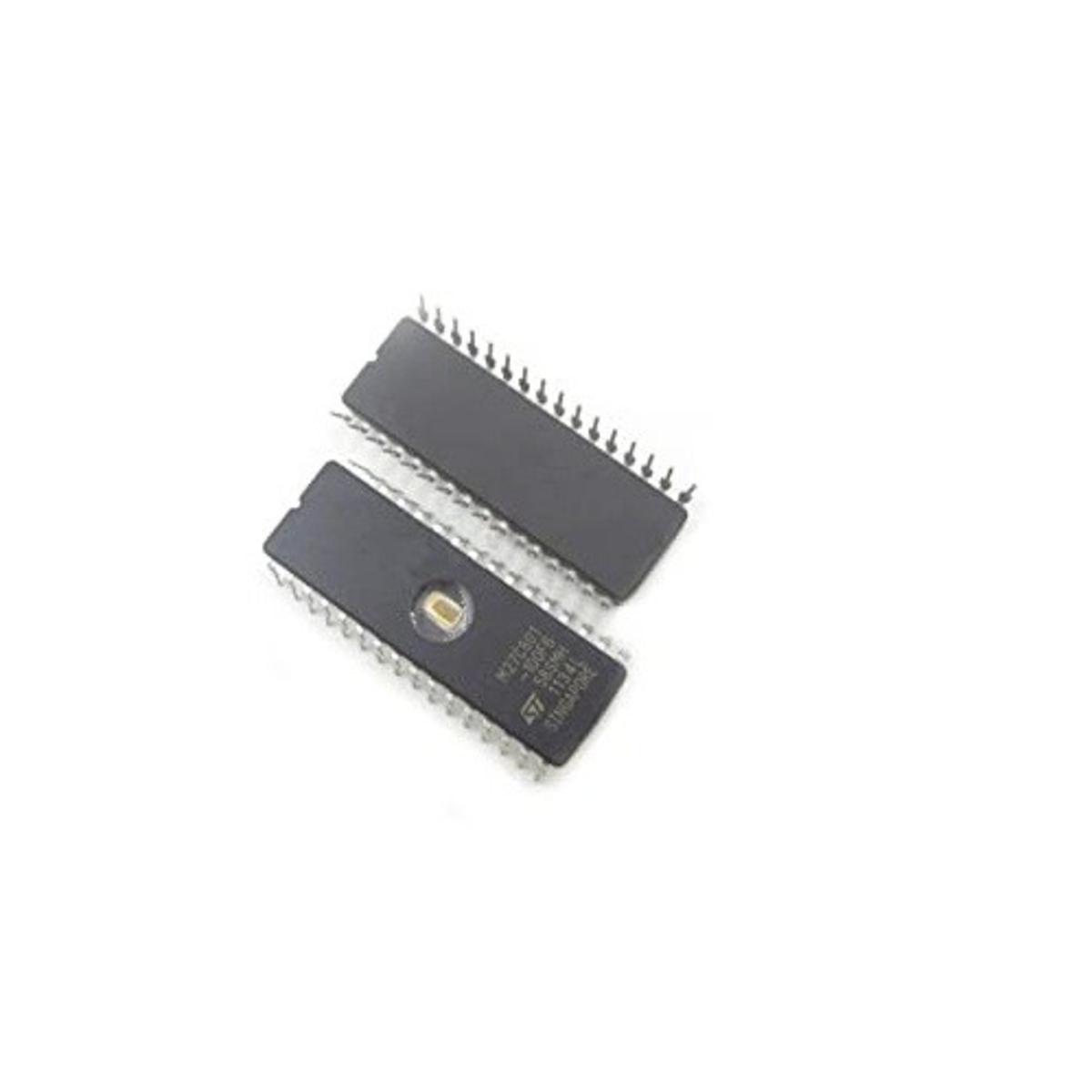

27C801 OG EPROM Memory IC Original OG (27C801 DIP IC)
The 27C801 OG EPROM Memory IC Original OG is a non-volatile programmable memory device designed for storing firmware, program code, and fixed data in digital systems. It offers 8M bit memory capacity and uses ultraviolet light for erasing stored data, making it suitable for development, servicing, and legacy electronic applications. This original OG quality IC ensures reliable performance, long data retention, and consistent operation in demanding environments. The DIP package allows easy through-hole mounting and convenient replacement in circuit boards.
The 27C801 OG IC is widely used in India for embedded systems, industrial equipment, arcade boards, and legacy devices. It is valued for its high memory capacity, reprogrammable capability, and dependable performance in firmware storage applications.
Key Features
- 8M Bit EPROM Memory: Provides high-capacity non-volatile data storage.
- UV Erasable: Supports multiple erase and reprogram cycles using ultraviolet light.
- Parallel Interface: Enables fast data access and programming.
- Original OG Quality: Ensures reliable and long-lasting performance.
- High Data Retention: Maintains stored data for extended periods.
- DIP Package: Easy installation and servicing.
Specifications
- IC Type: EPROM Memory IC
- Memory Capacity: 8M Bit
- Interface: Parallel Interface
- Erase Method: Ultraviolet light erasable
- Access Time: Fast read access
- Package Type: DIP Through-Hole IC
- Mounting Type: Through-Hole Mounting
- Applications: Firmware storage embedded systems industrial electronics arcade boards legacy devices
Pinout Configuration (DIP IC Layout)
- Address input pins
- Data input output pins
- Chip enable and output enable pins
- Programming control pins
- Supply voltage and ground pins
- Refer to datasheet or circuit diagram for exact pin details
