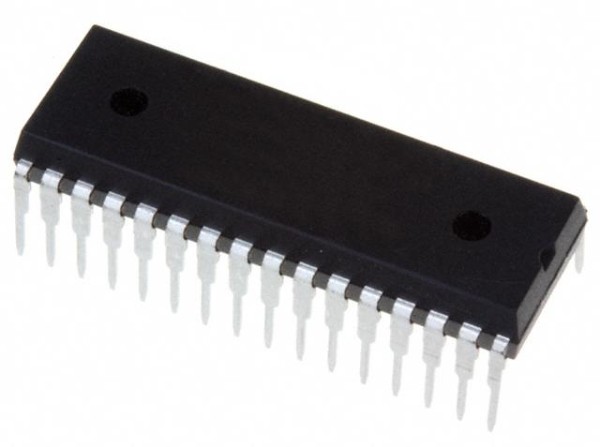

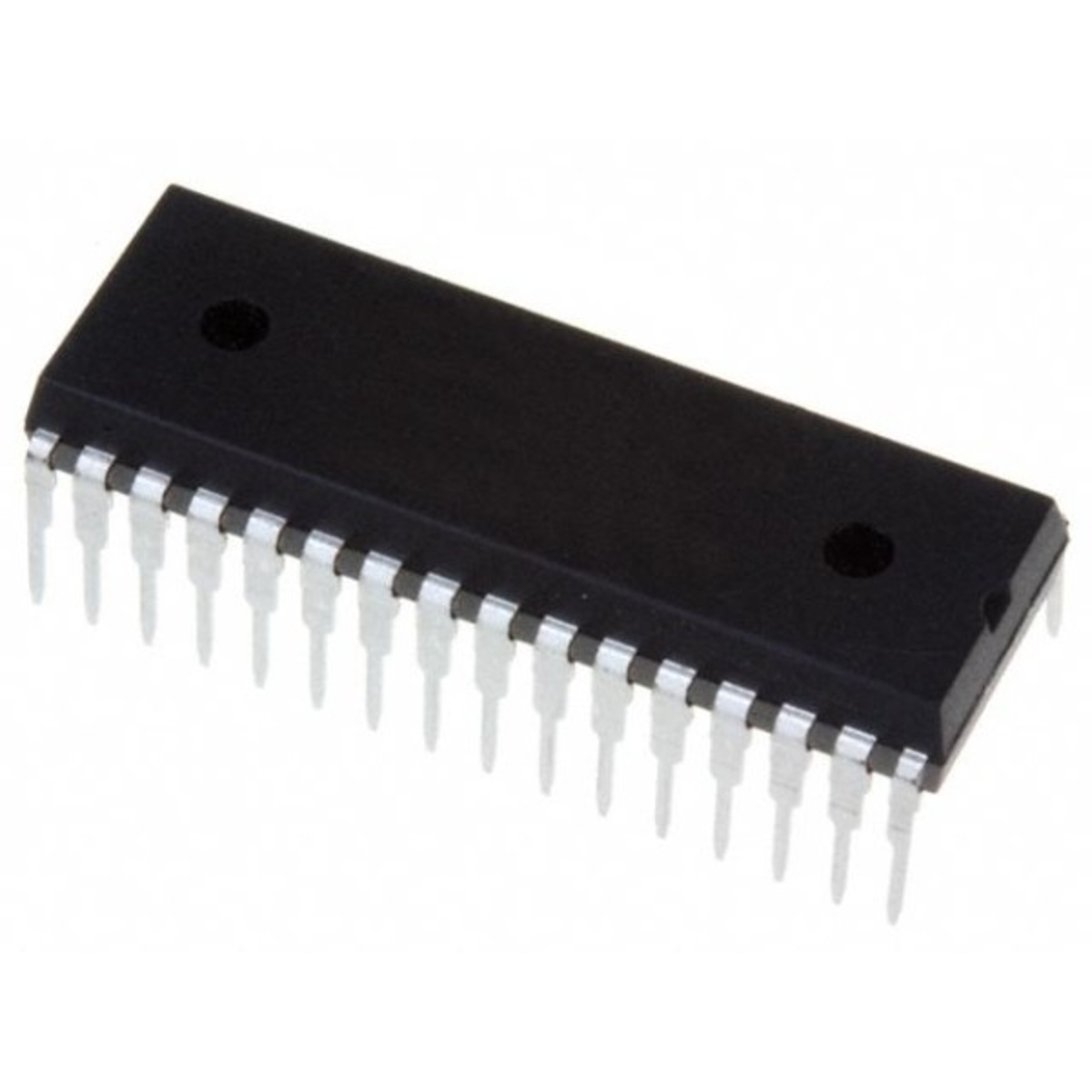

27SF010 Flash Memory IC (27SF010 DIP IC)
The 27SF010 Flash Memory IC is a non-volatile memory device designed for reliable data storage and fast read operations in digital systems. It offers 1M bit memory capacity and supports parallel data access, making it suitable for firmware storage, program memory, and embedded system applications. The DIP package allows easy through-hole mounting and convenient replacement in legacy and industrial circuits.
The 27SF010 IC is widely used in India for embedded systems, industrial control boards, arcade machines, and programmable devices. It is valued for its fast access speed, reliable data retention, and ease of programming and reprogramming.
Key Features
- 1M Bit Flash Memory: Provides non-volatile data storage.
- Fast Access Time: Enables quick data read operations.
- Electrically Erasable: Supports multiple erase and write cycles.
- Parallel Interface: Allows high-speed data transfer.
- High Data Retention: Ensures long-term storage reliability.
- DIP Package: Easy installation and servicing.
Specifications
- IC Type: Flash Memory IC
- Memory Capacity: 1M Bit
- Interface: Parallel Interface
- Access Time: Fast read access
- Erase Type: Electrically erasable programmable memory
- Package Type: DIP Through-Hole IC
- Mounting Type: Through-Hole Mounting
- Applications: Firmware storage embedded systems industrial electronics programmable devices
Pinout Configuration (DIP IC Layout)
- Address input pins
- Data input output pins
- Chip enable and output enable pins
- Write enable control pin
- Supply voltage and ground pins
- Refer to datasheet or circuit diagram for exact pin details
