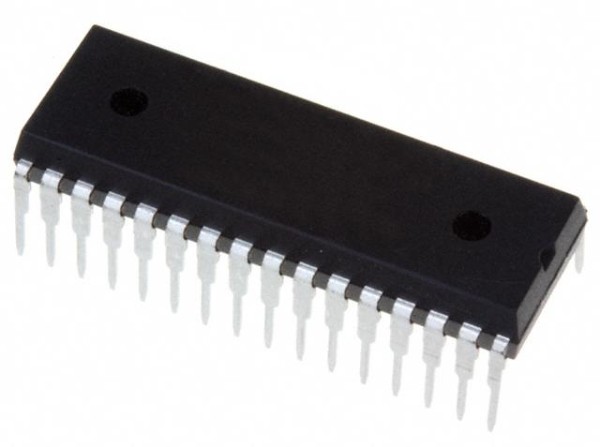

29C020 Flash EEPROM Memory IC (29C020 DIP IC)
The 29C020 Flash EEPROM Memory IC is a non-volatile memory device designed for reliable data storage and fast access in digital and embedded systems. It provides 2M bit memory capacity and supports electrical erase and program operations, eliminating the need for UV erasing. The DIP package allows easy through-hole mounting and convenient replacement in circuit boards.
The 29C020 IC is widely used in India for firmware storage, embedded systems, industrial electronics, and programmable devices. It is valued for its fast read access, high endurance, and reliable data retention in repeated programming applications.
Key Features
- 2M Bit Flash Memory: Provides non-volatile data storage.
- Electrically Erasable: No UV required for erase operations.
- Fast Access Time: Enables quick data read performance.
- High Endurance: Supports multiple program erase cycles.
- Reliable Data Retention: Ensures long-term storage stability.
- DIP Package: Easy installation and servicing.
Specifications
- IC Type: Flash EEPROM Memory IC
- Memory Capacity: 2M Bit
- Interface: Parallel Interface
- Erase Method: Electrical erase programmable
- Access Time: Fast read access
- Package Type: DIP Through-Hole IC
- Mounting Type: Through-Hole Mounting
- Applications: Firmware storage embedded systems industrial electronics programmable devices
Pinout Configuration (DIP IC Layout)
- Address input pins
- Data input output pins
- Chip enable output enable and write enable pins
- Supply voltage and ground pins
- Refer to datasheet or circuit diagram for exact pin details
