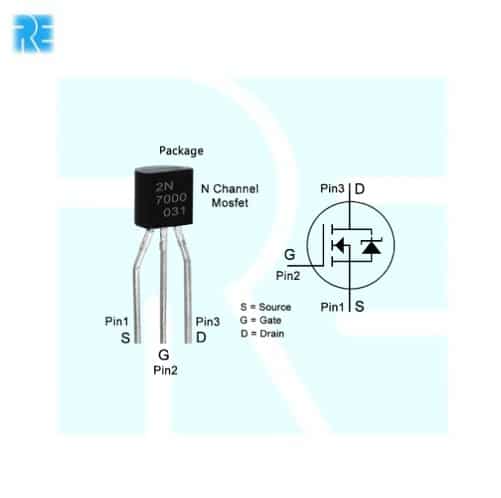

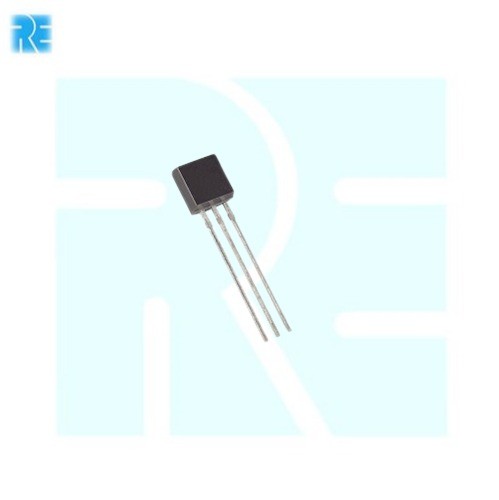

2N7000 N Channel MOSFET Transistor (60V, TO 92)

The 2N7000 is a small signal N Channel enhancement mode MOSFET designed for low power switching and control applications. Its compact TO 92 package and voltage controlled operation make it suitable for logic switching, signal control and general electronic circuits.

Key Features -

• N Channel enhancement mode MOSFET

• Drain source voltage rating of 60V

• Suitable for low power switching

• High input impedance

• Low gate drive current requirement

• Fast switching capability

• Compact TO 92 through hole package

• Suitable for logic and signal control circuits

Specifications -

• Part Number: 2N7000

• Component Type: MOSFET Transistor

• Channel Type: N Channel

• Configuration: Enhancement Mode

• Drain Source Voltage: 60V

• Continuous Drain Current: Up to 200mA

• Gate Source Voltage: ±20V maximum

• Package: TO 92

• Mounting Type: Through Hole

Applications -

• Logic level switching

• Signal switching

• LED control circuits

• Relay driver circuits

• Microcontroller interfacing

• Low power load switching

• Embedded electronics

• General electronic circuits
