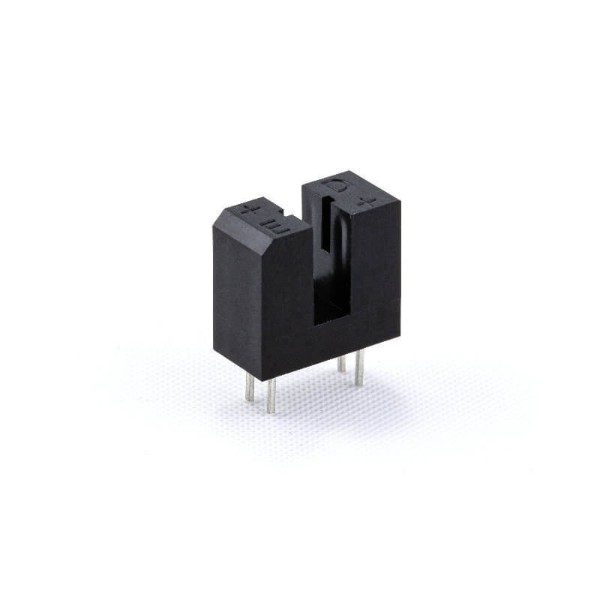

3.1mm Slot Width Slotted Opto Interrupter Sensor (3.1mm Opto Interrupter)
The 3.1mm Slot Width Slotted Opto Interrupter Sensor is a compact optical switch designed for non contact object detection and position sensing. It consists of an infrared emitting diode and a phototransistor placed facing each other with a 3.1mm gap. When an object passes through the slot and interrupts the IR beam, the output changes state, enabling precise detection and switching. This transmissive sensing method ensures high reliability and fast response in electronic systems.
This slotted opto interrupter is widely used in India for embedded systems, industrial electronics, printers, and automation systems. It is valued for its accurate detection, high speed switching, and consistent performance in applications such as encoder feedback, speed sensing, and object counting.
Key Features
- 3.1mm Slot Width: Standard gap for object interruption sensing
- Transmissive Optical Detection: IR beam interruption based sensing
- High Speed Response: Suitable for encoder and RPM detection
- Phototransistor Output: Reliable switching signal
- Compact Through Hole Design: Easy PCB mounting
- Suitable for Industrial Electronics and Embedded Systems
Specifications
- Sensor Type: Slotted opto interrupter
- Slot Width: 3.1mm
- Output Type: Phototransistor output
- Forward Current: Up to 30mA typical
- Collector Current: Up to 20mA
- Collector Emitter Voltage: Up to 30V to 70V range
- Response Time: Fast microsecond level switching
- Mounting Type: Through hole
- Package Type: Slotted optical sensor module
- Applications: Encoder systems speed sensing position detection object counting industrial electronics embedded systems
Pinout Configuration Sensor Layout
- Anode pin of IR emitter
- Cathode pin of IR emitter
- Collector pin of phototransistor
- Emitter pin of phototransistor
