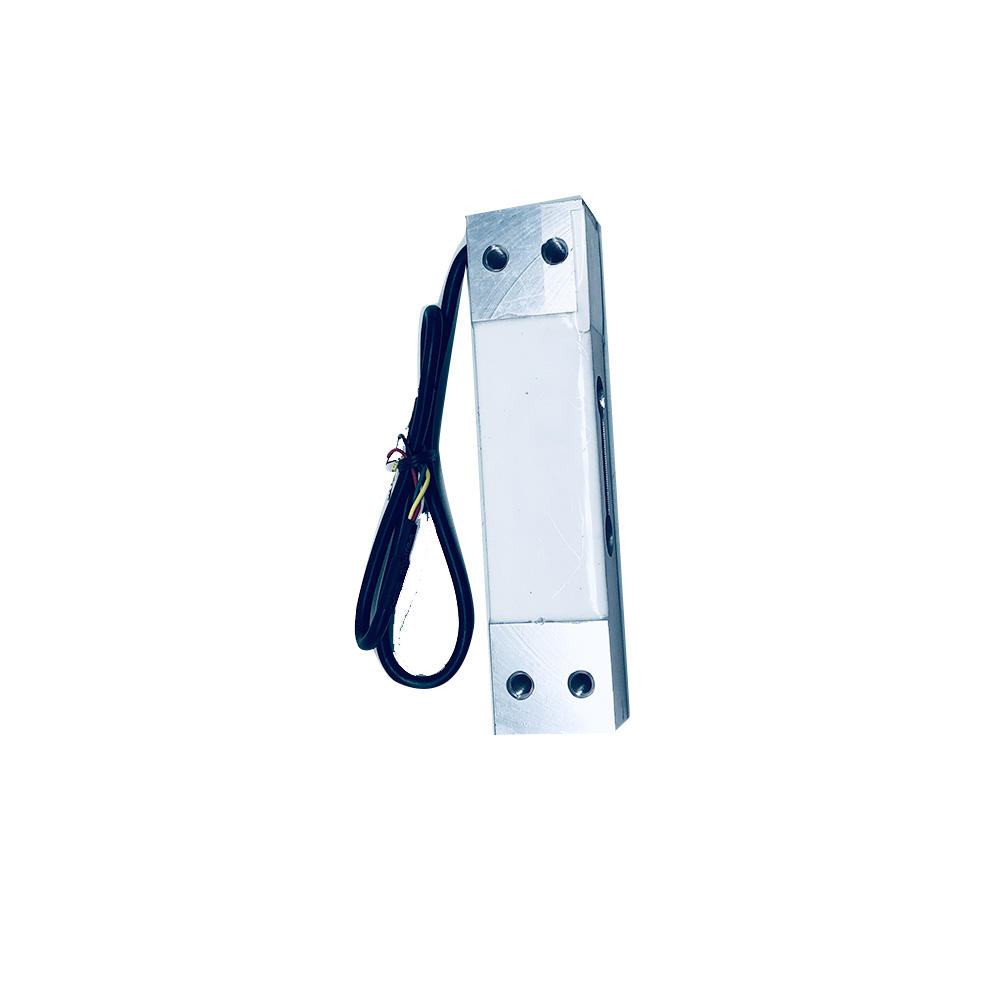

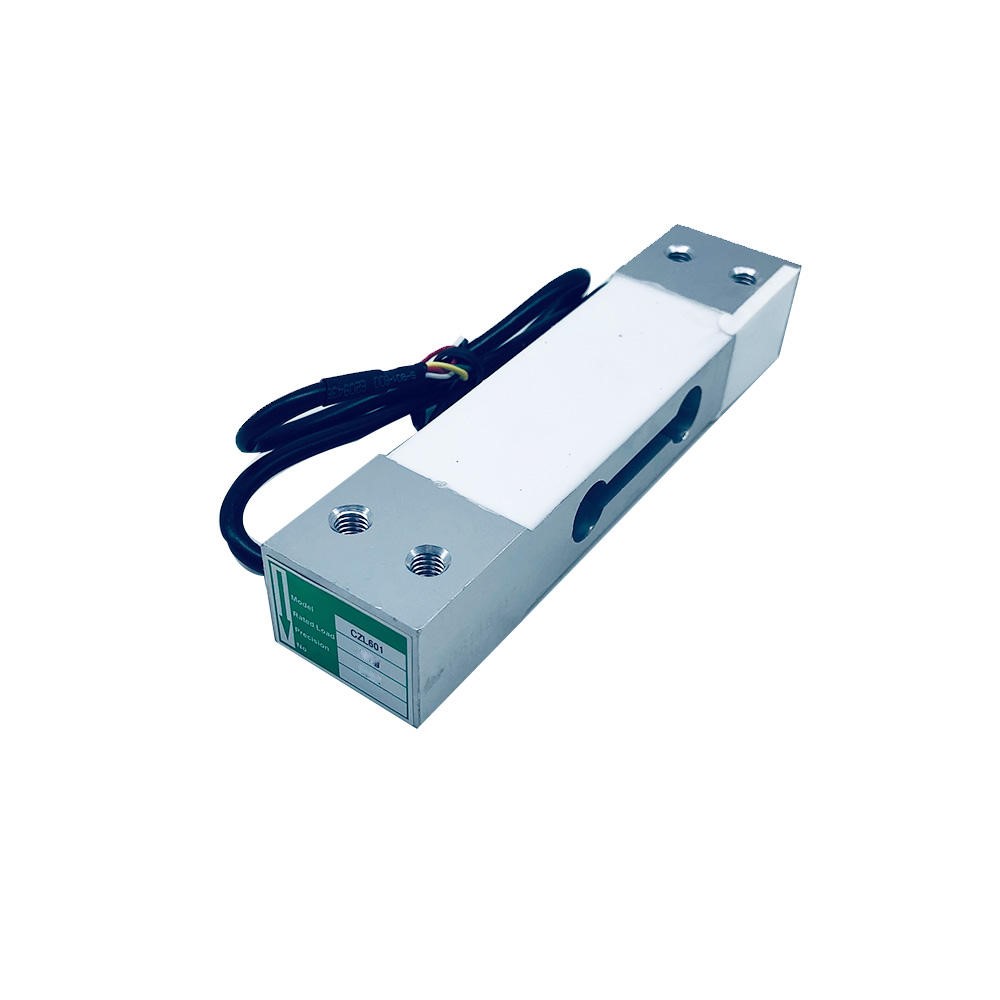

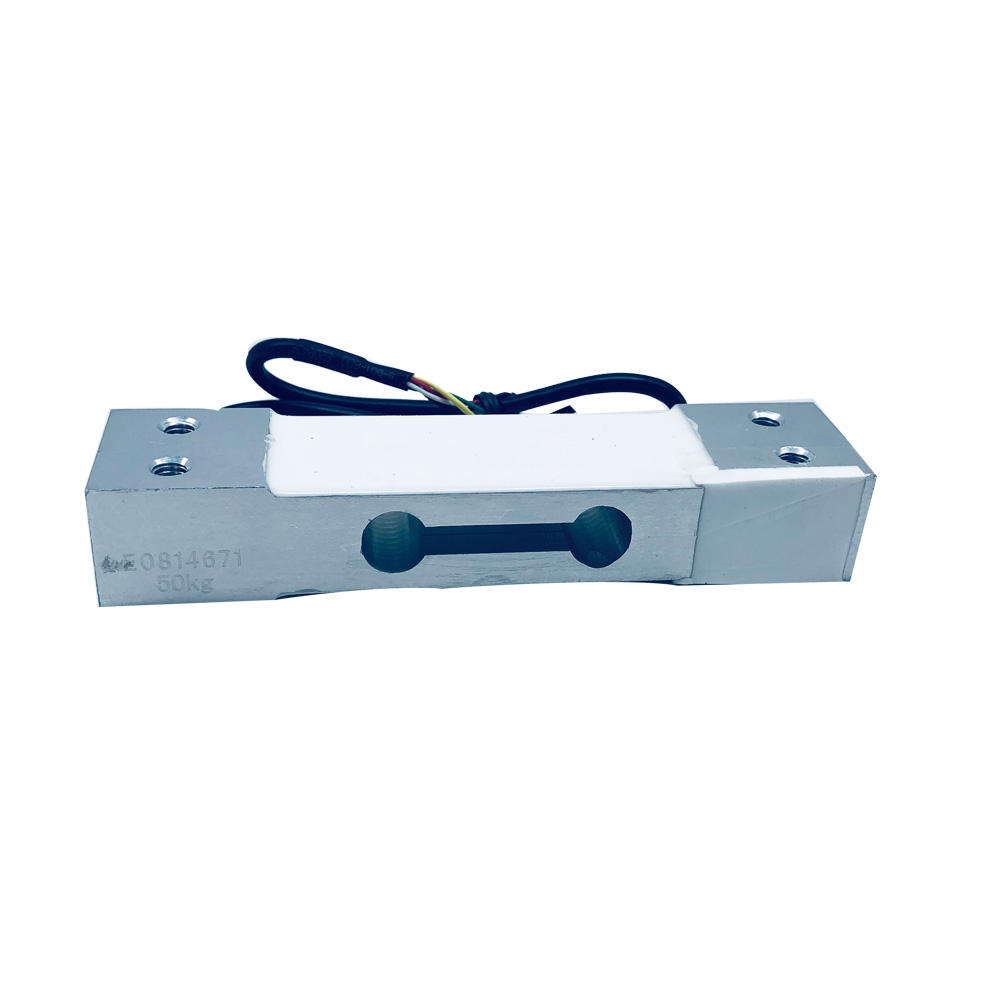

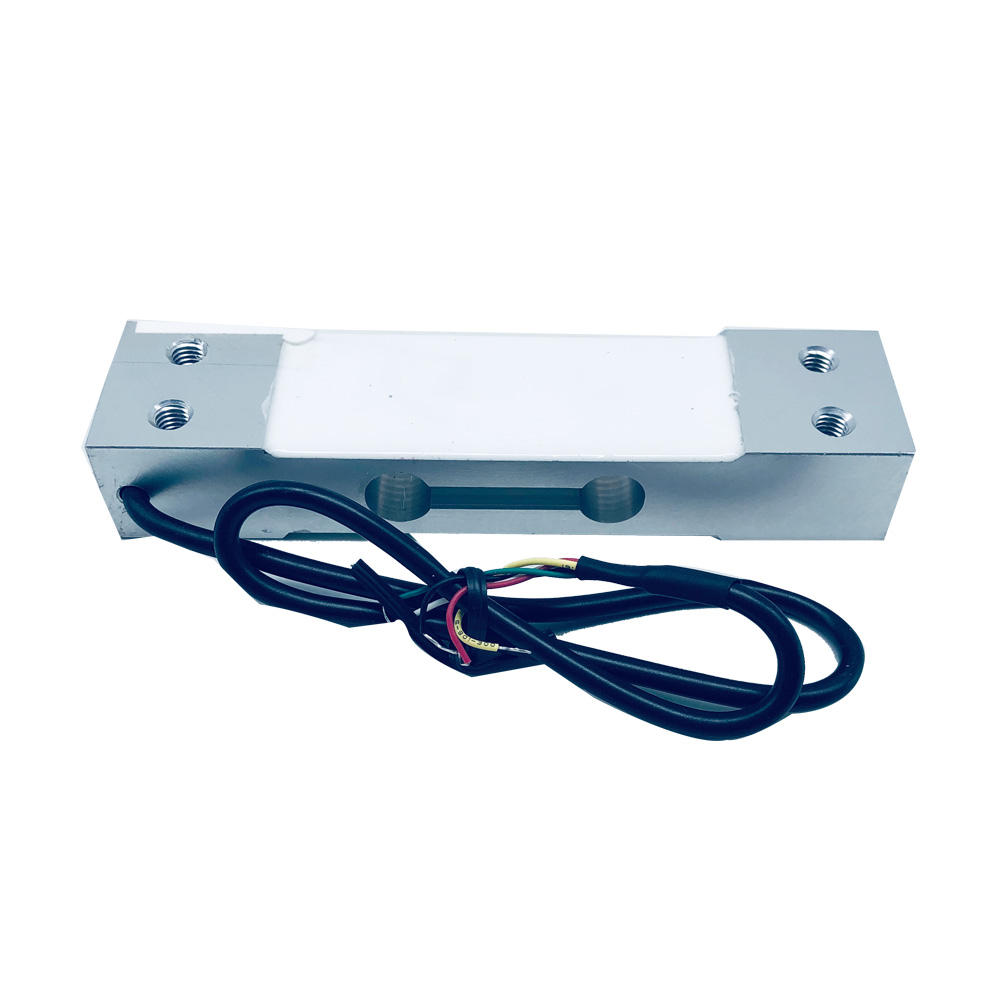

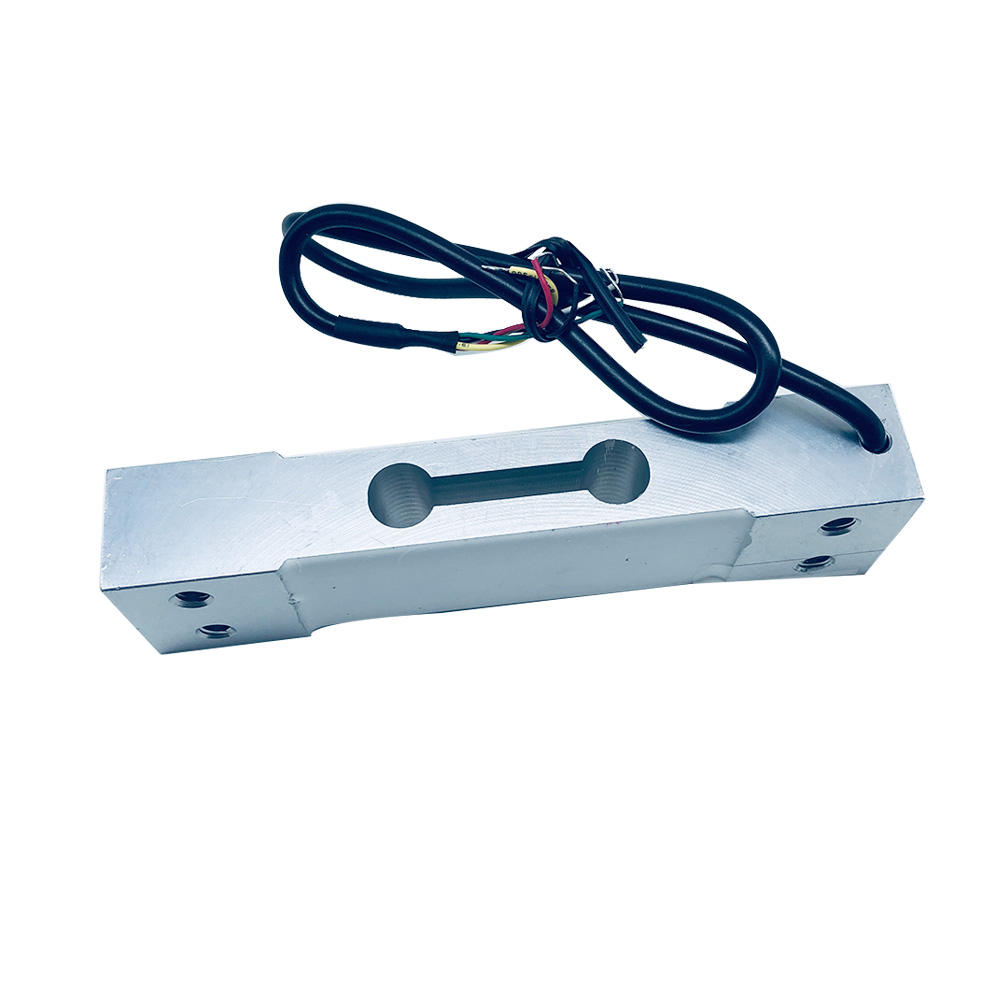

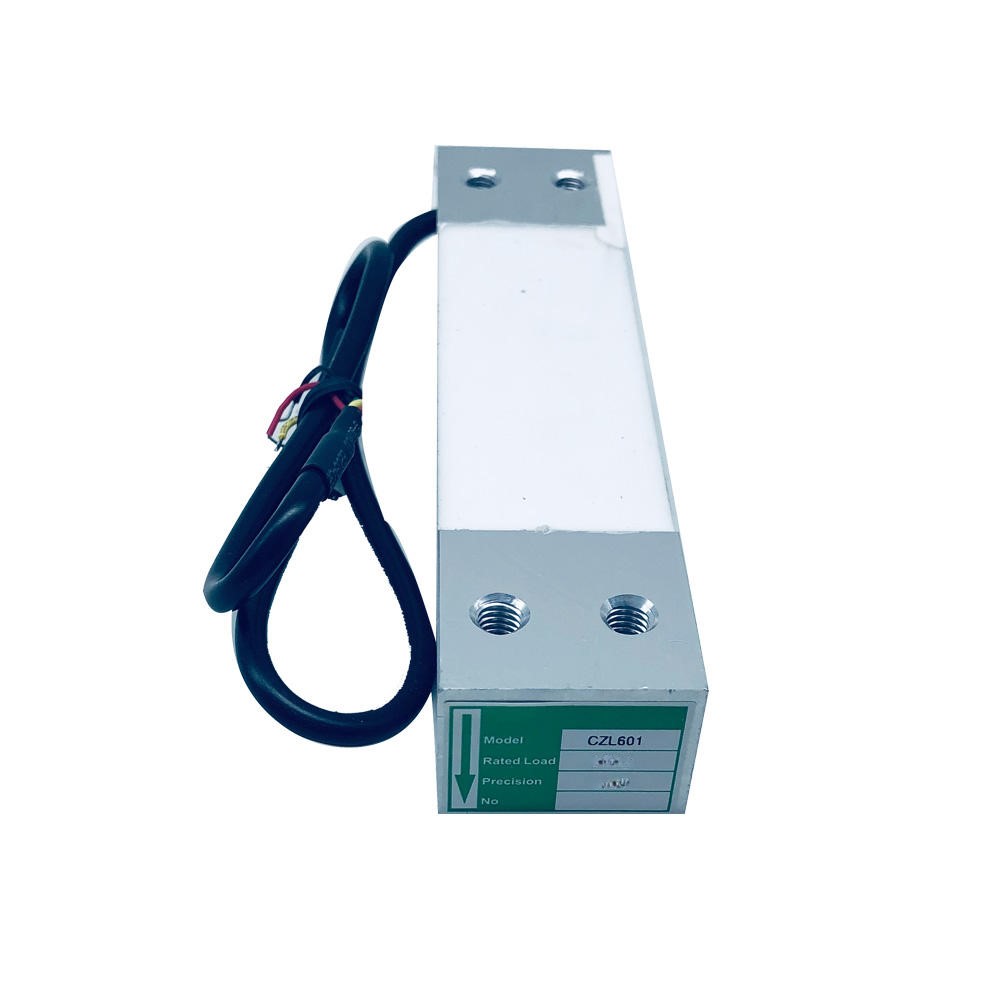

CZL601 10Kg Load Cell Weight Sensor (Aluminium Strain Gauge Load Cell, Weighing Scale Sensor)

The CZL601 10Kg Load Cell is a precision strain gauge-based weight sensor designed for electronic weighing scales, force measurement systems, and industrial automation applications. It converts applied load into a proportional electrical signal, enabling accurate weight and force measurement. Constructed from durable aluminium alloy, the sensor offers excellent stability, repeatability, and long-term reliability.

Key Features -

• 10Kg rated load capacity

• High-accuracy strain gauge sensor

• Aluminium alloy construction

• Compact and lightweight design

• Low creep characteristics

• High repeatability and stability

• Compatible with HX711 and ADC modules

Specifications -

• Product type - Load Cell Weight Sensor

• Model - CZL601

• Sensor type - Strain Gauge Load Cell

• Rated capacity - 10Kg

• Output sensitivity - Approx. 1.0mV/V Typical

• Input resistance - Approx. 1000 Ohm

• Output resistance - Approx. 1000 Ohm

• Excitation voltage - Approx. 5V to 10V

• Material - Aluminium Alloy

• Application - Weight and force measurement

Pinout Configuration -

• Red - Excitation Positive (E+)

• Black - Excitation Negative (E-)

• White - Signal Negative (S-)

• Green - Signal Positive (S+)

Applications -

• Electronic weighing scales

• Kitchen weighing machines

• Tabletop weighing systems

• Industrial measurement equipment

• Force sensing applications

• Automation systems

• Load monitoring projects
