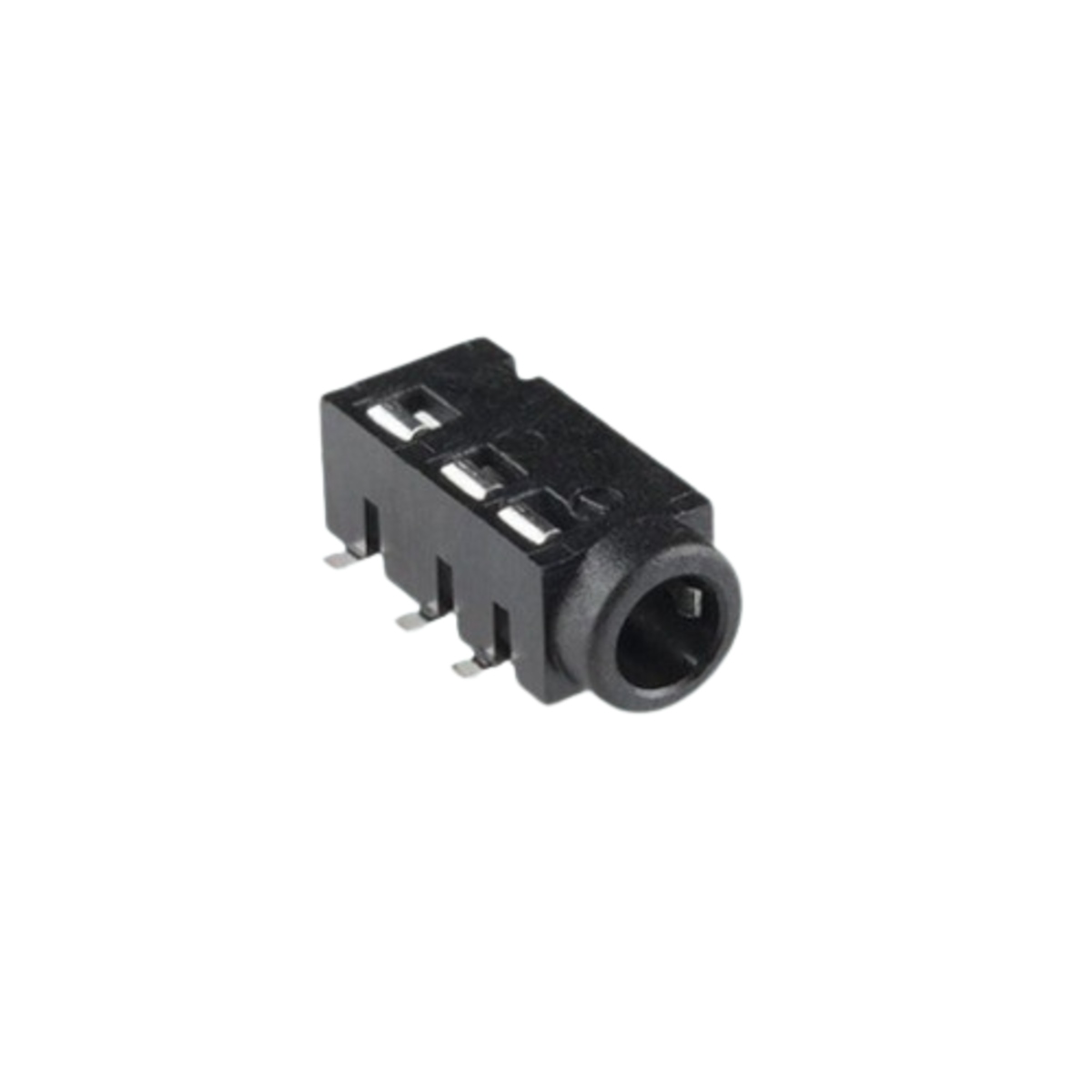

3.5mm TRRS Audio Jack SMD (4-Pole Stereo Headphone Connector)

The 3.5mm TRRS Audio Jack is a compact surface-mount audio connector designed for connecting compatible 3.5mm TRRS plugs to electronic devices. Its four-contact configuration can support stereo audio along with an additional microphone or control connection, depending on the wiring standard. The SMD construction is suitable for compact PCB-based audio and electronic equipment.

Key Features -

• 3.5mm audio jack interface

• TRRS configuration with four electrical contacts

• Surface-mount design for PCB assembly

• Suitable for stereo audio connections

• Can support microphone or control signals depending on wiring

• Compact design for space-constrained electronic equipment

• Suitable for PCB-based audio applications

Specifications -

• Product Type = TRRS Audio Jack

• Connector Size = 3.5mm

• Configuration = TRRS, 4 Contact

• Mounting Type = Surface Mount

• Contact Type = Audio and Signal

• Application = Audio and Electronic Equipment

• Connector Type = PCB Mount

• Polarity = Application dependent

Applications -

• Headphone and earphone interfaces

• Audio equipment

• Portable electronic devices

• Mobile and embedded audio systems

• Development boards

• Consumer electronics

• PCB-based audio circuits
